364 SERVICING AND MAINTENANCE

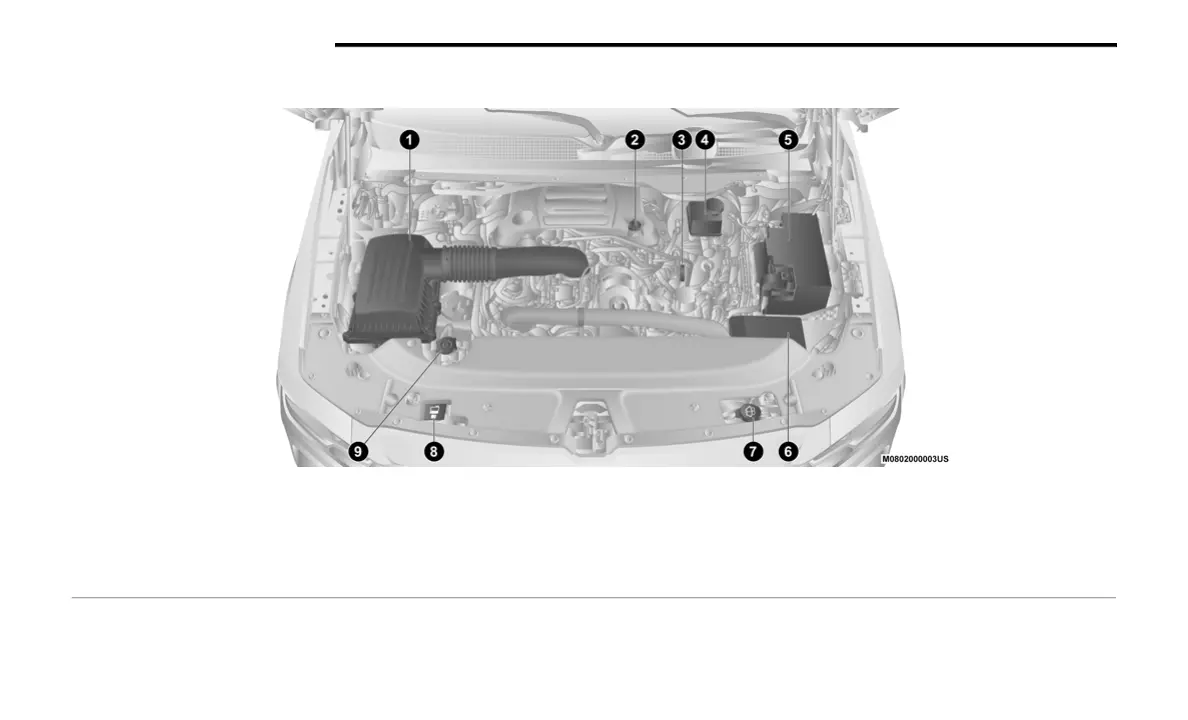

5.7L Engine Without Stop/Start

1 — Air Cleaner Filter 6 — Power Distribution Center (Fuses)

2 — Engine Oil Fill 7 — Washer Fluid Reservoir

3 — Engine Oil Dipstick 8 — Engine Coolant Reservoir

4 — Brake Fluid Reservoir 9 — Engine Coolant Pressure Cap

5 — Battery
