© 2005 SANDVIK TAMROCK CORP.Page 10 - OPERATION
Product introduction S 83 STD
3.4 MAIN PARTS

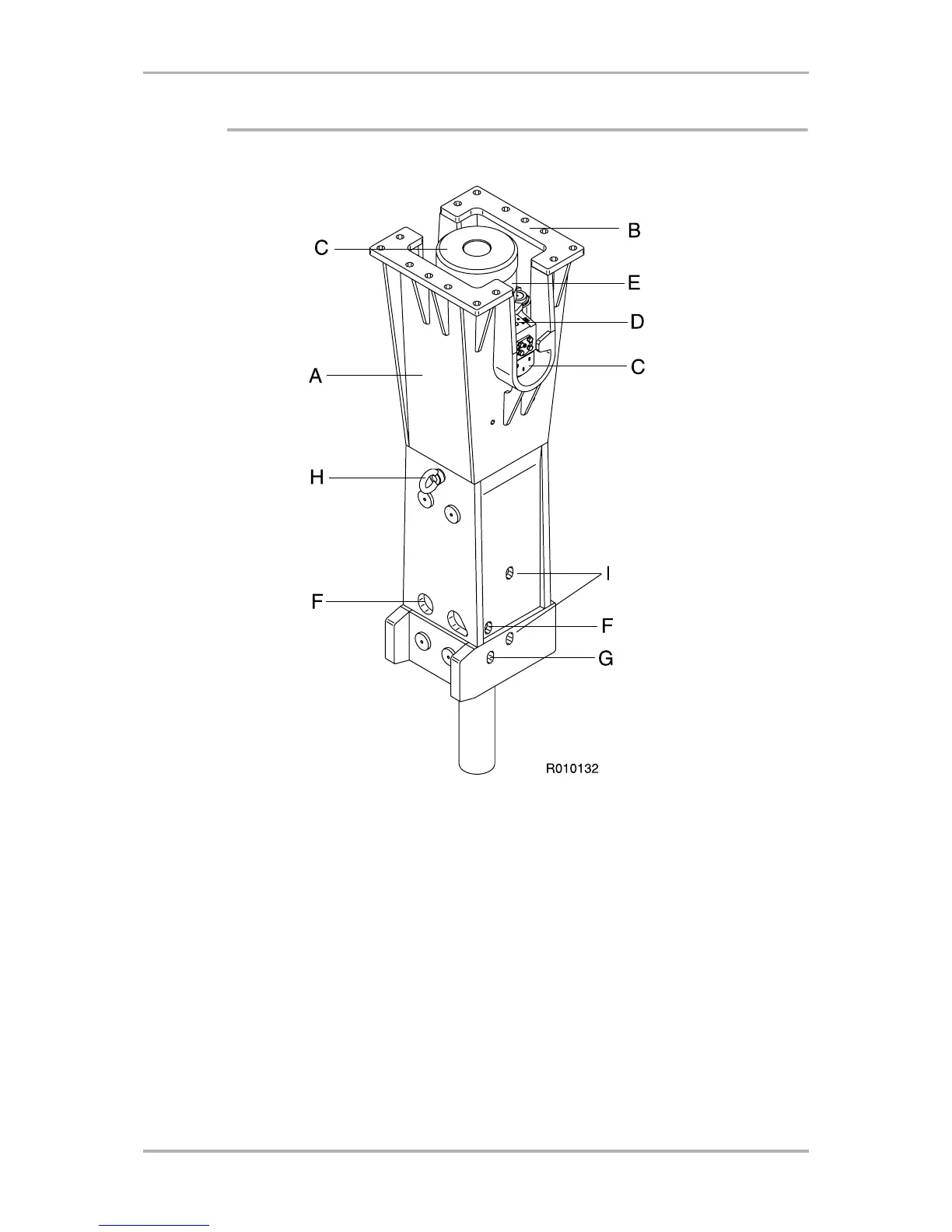

The main parts of the hammer are shown below.
A. Housing
B. Mounting flange
C. Vibration dampening elements
D. Hose connections (pressure and return lines)
E. Pressure accumulator
F. Tool retaining mechanism
G. Tool bushing retaining mechanism
H. Lifting eye
I. Grease nipples
