MAINTENANCE - Page 45© 2005 SANDVIK TAMROCK CORP.
Removal of toolS 83 STD
INSTALLATION OF TOOL
1. Clean all parts carefully.
2. Measure the tool diameter (X) from the area marked on the illustration. Replace
tool if necessary.
3. Check lower tool bushing for wear. See “Lower tool bushing” on page 46.
4. Check tool seal. Replace if necessary.
5. Clean and coat tool and retaining pins with grease.
6. Install tool and align the grooves of the tool with the pin bores.
7. Install retaining pins.
8. Push locking pin so far that pin can be installed.
9. Install pin.
10. Check that pin is secured by locking pin.

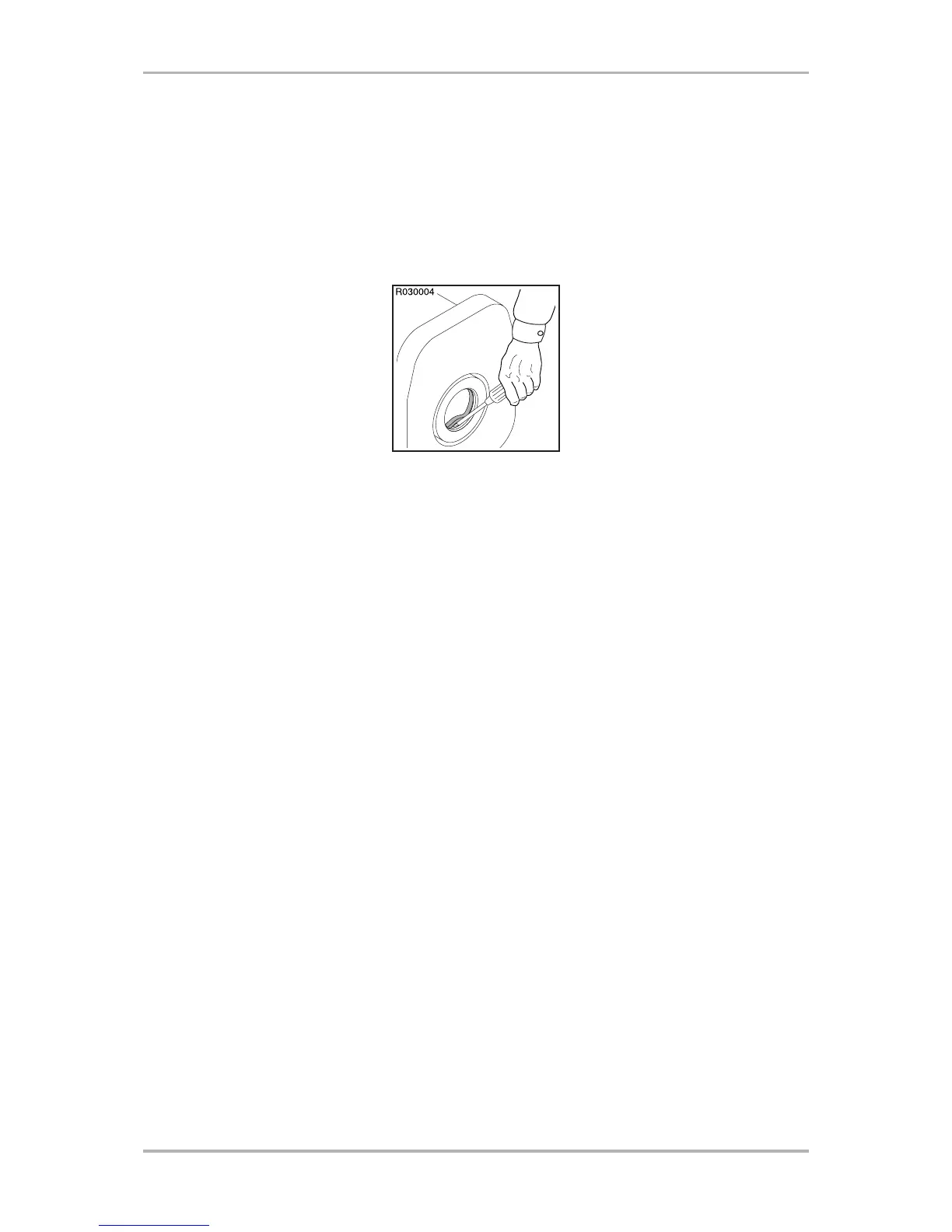

11. Install rubber plugs into their places.
12. Slide the rubber plate back to original position.
