Removal of toolS 83 STD
2. REMOVAL OF TOOL

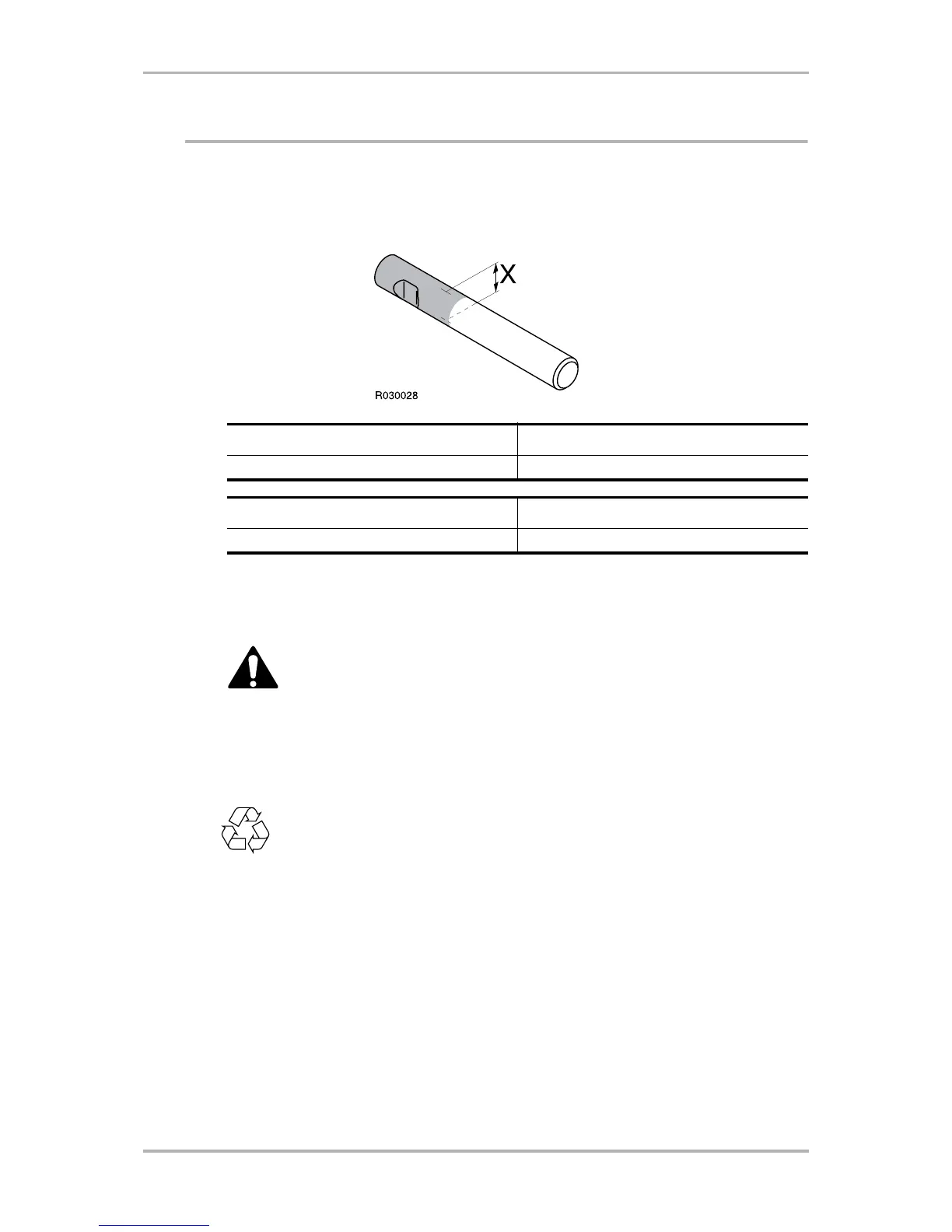

WEAR LIMITS AND LUBRICANTS FOR TOOL REMOVAL
REMOVAL OF TOOL
Warning! The hydraulic pressure inside the hammer must always be released
before removing the tool. After operating the hammer, wait 10 minutes for oil
pressure to drop inside hammer.
Warning! Hot tool can cause severe injuries.
Do not throw used hammer tool away at job site. Used tools can be recycled by
delivering them to an authorized scrap metal collection facility.
1. Set the hammer on level ground.
2. Make sure the carrier's transmission is in neutral and the parking brake is en-
gaged.
3. Stop the carrier engine.
4. Push the rubber plate upwards so that the pin holes are accessible.
5. Remove rubber plugs.
6. Push locking pin so far that retaining pin can be removed.
Item Wear limit
Tool diameter (worn out) 138 mm (5.43 in)
Item Lubricant
Tool and tool retaining pins Tool grease
