Hammer tool greasingS 83 STD

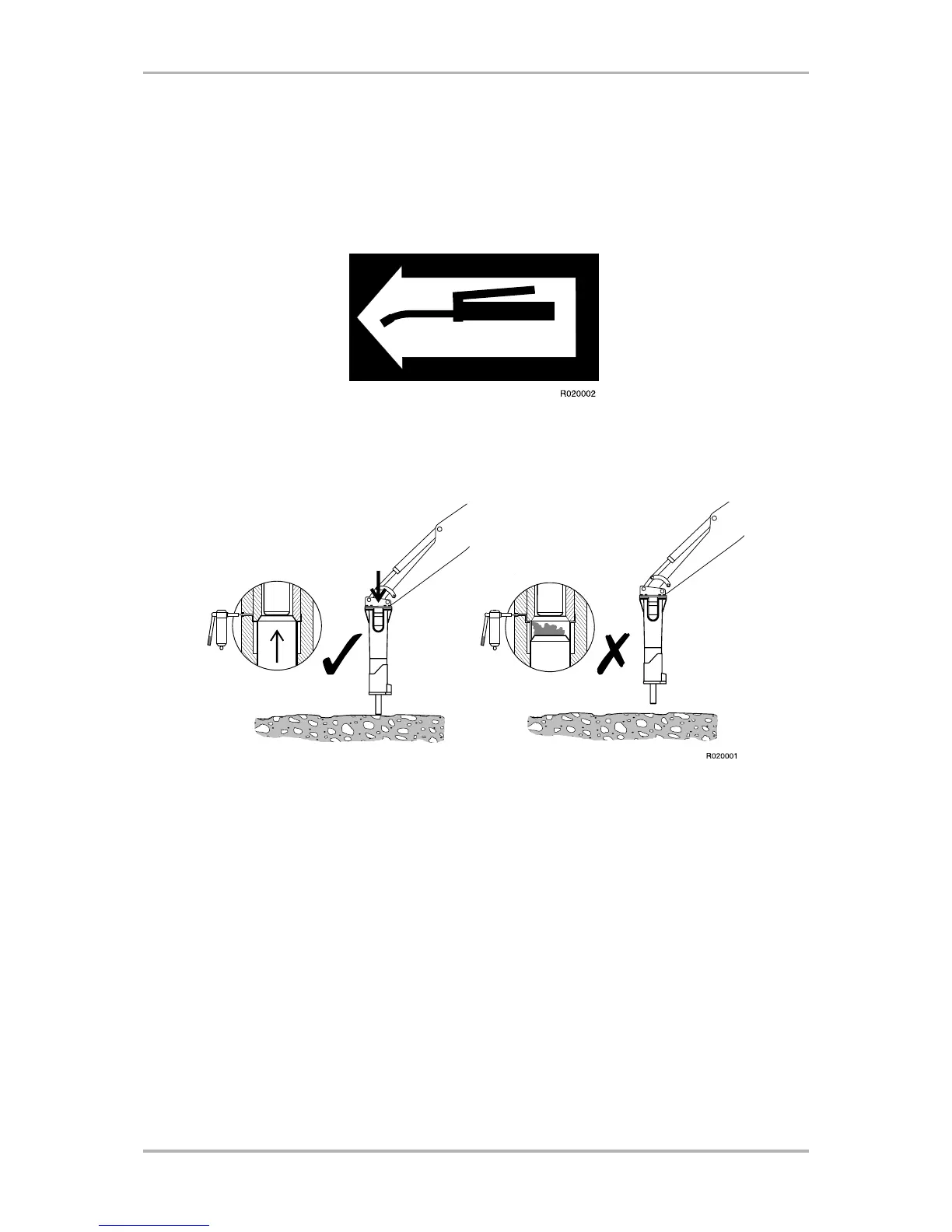

CORRECT GREASING
1. Position the hammer standing upright resting on the tool on firm surface.
2. Stop carrier engine and wait 10 minutes for oil pressure to drop inside hammer.
3. Apply tool grease from grease gun to greasing points marked with the following
sticker.
Note: The hammer must stand upright resting on the tool to ensure that the grease
will penetrate downwards between the tool and the bushing.
Do not fill the space between the piston and the tool with grease. A lower piston seal
failure can result and the hammer will subsequently leak oil.
