TRAKFAST REPAIR MANUAL
19
Rev. 09/07
TOOL DISASSEMBLY

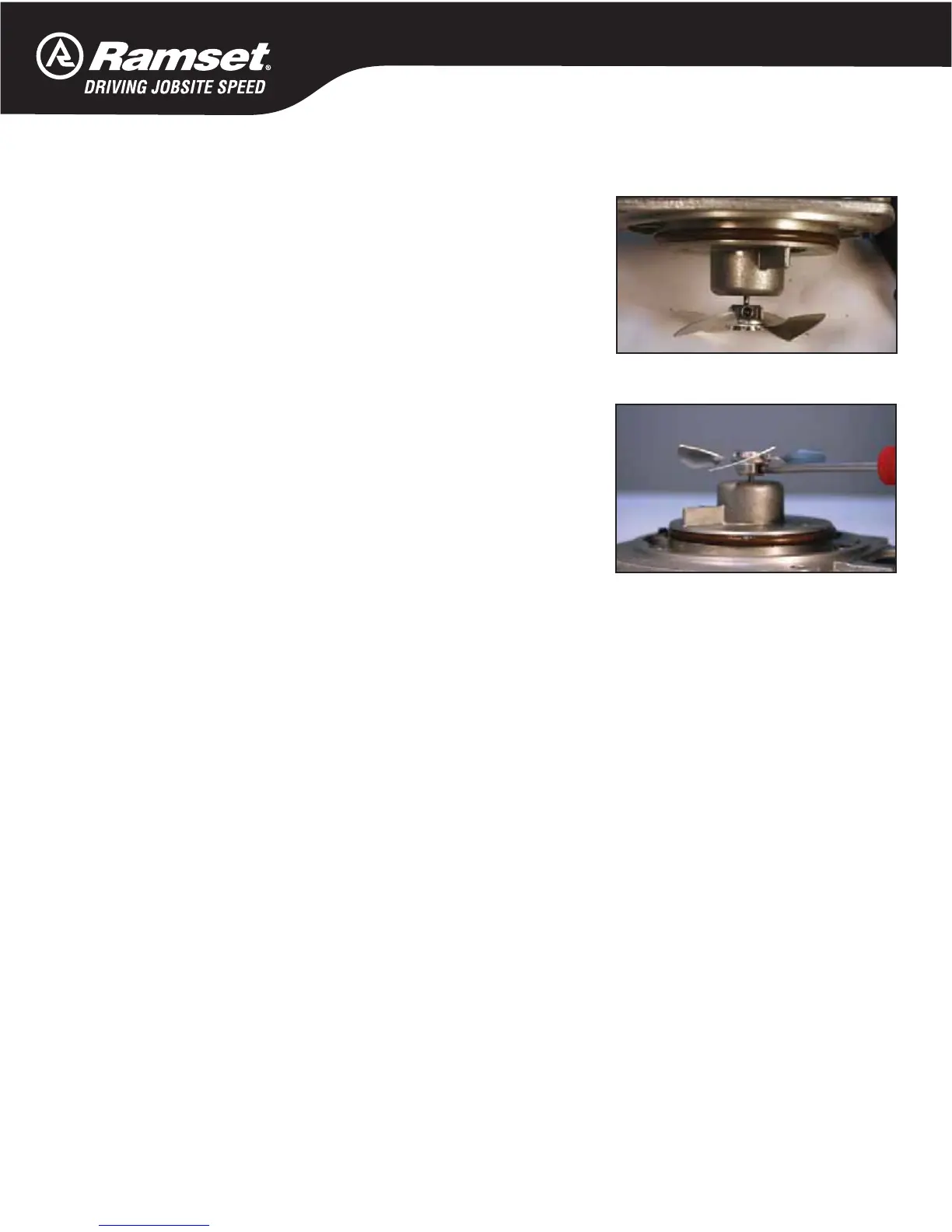

Make sure the “flat” side of the shaft is where the Set Screw on
the Fan Blade will be tightened.
Position the Fan Blade approximately .120” away from the bottom
of the cylinder head. Feeler Gages or an 1/8” drill bit works well as
a spacer.
Carefully place the Fan Blade until it is flat and leveled over the Fan
Blade Spacer.
Tighten Set Screw no more than 8 to 10 in-lbs of torque.
Motor/Cylinder Head Assembly (cont’d)
