TRAKFAST REPAIR MANUAL
20
Rev. 09/07
TOOL DISASSEMBLY

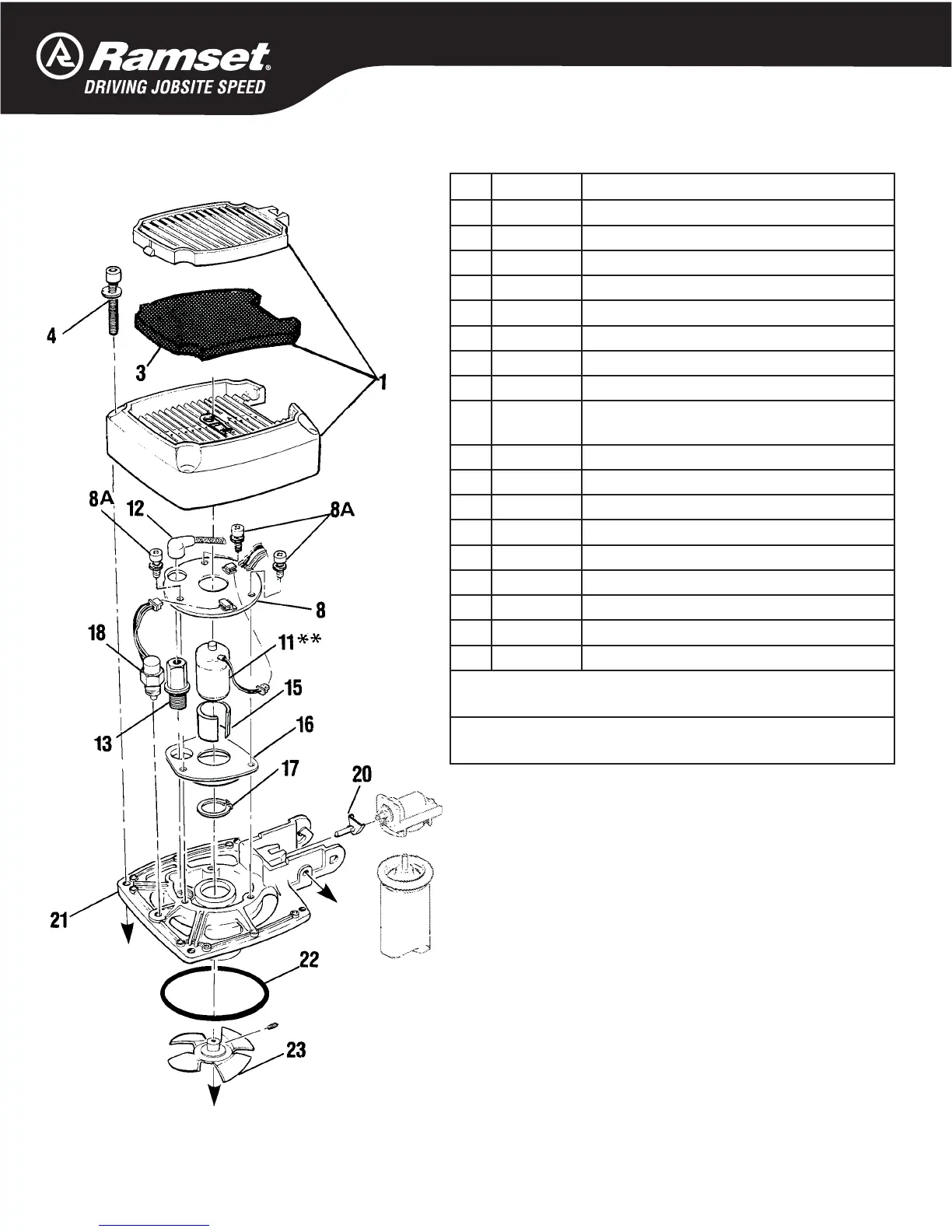

CYLINDER HEAD ASSEMBLY
KEY PART NO. DESCRIPTION
1 401365 Cap, grill & filter assembly
3 7505018 Foam filter only
4 901065A Screw kit, #10-24 x 1-1/4” Sems (pkg. 4)
8 900271 P.C board assembly
8A 7405090 P.C board screw & washer, #8-32 x 1/2” (pkg. 3)
11 900525A Fan motor kit**
12 7505166 MSU spark wire & boot only
12A 404397 Spark plug boot only (for 401341 plug)
13 7505164 Black spark plug (with O-Ring)
(for tools after serial no. 39809144)
13A 401341 Red spark plug (with 0-Ring)
15 401356 Motor sleeve
16 900470 Motor mount
17 401355 Motor retaining ring
18 404601 Head switch assembly
20 401340 Red stem adaptor
21 401336 Cylinder head
22 403992 O-Ring (cylinder head)
23 403167 Fan blade (with set screw)
Note: It is important to use all kit parts when replacing the fan
motor. Failure to do so will greatly reduce the life of the motor.
** The Fan Motor Kit includes: Fan Motor, Motor Mount, Motor
Sleeve, Snap Ring and Fan Blade.
