TRAKFAST REPAIR MANUAL
29
Rev. 09/07

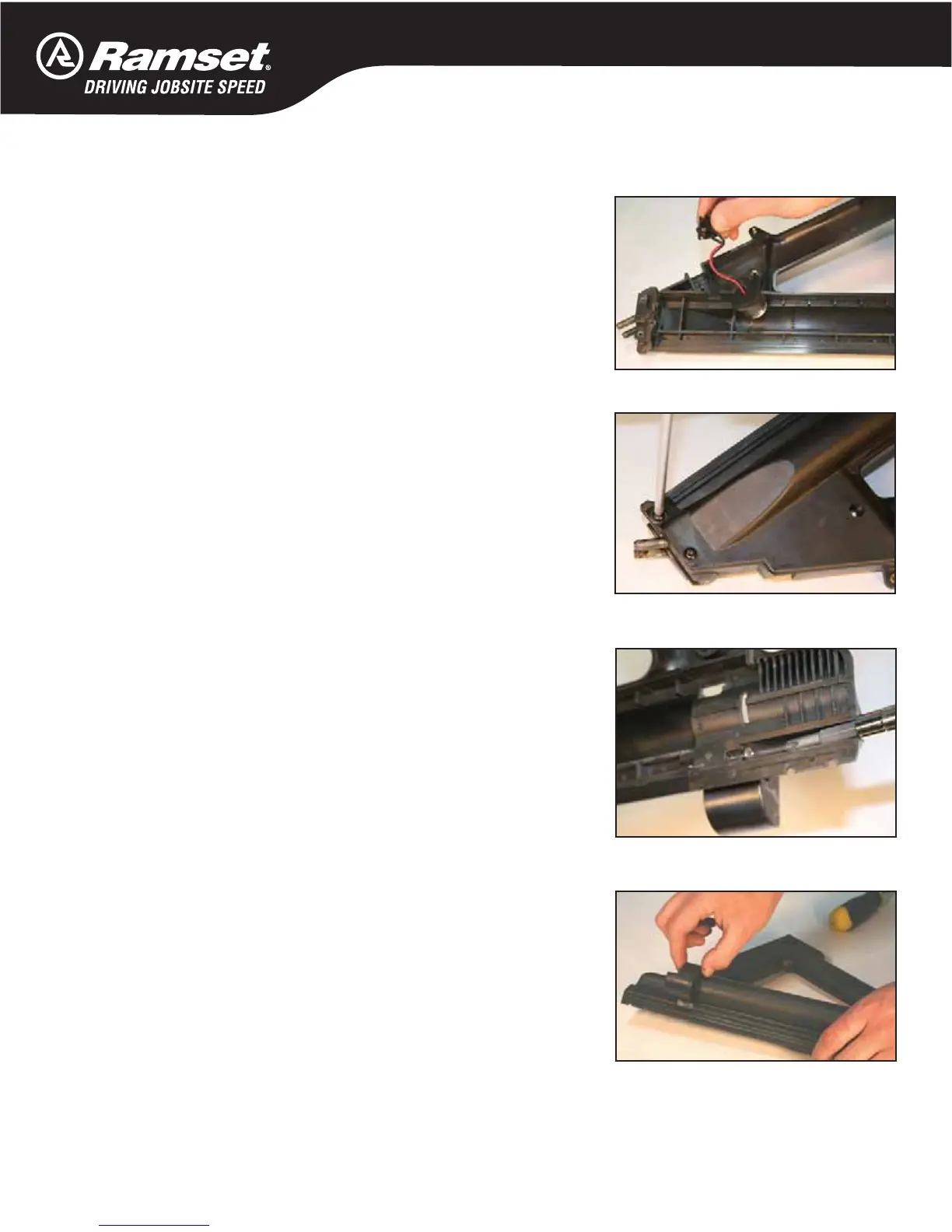

TOOL DISASSEMBLY
Magazine Assembly (cont’d)
Remove Battery Contact (part #7505017).
Inspect Battery Contact for bent or broken terminals. Replace
Contact Assembly if these conditions exist.
Remove Shear Block.
Take out (2) screws (part #7405147).
Shear Block (part #7405145).
Remove Battery Clip screw (part #401423).
Remove Battery Clip (part #401422).
