TRAKFAST REPAIR MANUAL
30
Rev. 09/07

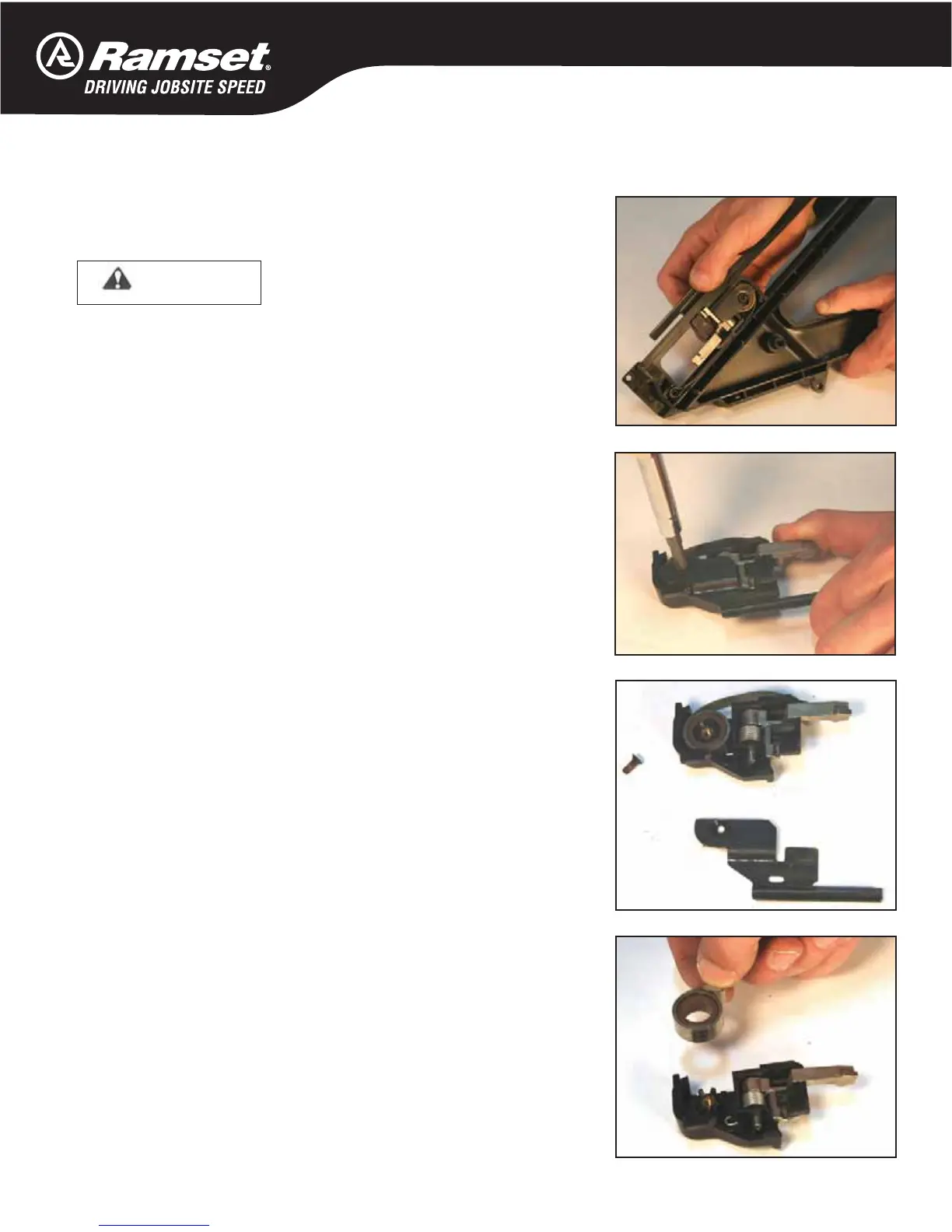

TOOL DISASSEMBLY
Magazine Assembly (cont’d)
Remove Lockout Bracket screw (part #801122).
Remove Lockout Bracket (part #801106).
Remove Carrier Assembly from Magazine half.
Hold Carrier firmly and slide forward to front of Magazine towards
the post and lift Constant Force Spring off post (part #7405168).
CAUTION
Remove Spring and Hub (part #7405169).
