TRAKFAST REPAIR MANUAL
34
Rev. 09/07

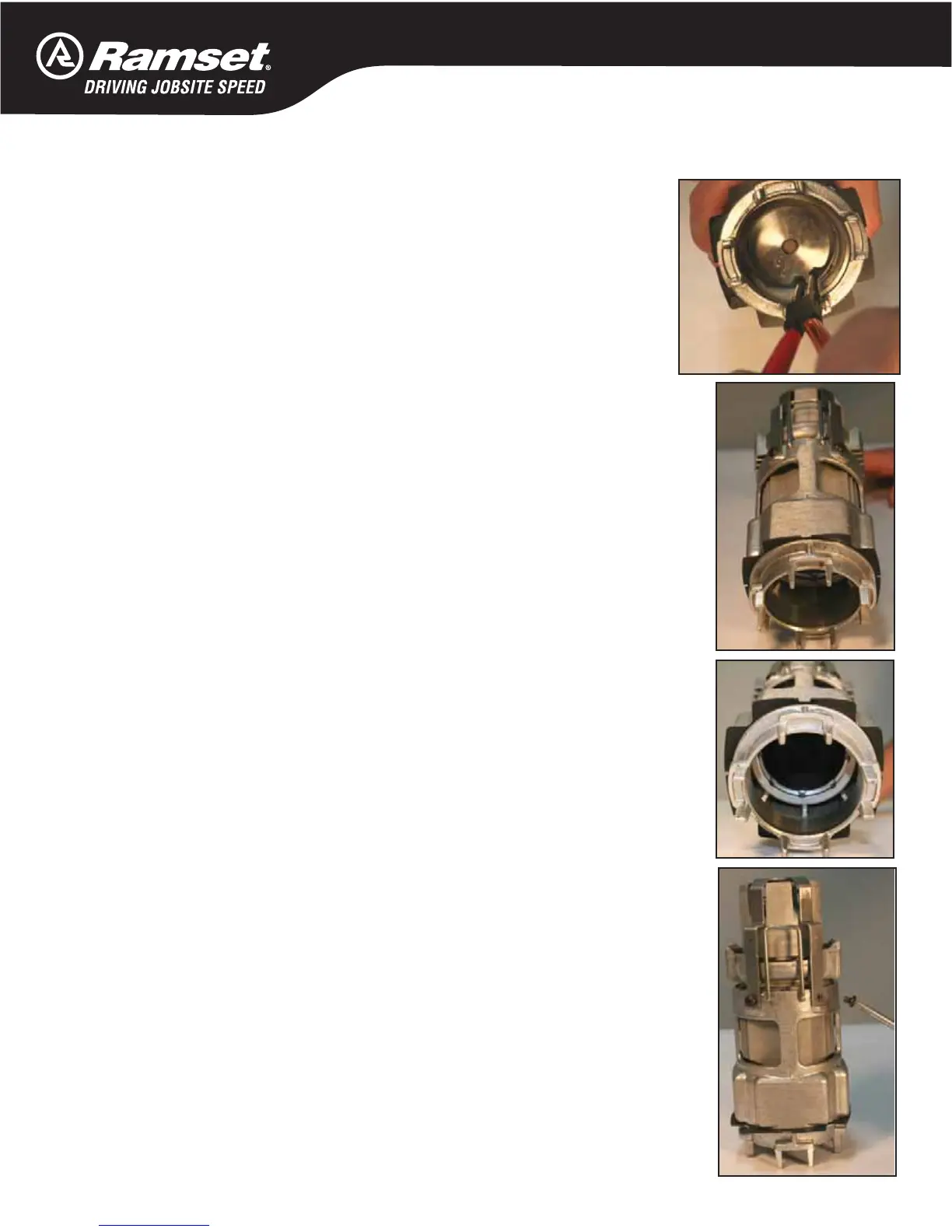

Remove Piston Stop Retaining Ring (part #401328), using Snap
Ring pliers (part #401333).
Make sure when you reassemble that Retaining Ring ends are not
positioned in the vertical notches in the Sleeve.
Slide Piston out of Mid-check Assembly (part #7502000).
Lift off Air Dam (part #401313).
Check position of Air Dam when reassembling.
Note notches in the Air Dam.
TOOL DISASSEMBLY
Housing Assembly (cont’d)
TOOL DISASSEMBLY
Remove (4) Cage screws (part #092769).
To Next Page
