Rane HAL1x - HAL Front and Rear Panels

l
4 IR Remotes
l
8 Mic/Line Inputs
l
8 Line Outputs
l
1 AES3 Stereo Input
l
1 AES3 Stereo Output
l
4 Logic Inputs
l
2 Relay Outputs
HAL3s
The device connections that are possible on a HAL3s are as follows:
l
2 Remote Audio Devices (RADs)
l
2 Digital Remotes (DRs)—Can add up to 2 more by plugging them into the RAD ports
l
2 Mic/Line-Plus Inputs
l
6 Line Outputs
l
4 Logic Inputs
HAL4
The device connections that are possible on a HAL4 are as follows:
l
1 Digital Remote (DR)
l
2 Mic/Line-Plus Inputs
l
2 Line Outputs
HAL Front and Rear Panels
This section includes front and rear panel graphics for all current HAL models and descriptions for each major area
on the panels.

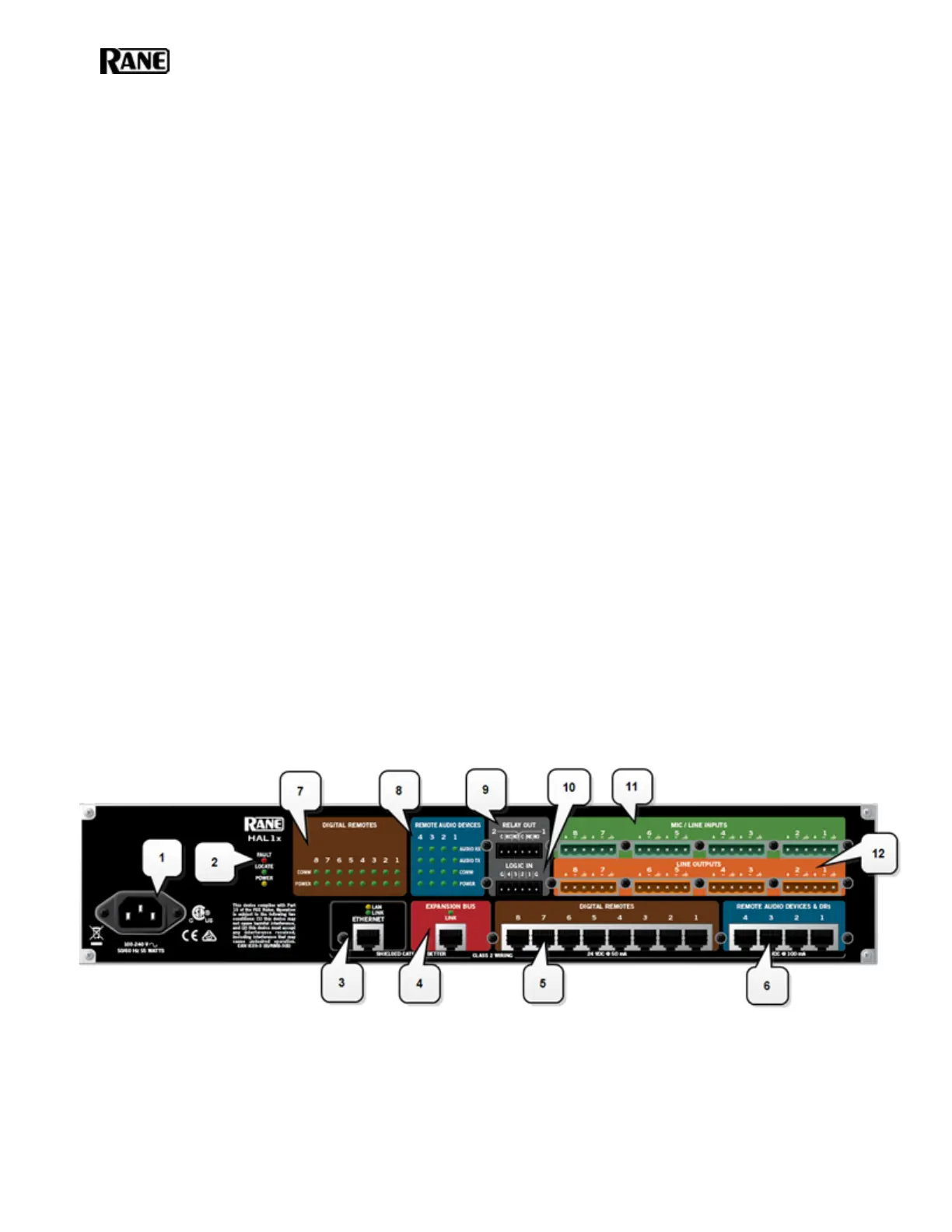

Rear Panel Description
HAL SYSTEM INSTALL GUIDE
14
