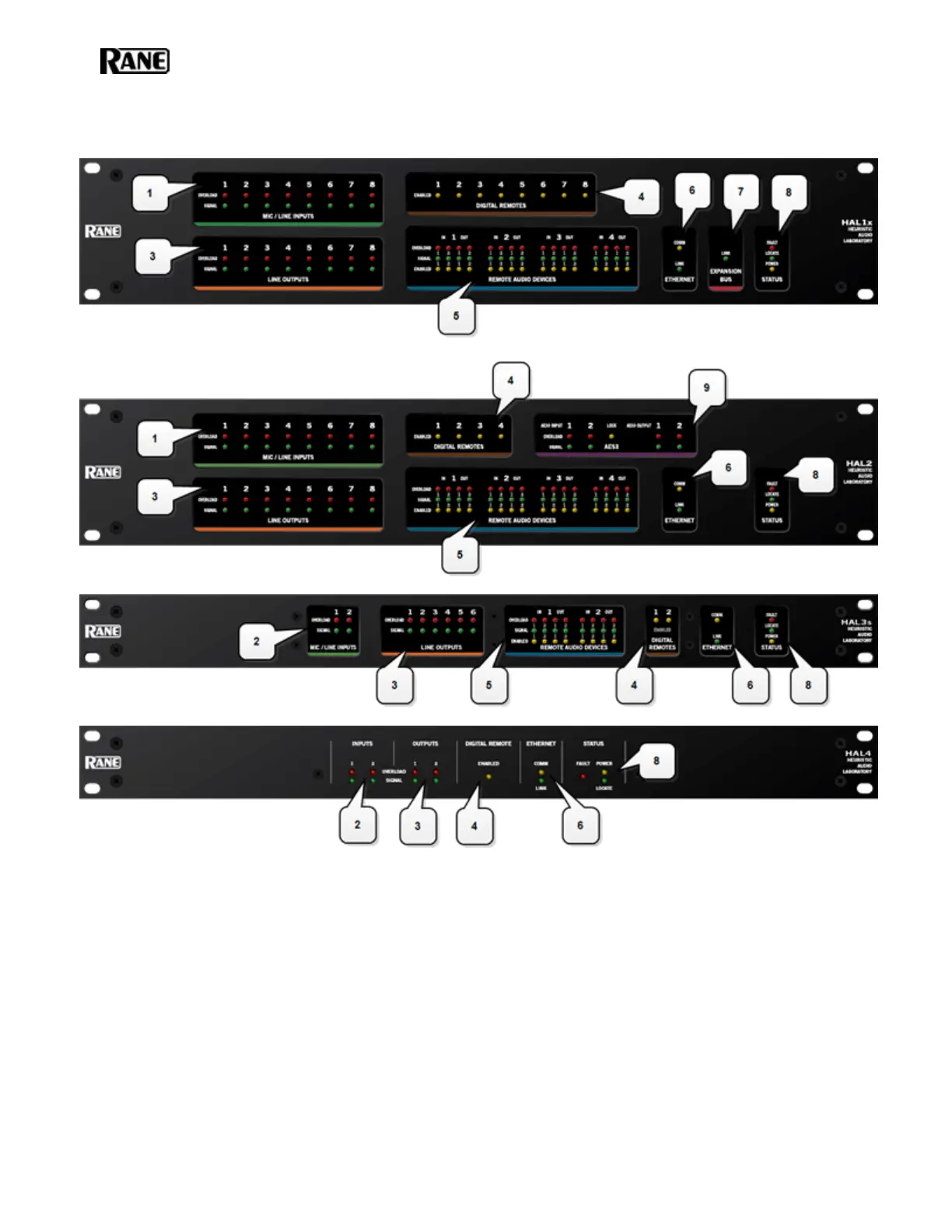

Front Panel Description
1. Mic/Line Input LEDs
Provides status information about mic/line analog inputs connected to the HAL. The numbers correspond
to the mic/line input ports on the rear panel.
These LEDs provide information on the following:
l
Overload LED (red) – indicates that the mic/line input is experiencing a signal overload
l
Signal LED (green) – indicates the presence of an audio signal on the mic/line input
2. Mic/Line-Plus Input LEDs
HAL SYSTEM INSTALL GUIDE
18
