Rane HAL1x - Page 41

l
Flexible Inputs
o
Two universal Mic/Line/Line-Plus Inputs
n
Rear panel Euro connectors
n
Configure for: Dynamic Mic, Condenser Mic with 24 V phantom power, Unbalanced L+R
Mono or Balanced Line
o
Aux Input via mini TRS jack
n
End user accessible input
n
Configure for Mono or Stereo Input
n
Read-only Logic indicates insertion of mini TRS
l
Flexible Outputs
o
Two balanced line-level outputs
n
Rear panel Euro connectors
n
Line Mute control
o
Headphone output via mini TRS jack
n
End user accessible
n
Read-only Logic indicates insertion of mini TRS
n
Headphone Mute control
o
Dual Class-D amplifier
n
1X8 watts into 8 ohms in Single channel mode
n
2X4 watts into 8 ohms in Dual channel mode
n
Integrated power limiter
n
Amp Mute control
l
Logic I/O
o
Rear panel Euro connectors
n
Three Logic inputs
o
Three Logic outputs
n
Directly drive LEDs with up to 5 mA
n
Open collector output accommodates +24 volts at 0.5 A
l
DR3-style remote control capable of simultaneously supporting a mix of Level, Selector, Toggle and Com-
mand controls on a higher resolution color display.
l

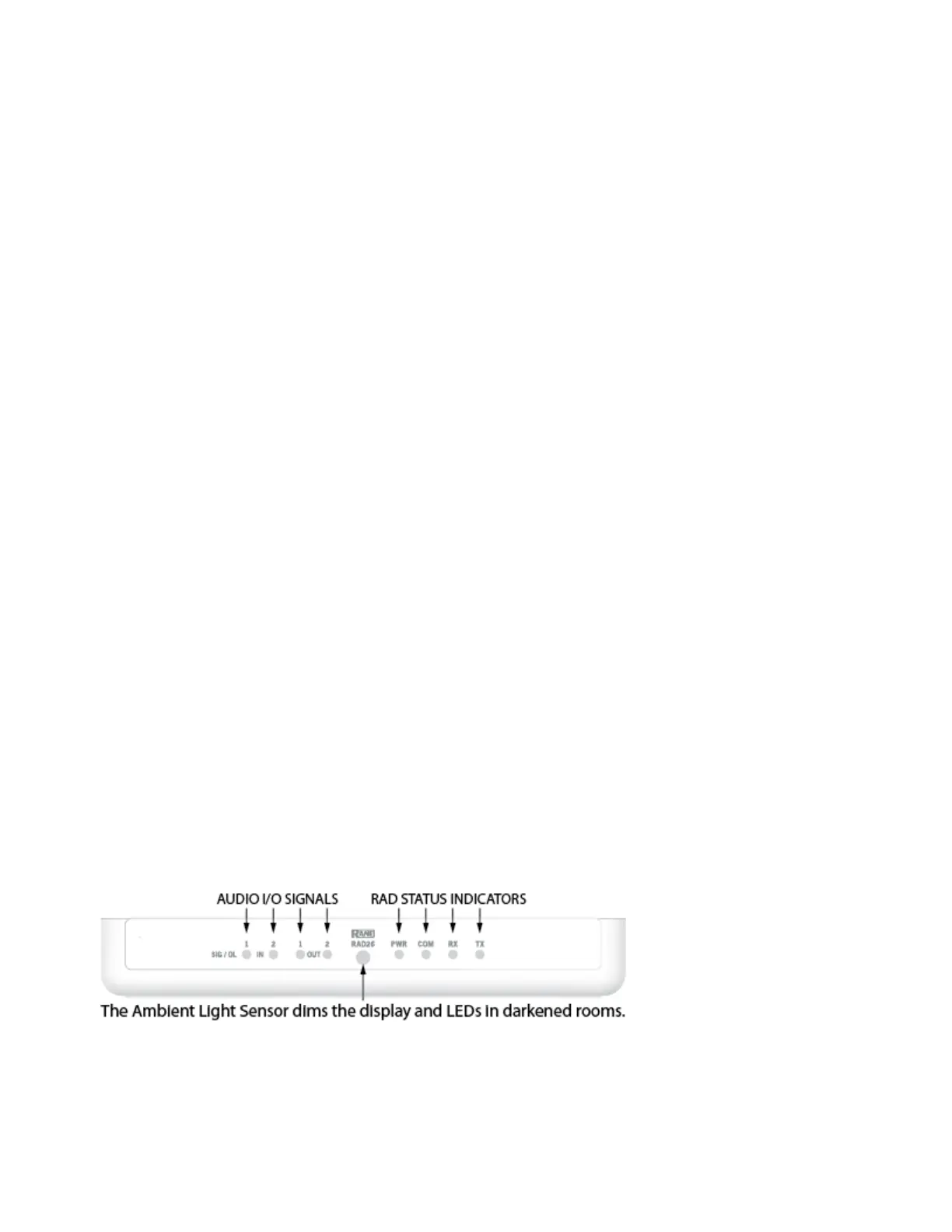

Signal/Overload & infrastructure Diagnostic Indicators on Top as show in Figure-2 below
Connection Diagram
The RAD26 is connected to a HAL in a similar way to how the DR6 is connected. It requires the included Remote
CHAPTER 2: Hardware Component Details
35
