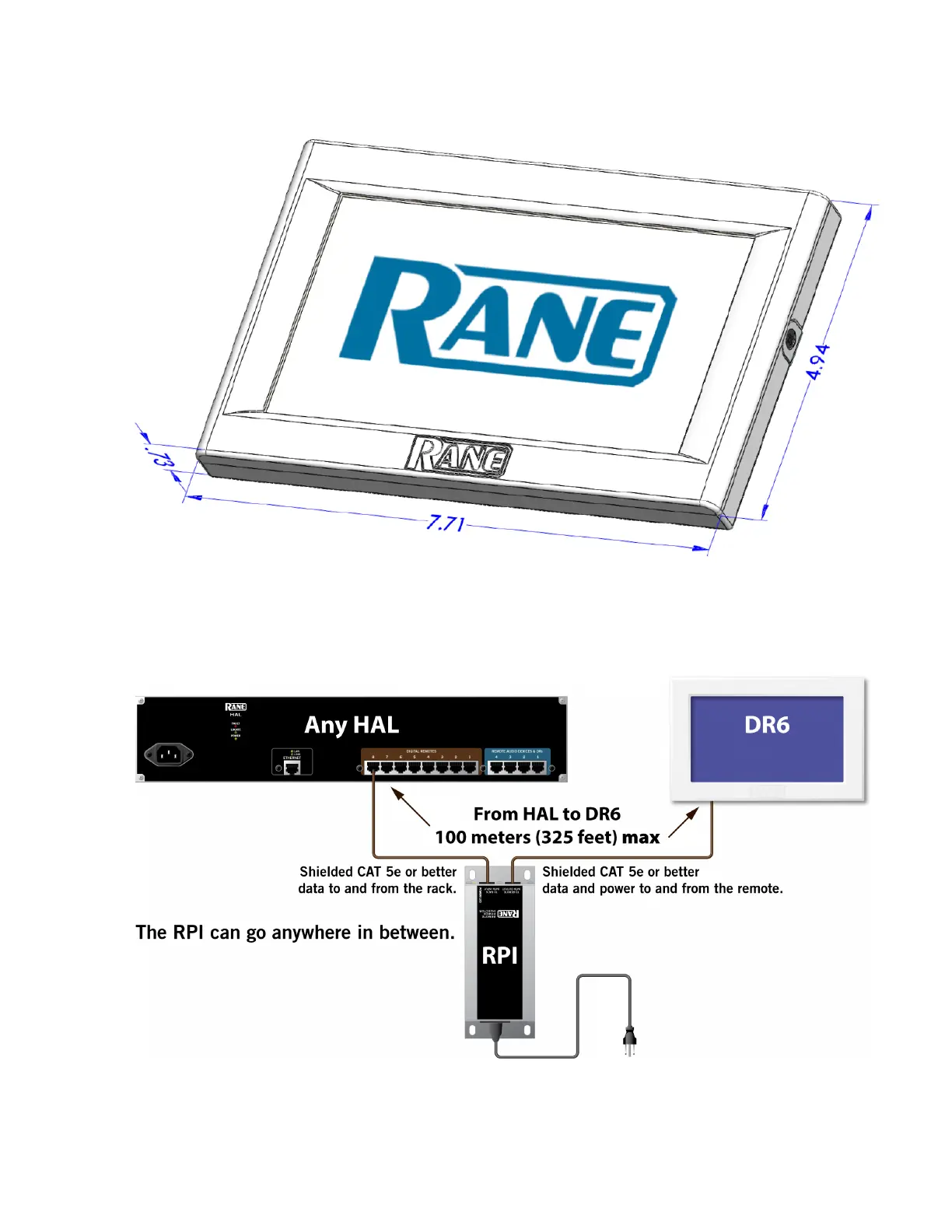

Connection Diagram
The DR6 uses a Remote Power Injector (RPI) that connects between a DR port and the DR6 device. The RPI
provides power for the DR6 and has a dedicated port for the connection to the DR port on a HAL or EXP
and another for the connection to the DR6 device:
