MP2014 MANUAL
Main Mix Outputs
• These signals combine to create the Main Mix signal:
• Decks 1 and 2.
• Session In.
• FX Return.
• Mic.
• Main Mix outputs are:
• Main: balanced XLR jacks with a maximum output of 8 volts rms.
• Booth: balanced 1/4" TRS jacks with a maximum output of 8 volts rms.
• Session: unbalanced RCA jacks with a maximum output of 4 volts rms.
• S/PDIF digital session output on one RCA jack.
• Common to all Main Mix outputs:
• Stereo Q-peak meter with peak hold:
• If the red overload LED is off, the mixer will not clip at any output level setting.

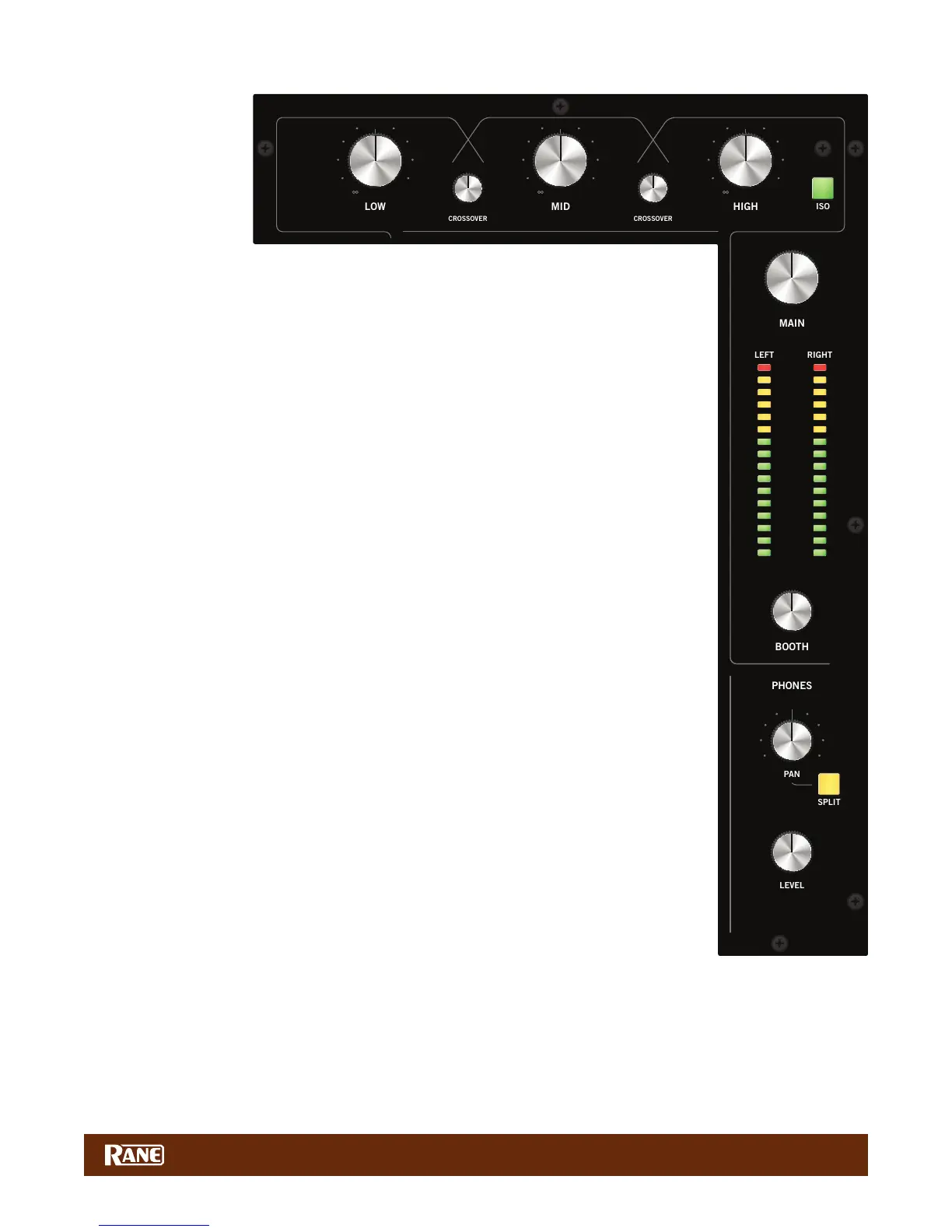

• Main Output Isolator:
• Off to +10 dB with unity gain at 12 o’clock.
• Low-mid crossover is adjustable from 80 Hz to 640 Hz.
• Mid-high crossover is adjustable from 1 kHz to 8 kHz.
• Main, Booth and Session outputs have independent Level controls; their range is off to 0 dB.
• Control panel option: the Main Output can be set to Mono or Stereo. Other outputs remain in
stereo. See "Control Panel" on page 14.
Headphone Cueing
• The Headphone monitor provides stereo or mono split cue operation.
• When set for stereo operation (off), the Pan control pans between stereo Cue and stereo
Main Mix.
• When set for Split Cue operation (ON), the Pan control pans between Mono Cue in the left
ear and mono Main Mix in the right ear.
• Individual Cue buttons are provided for Deck 1, Deck 2, and Session In.
• Cue buttons engage headphone monitoring for each channel. Multiple channels can be cued
simultaneously by pressing the Cue for each.
• The Phones Level control adjusts the volume to the headphone jacks.
• Headphones output is available on two 1/4" jacks, one on the front and one on the top. An
additional 3.5mm jack is located on the front. All share the same signal.
• The Control Panel allows Bass and Treble adjustment in headphones. See "Control Panel" on
page 14.
SPLIT
LEVEL
PHONES
PAN
0
2
1
3
4
5
6
7
8
9
10
CUE MIX
BOOTH
MAIN
LEFT
RIGHT
LOW
CROSSOVER
CROSSOVER
MID
HIGH
ISO
135 380
OL
+10
+7
+5
+3
+2
+1
0
-1
-2
-3
-5
-7
-10
-15
-24
0
2
1
3
4
5
6
7
8
9
10
∞
0 dB
+10
∞
0 dB
+10
∞
0 dB
+10
0
2
1
3
4
5
6
7
8
9
10
80
225
640
1.7k 4.75k
1.0k
2.8k
8.0k
