Ears / Battle Bridges

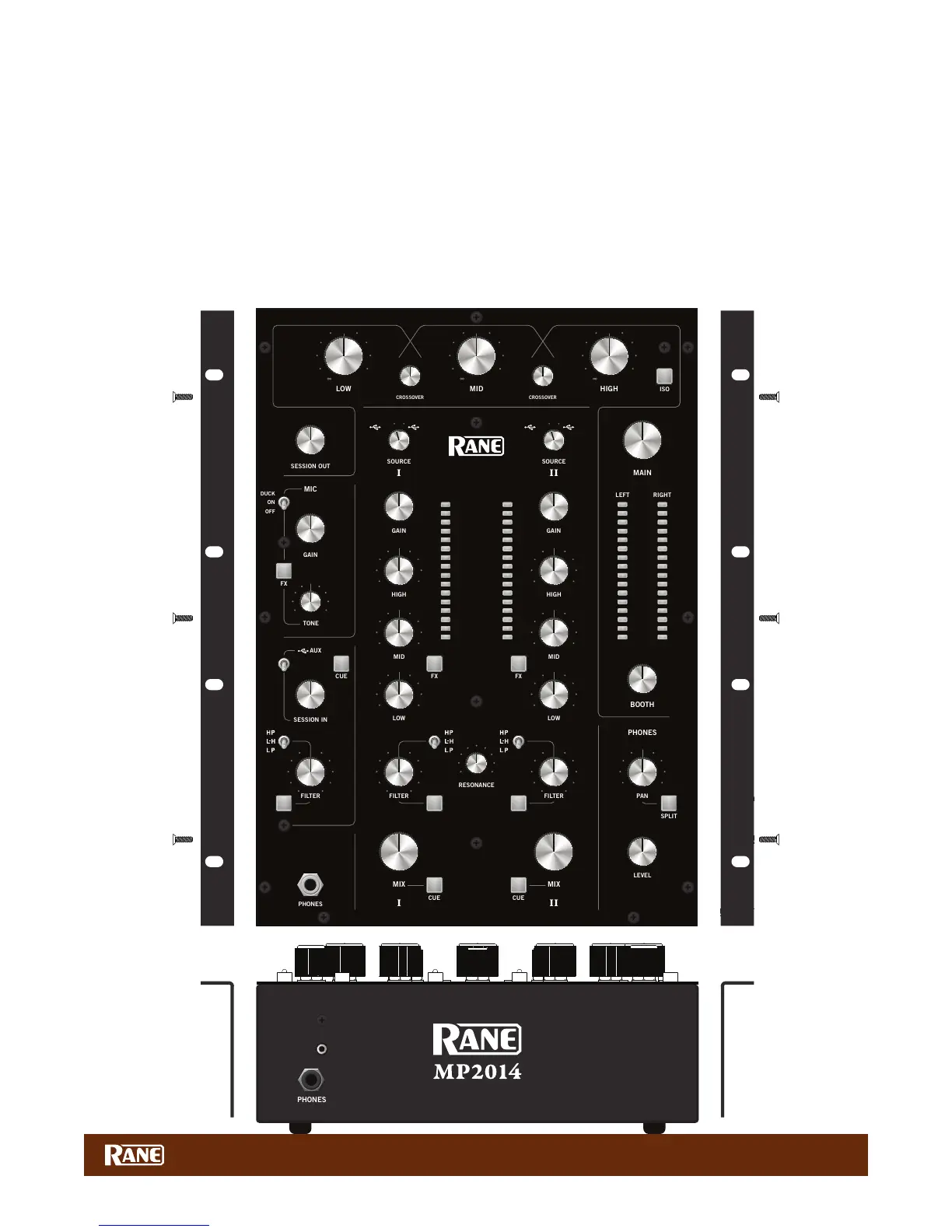

A mounting kit accessory is available for the Rane MP2014 Mixer, enabling it to be recess-mounted in a desk or portable
cofn. These brackets / ears install easily with three screws on each side. The metal is black powder-coated electro-
galvanized .075" steel. Include room for the connections on the back of the mixer, which can add up to 4" (10 cm)
depending on your connectors. Leave access for the headphone jacks on the front of the mixer as well.
1. Remove the wood sides to attach the Ears.
2. Without the wood sides, the MP2014 Mixer is 10" wide (25.4 cm). The cavity needs to be 1/4" (6 mm) wider than this on
each side to accomodate the mixer.
3. Attach the ears using 3 screws per side as provided in the kit. Warning: only use 6-32 x 3/8 screws. Longer screws will
damage your mixer and void your warranty.
4. The Ears extend .75" (19 mm) out each side of the mixer, bringing the total width of the mixer to 11.5" (29.2 cm) for
mounting.
