Rane MP2014 - USB Audio Integration; USB Audio Capabilities and Connectivity; USB Playback and Recording Channel Assignments

12
MP2014 MANUAL
USB Audio

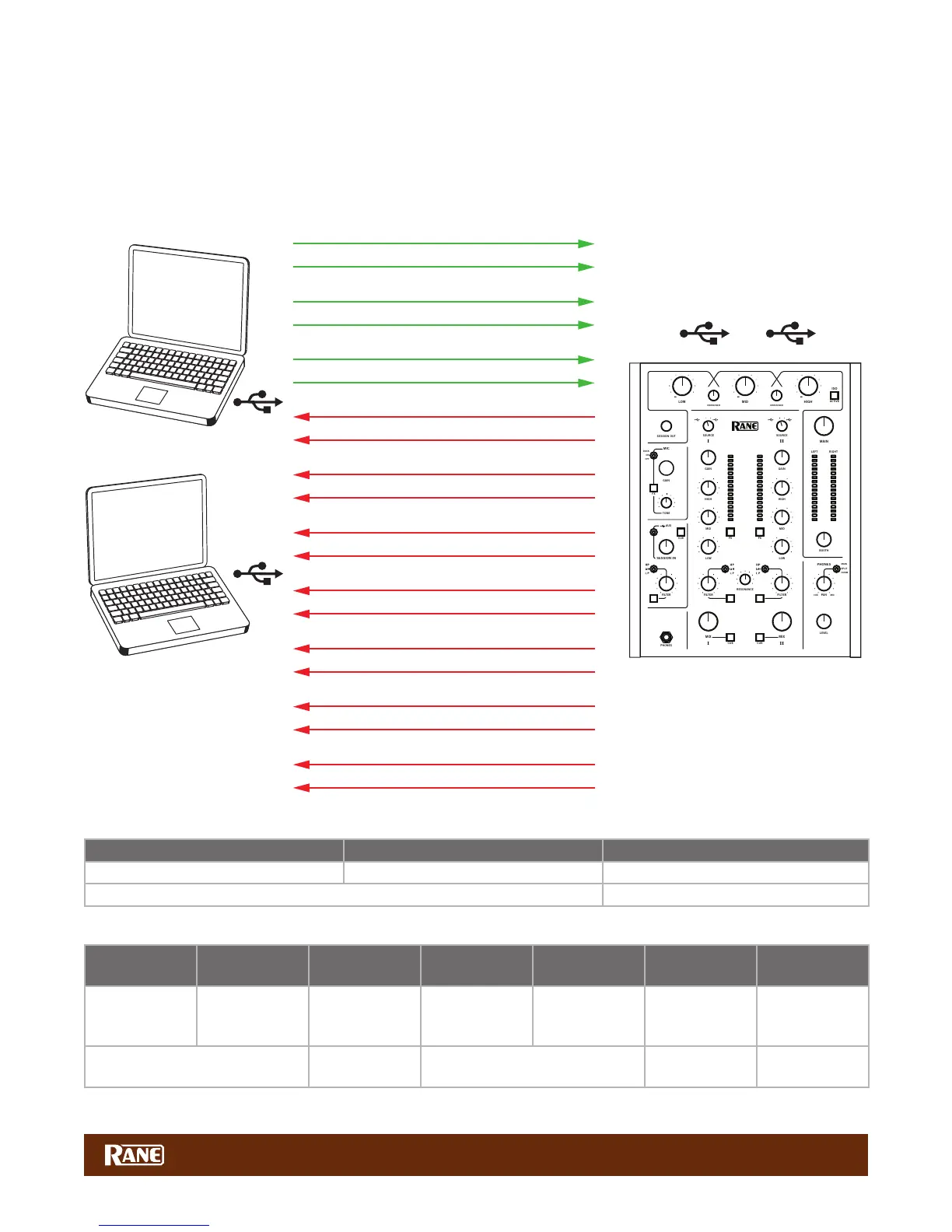

There are ve stereo record channels and three stereo playback channels. These channels are available on two USB ports,
allowing two computers to share the mixer. This allows two DJs to play together, and supports uninterrupted transitions
between them by simply changing one of the mixer input sources. USB audio is 24-bit PCM with a sample rate of 44.1, 48
or 96 kHz. Sample rate and USB slot assignments are made in the preferences screen in your DJ or DAW software. You can
simultaneously record both Deck channels as pre-Mix control (for DVS) and post-Mix playback, and record the Main Mix
output through USB audio channels. Multitrack recording allows you to “x” a recording in the studio.
USB Playback Channels Assignment
Deck 1 Playback Deck 2 Playback Session In USB Playback
In USB audio playback slots 1-2. In USB audio playback slots 3-4. In USB audio playback slots 5-6.
Routed from either USB A or USB B depending on the Input source selection. Sum of USB A and USB B.
USB Record Channel Assignment (Broadcast to both USB A and USB B at all times).
Deck 1
Record (Pre)
Deck 2
Record (Pre)
Main Mix
Record
Deck 1
Record (Post)
Deck 2
Record (Post)
Session In
Record
Mic Input
Record
In USB audio
record slots
1-2.
In USB audio
record slots
3-4.
In USB audio
record slots
5-6.
In USB audio
record slots
7-8.
In USB audio
record slots
9-10.
In USB audio
record slots
11-12.
In USB audio
record slots
13-14.
Use "Pre" with DVS software. Use "Post" for multi-track
recording (uses Mix controls).
Deck 2 Record (post)
x2 USB Ports
Deck 2 Record (pre)
Deck 1 Record (pre)
Deck 1 Record (post)
Main Mix Record
USB 3-4
USB 1-2
USB 7-8
USB 9-10
Mic Record
Session In Record USB 11-12
USB 13-14
USB 5-6
Deck 2 Playback
USB AUX Playback
Deck 1 PlaybackUSB 1-2
USB 3-4
USB 5-6
USB RECORD
USB PLAYBACK
