MP2014 MANUAL

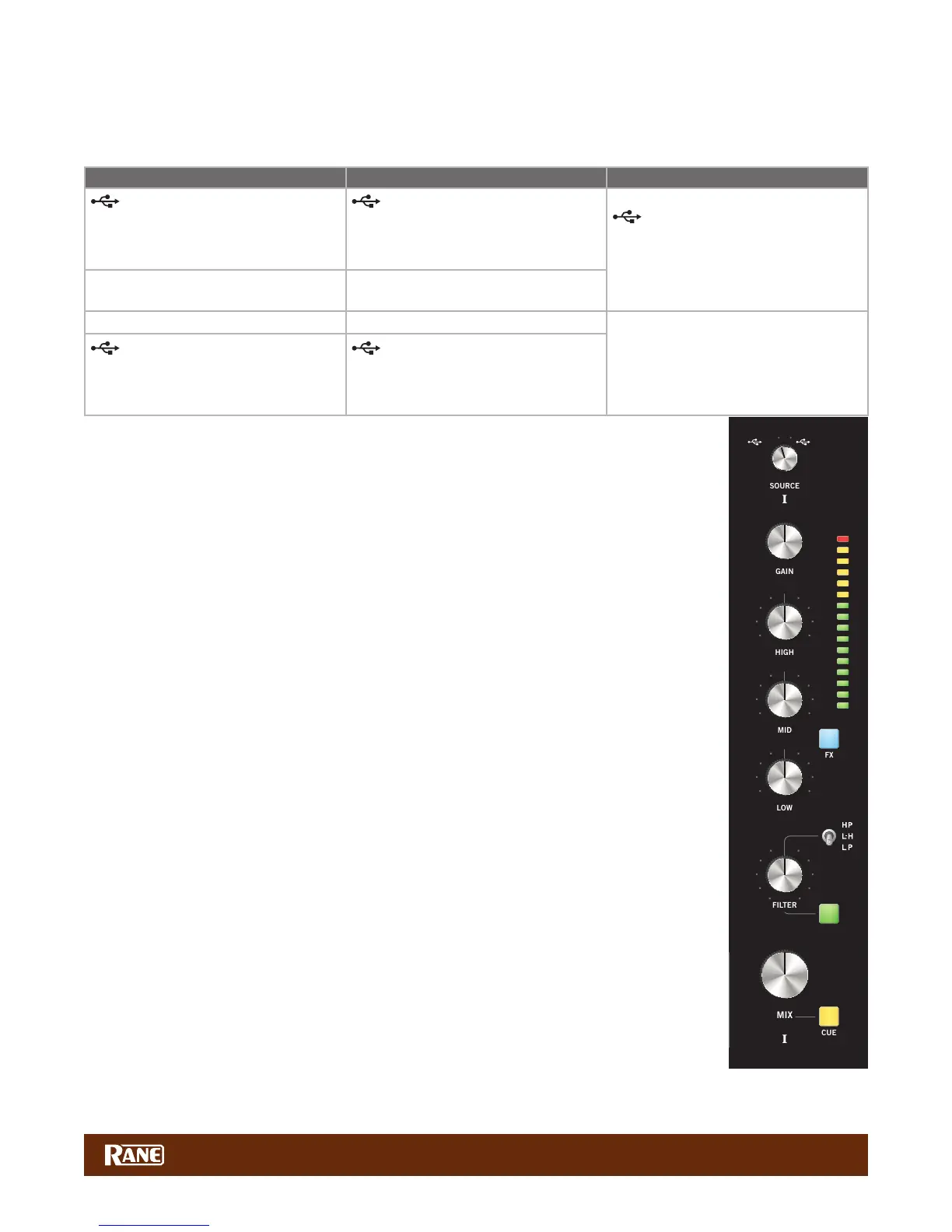

Input Channels
Source Selectors
The source selectors choose the active USB port, USB audio slot or analog input for each input channel. To use USB
playback you must assign the USB slots in your DJ or DAW software preferences panel.
Channel 1 Source Selections Channel 2 Source Selections USB AUX / Session In
Port A playback for Deck 1
• USB audio slots 1-2.
• Routes audio and MIDI for Deck 1
only to/from USB Port A.
Port A playback for Deck 2
• USB audio slots 3-4.
• Routes audio and MIDI for Deck 2
only to/from USB Port A.
Switch in the up position.
AUX playback
• USB audio slots 5-6, both ports.
• AUX audio is summed from USB
Port A and Port B.
• Phono / CD 1
• Set the PH-CD rear panel switch.
• Phono / CD 2
• Set the PH-CD rear panel switch.
• Aux Input 1 • Aux Input 2 Switch in the down position.
• Session In line-level or S/PDIF
inputs.
Port B playback for Deck 1
• USB audio slots 1-2.
• Routes audio and MIDI for Deck 1
only to/from USB Port B.
Port B playback for Deck 2
• USB audio slots 3-4.
• Routes audio and MIDI for Deck 2
only to/from USB Port B.
To share the MP2014 with a second computer, see "DJ Changeover" on page 13.
Deck Source Selection is followed by:
• GAIN trim: Off to +15 dB with unity gain (equal in and out) at 12 o’clock.
• 3-band HIGH / MID / LOW tone controls
• Off to +6 dB with unity gain at 12 o’clock.
• Linkwitz-Riley 2nd-order isolator full-cut lters (LR-2).
• Crossover points for Low/Mid and Mid/High default at 300 Hz between Low and Mid, 3 kHz
between Mid and High. This can be changed in the "Control Panel" on page 14.
• High-Pass / Low-High-Pass / Low-Pass Sweep FILTER (button is lit green when active)
• LP: Low-pass lter cutoff moves from 20 kHz toward 20Hz as the knob is turned CCW.
• HP: High-pass lter cutoff moves from 20 Hz toward 20kHz as the knob is turned CW.
• L-H: In Low-High mode, there is no effect at the center (at response).
• Low-pass increases CCW from the center, and High-pass increases CW from the center.
• Resonance can be adjusted for all Sweep Filters with the central RESONANCE control.
• CUE select (button is lit yellow when active): Assigns an input to the headphone monitor.
• FX select (button is lit blue when active): Assigns an input to the external effects send.
• Q-peak meter with peak hold: Adjust the GAIN trim to get the signal into the yellow during
peaks, and to prevent overload.
• MIX control: Adjusts the channel level feeding the "post" USB record outputs and the Main mix.
CUE
I
I
MIX
FILTER
FX
LOW
MID
HIGH
SOURCE
GAIN
1B
1A
PH/CD 1 AUX 1
OL
+10
+7
+5
+3
+2
+1
0
-1
-2
-3
-5
-7
-10
-15
-24
0
2
1
3
4
5
6
7
8
9
10
OFF +6
OFF +6
OFF +6
0
2
1
3
4
5
6
7
8
9
10
