Rangemaster Kitchener - Circuit Diagram

33

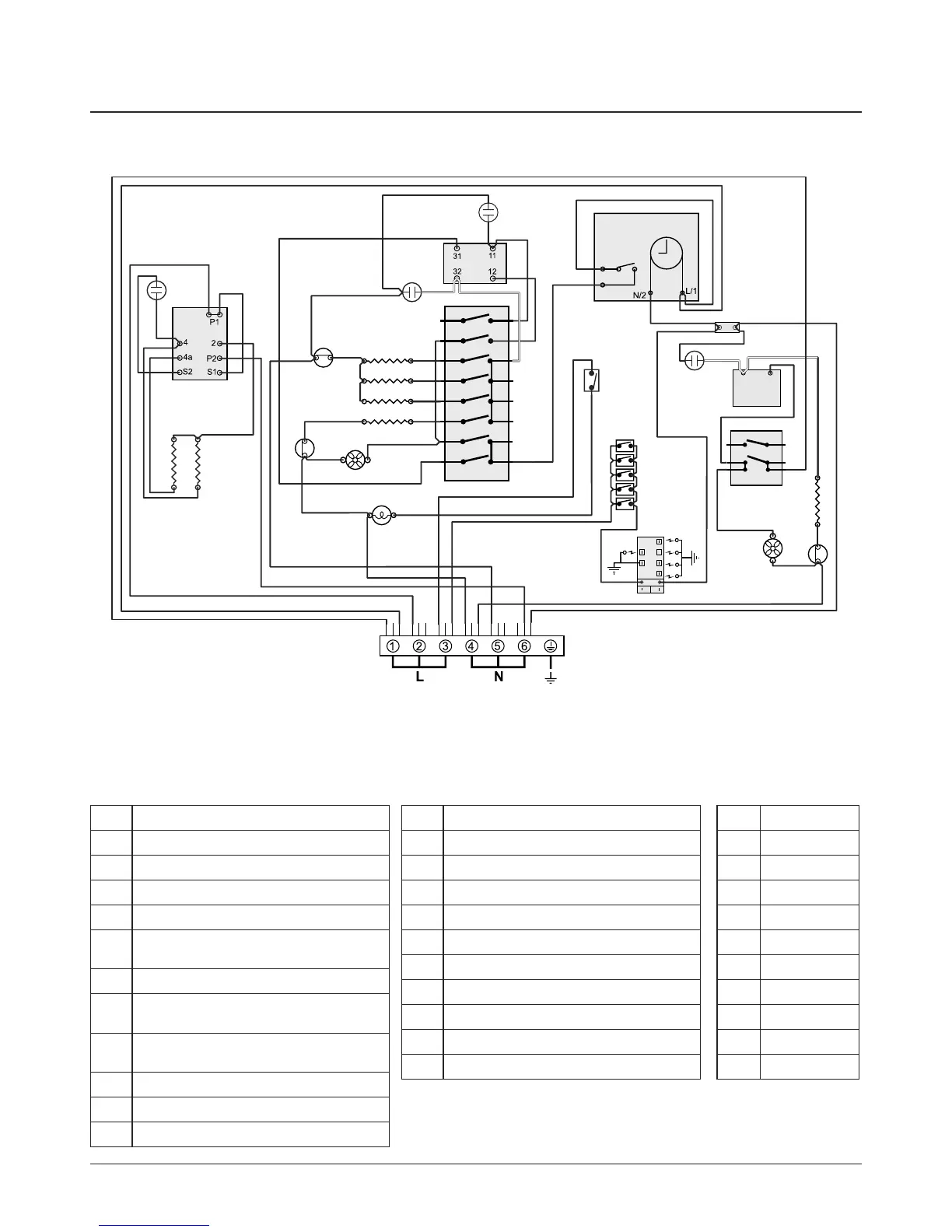

9. Circuit Diagram
6
P6
5 P5
4
P4
7 P7
8 P8
2
P2
1 P1
3 P3
P038434
P095199
1
2
P2
P1
1
2
a
b
e
f
c
d
1
2
E
b
b
b
b
b
b
b
b
b
b
b
b
b
b
b
b
b
b
b
b b
br
br
br
br
br
br
br
br
br
v
br v
v
v
v
v
or
or
y
y
w
w
w
y
y
bk
bk
bk
or
or
r
gr
w
y
r
r
w
w
ww
bk
v
v
v
v
r
r
bk
bk
r
bk
r
v
v
br
brbr
b
br
brbr br br
b b bbb
or
w
b
b
b
A1
A2
B1
B2
B3
B4
B5
B6
B7
C
D1
D2
D3
D4
F1
F2
G1
H
J
J
J
H
H
G2
J
A3
Key
The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz.
Key Description
A1 Grill control
A2 Grill element left-hand side
A3 Grill element right-hand side
B1 Left-hand multi-function oven thermostat
B2 Left-hand multi-function
oven function control
B3 Left-hand multi-function oven
base element
B4 Left-hand multi-function oven
top element (outer pair)
B5 Left-hand multi-function oven
browning element (inner pair)
B6 Left-hand multi-function oven fan element
B7 Left-hand multi-function oven fan
C Clock/oven timer
Key Description
D1 Right-hand fan oven thermostat
D2 Right-hand fan oven control switch
D3 Right-hand fan oven element
D4 Right-hand fan oven fan
F1 Ignition switch
F2 Ignition generator
G1 Oven light switch
G2 Oven light
H Thermal cut-out
J Neon
Code Colour
b Blue
br Brown
bk Black
or Orange
r Red
v Violet
w White
y Yellow
g/y Green/Yellow
gr Grey
Key
The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz.
Classic Deluxe
Code Colour
b Blue
br Brown
bk Black
or Orange
r Red
v Violet
w White
y Yellow
g/y Green/yellow
gr Grey
Code Description
A1 Grill control
A2 Grill element left-hand side
A3 Grill element right-hand side
B1 Left-hand multi-function oven thermostat
B2
Left-hand multi-function oven function
control
B3 Left-hand multi-function oven base element
B4
Left-hand multi-function oven top element
(outer pair)
B5
Left-hand multi-function oven browning
element (inner pair)
B6 Left-hand multi-function oven fan element
B7 Left-hand multi-function oven fan
C Clock/oven timer
Code Description
D1 Right-hand fan oven thermostat
D2 Right-hand fan oven control switch
D3 Right-hand fan oven element
D4 Right-hand fan oven fan
F1 Ignition switch
F2 Ignition generator
G1 Oven light switch
G2 Oven light
H Thermal cut-out
J Neon
