Rangemaster Kitchener - Professional+ and Kitchener

34
b
b
b
b
or
or
bk
v
v
bk
bk
r
r
r
br
br
r
v
v b
y
y
w
w
w
b
b b
y
br
br
br
br
b b
b
b
bb
b
y
y
y
or
or
w
w
w
b
bk
bk
br
b
b
b b b b bbr br br br
br
a
b
e
f
c
d
1
2
P095199
1
2
P2
P1
E
1
2
1
2
P095199
1
2
P2
P1
A1
A2
B1
C
D1
D2
D3
D4
F1
F2
G1
H
I
B2
B3
B4
G2
H
H
I
J
A3
Key

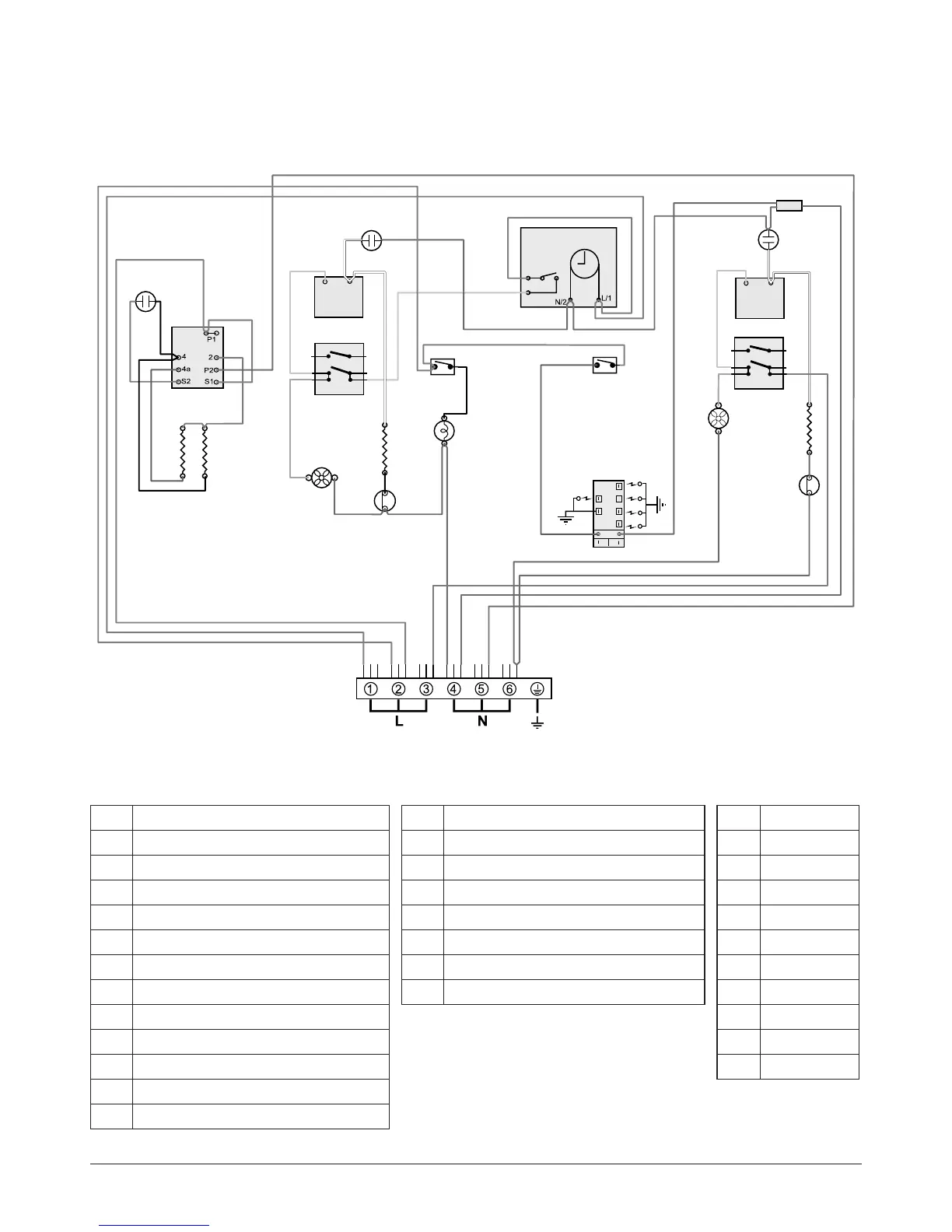

The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz.
Code Description
A1 Grill control
A2 Grill element right-hand side
A3 Grill element left-hand side
B1 Left-hand fan oven thermostat
B2 Left-hand fan oven control
B3 Left-hand fan oven element
B4 Left-hand fan oven fan
C Clock
D1 Right-hand fan oven thermostat
D2 Right-hand fan oven control
D3 Right-hand fan oven element
D4 Right-hand fan oven fan
Code Description
F1 Oven light switch
F2 Oven lamp
G1 Ignition switch
G2 Ignition spark generator
H Neon
I Thermal cut-out
J Connector
Professional+ and Kitchener
Code Colour
b Blue
br Brown
bk Black
or Orange
r Red
v Violet
w White
y Yellow
g/y Green/yellow
gr Grey
