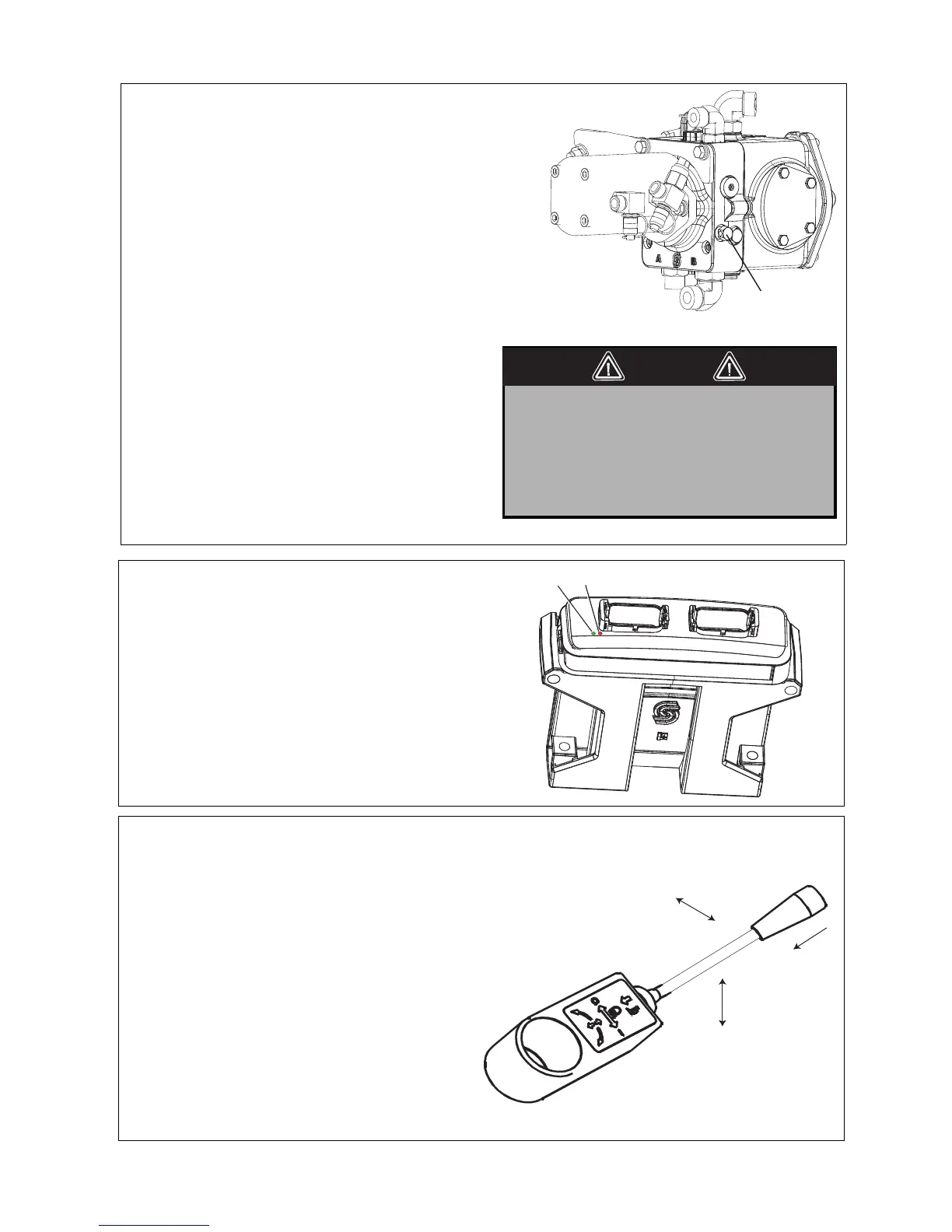

6.10 LIGHTING KIT (Optional)
Lighting control Stalk
A Push away from operator to turn lights on.
B Pull towards operator to flash headlights.
C Move stalk up to indicate left turn.
D Move stalk down to indicate right turn.
E Push stalk in to sound horn.
NOTE: Side lights will operate when ignition is in
the run position
When the lighting kit is fitted a brake light function
is available. If brake lights are used rear view
mirrors must be fitted.
A
6.8 FREE WHEEL
1. To push the machine, disengage the parking
brake, see section 6.7
2. Turn screw (A) located on the left hand side of
the transmission pump 1 turn counterclockwise.
Set the steering wheel so that the rear wheels are
pointing straight ahead.
3. Turn the steering wheel to the left until resistance
can be detected. The machine is now ready to
push. If unable to move the machine apply further
pressure to the steering wheel. Excessive force
should never be used on the steering wheel. If
the rear wheels start to turn too much force is
being applied.
5. After pushing the machine, return the parking
brake valve, see section 6.7 to its normal position
and screw (A) on the pump to its operating
position.
6.9 CONTROLLER ERROR CODES
A. Power Indicator
B. Error Code Lamp
Error Flash
One flash - Seat, No Operator
Two flashes - Parking Brake Off
Three flashes - Reel Engaged
THE FREE WHEEL FACILITY IS FOR
RECOVERY PURPOSES ONLY.
DO NOT TOW THE MACHINE FOR MORE
THAN A FEW METRES, OR ALLOW THE
MACHINE TO FREE WHEEL DOWN SLOPES
EVEN WHEN UNLOADING DOWN RAMPS.
