SAFETY, OPERATORS & MAINTENANCE MANUAL
en-37
7OPERATION
A
B
C
9. Under no circumstances should the engine be started without the operator seated on the tractor.
10. Do not operate tractor or attachments with loose, damaged or missing components.

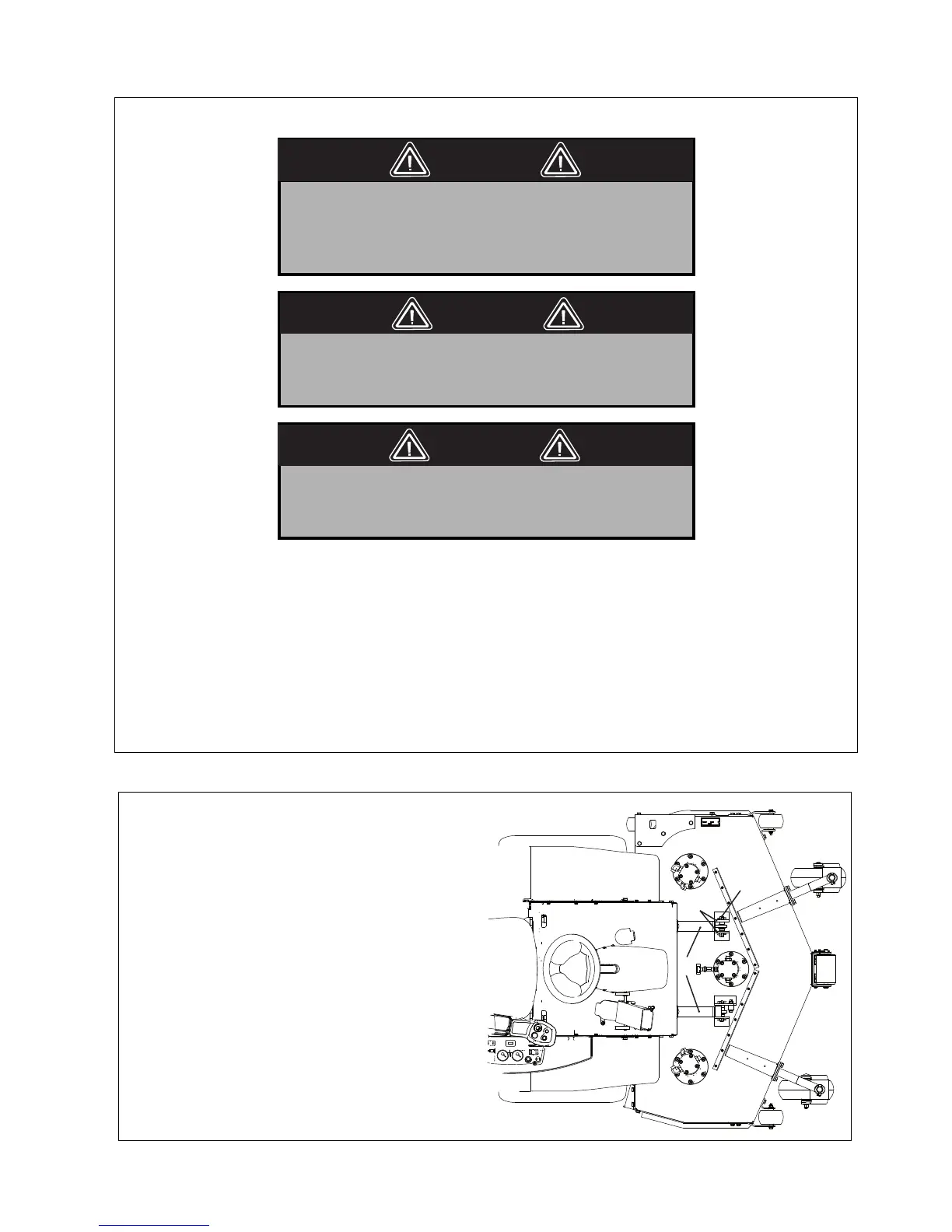

7.4 FITTING THE CUTTING UNIT TO THE MACHINE
1. With the lift arms (A) in the lower position align
deck mounting brackets (B) with the self aligning
bearings.
2. Fit pivot pins (C) and secure with cotter pins and
rings.
3 Connect hydraulic Quick relase hydraulic hoses to
tractor unit.
4. See section 9.3 to set height of cut.
DO NOT USE ON SLOPES GREATER THAN 14°
FOR MACHINES FITTED WITH ROTARY DECKS
AND MACHINES FITTED WITH ROTARY DECKS
AND ROPS CAB.
DO NOT USE ON SLOPES GREATER THAN 12°
FOR MACHINES FITTED WITH ROTARY DECKS
AND ROPS FRAME
DO NOT USE ON SLOPES GREATER THAN 10°
FOR MACHINES FITTED WITH ROTARY BRUSH
OR SNOW BLADE AND ROPS CAB.
