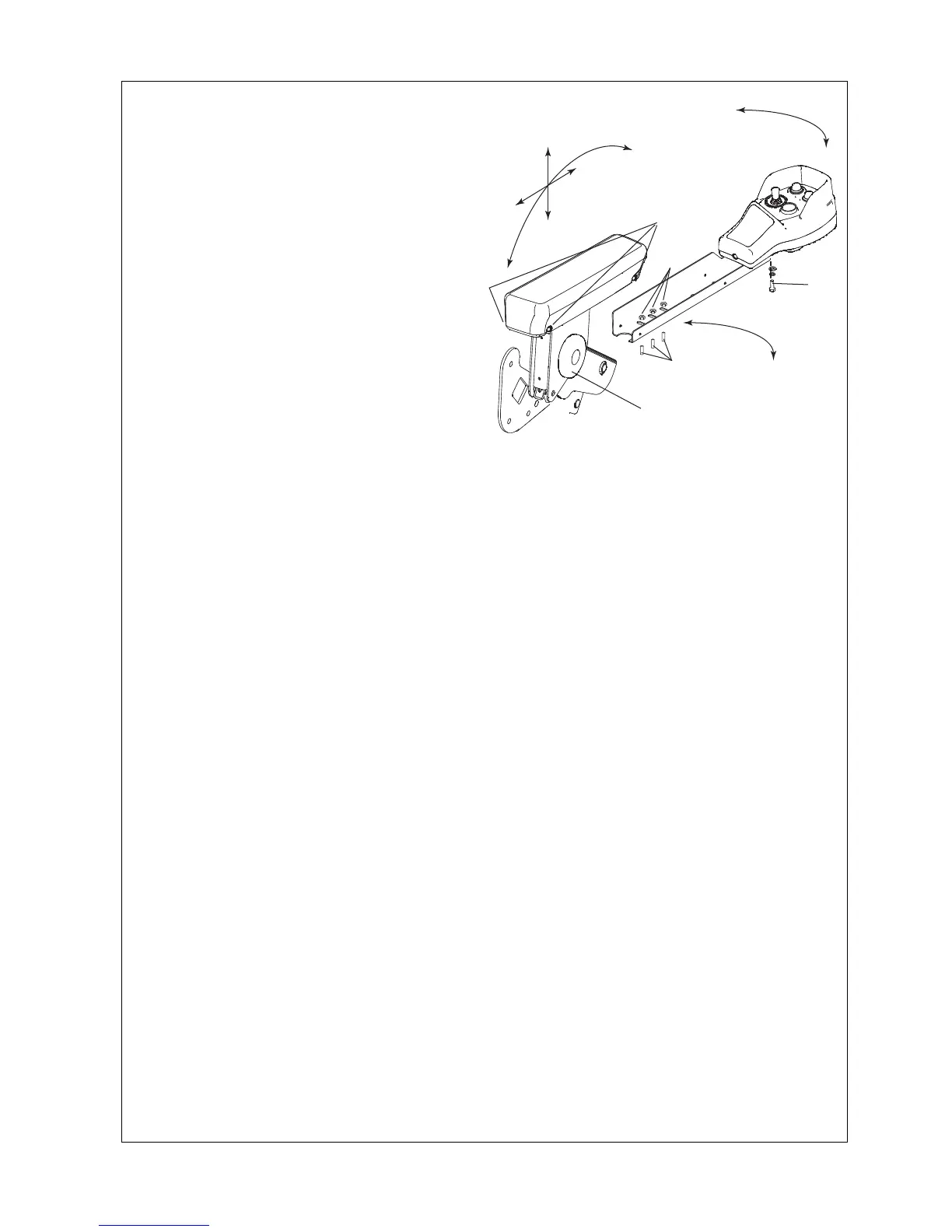

6.11 SEAT RIGHT HAND ARM REST & POD
The right hand arm rest of the seat has an
extension mounted to it which carries the control
pod.
To obtain a comfortable operating position:
a Release hand wheel (A).
b Using both hands grip the arm rest and lift or
lower the arm rest. It will move in a circular
motion (X) either moving up and forward or
down and rearwards.
c When the desired position is obtained lock by
tightening the hand wheel (A).
The pod can be pivoted in the horizontal plane (Y),
independently of the arm rest by:
d loosening the three screws (B) holding the
pod to the arm rest extension.
e Swivel pod to desired position.
f Tighten the three screws (B).
The whole arm rest extension can be pivoted in
the horizontal plane (Z).
g Remove the arm rest cushion by removing
the four screws (D).
h Loosen the three locknuts (E) fitted to studs
(C).
j Swivel the arm rest extension to the desired
position.
k Tighten the three locknuts (E)
l Refit the arm rest cushion with the four
screws (D)
