SERIES 2000 INSTALLATION, OPERATION AND SERVICE MANUAL
20
Step 3: With the top frame upside down, insert and attach the first two legs.
Note: All legs are identical and not all the holes will be used on each leg. See Page 20, Figure 9.
Step 4: Next attach the horizontal support(s), and repeat process for the other two remaining legs. See Page
20, Figure 9.

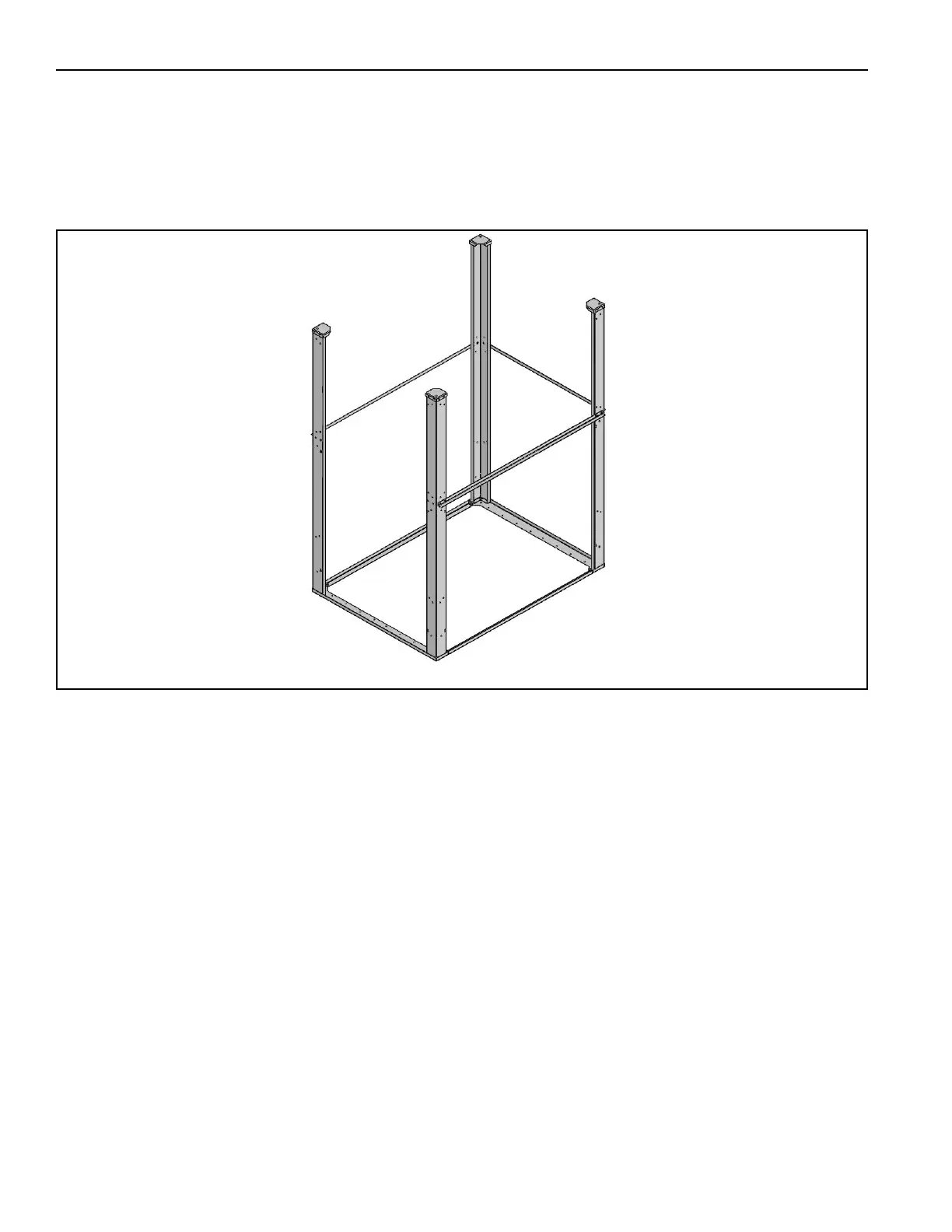

FIGURE 9: Step 3 & 4
