SERIES 2000 INSTALLATION, OPERATION AND SERVICE MANUAL

11.2 Inlet Hoods with Filter Rack Assembly

Step 11.2.1 Seal around the perimeter of the inlet of the air handler with the provided foam gasket tape.

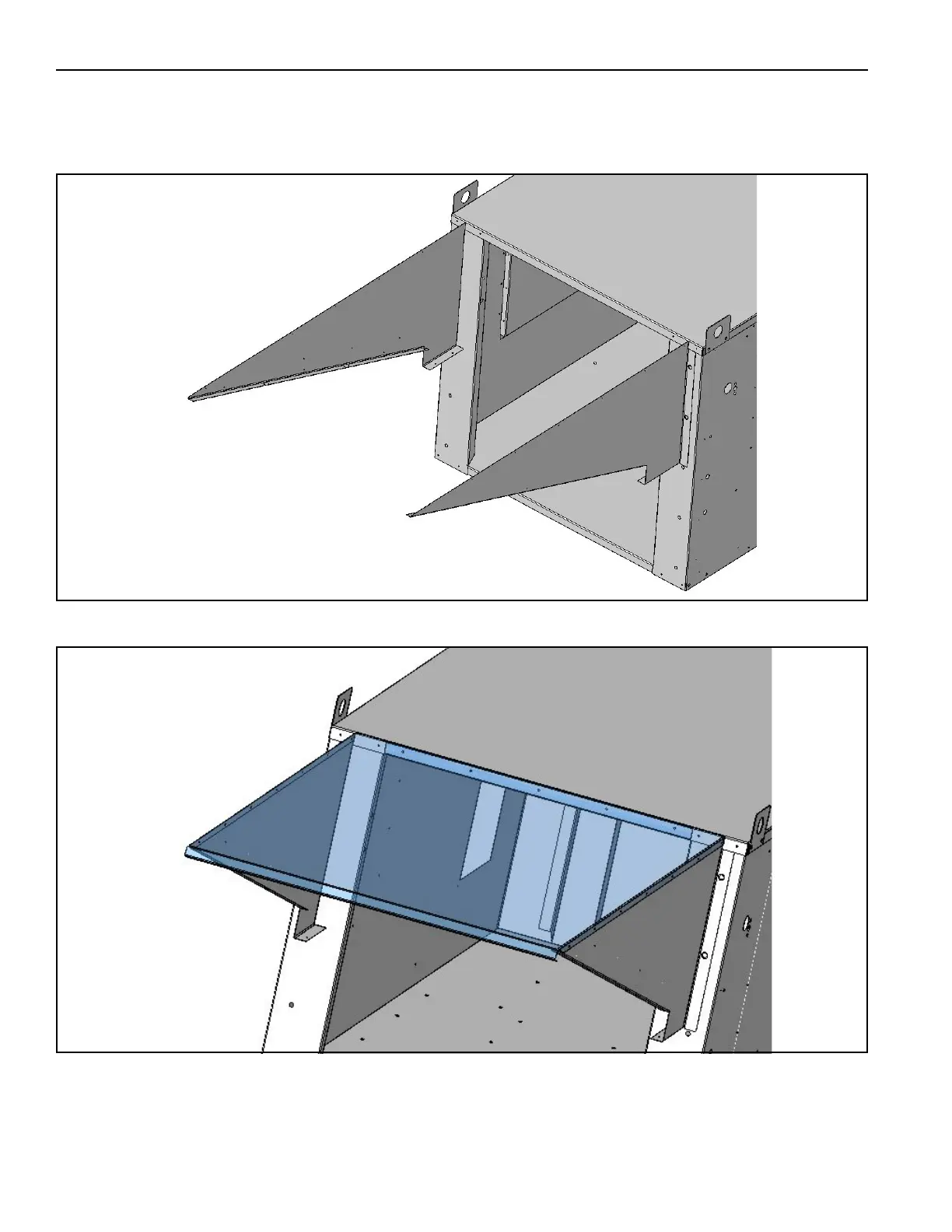

Step 11.2.2 Mount the upper inlet hood right and left side (flanges will be facing out), with the bolts and wash-

ers provided.

Step 11.2.3 Attach the upper hood roof with the provided TEK screws along the left and right side and upper

edge to the air handler.
