Rapid Engineering 2000 Series - Page 33

SECTION 11: INLET HOOD
27

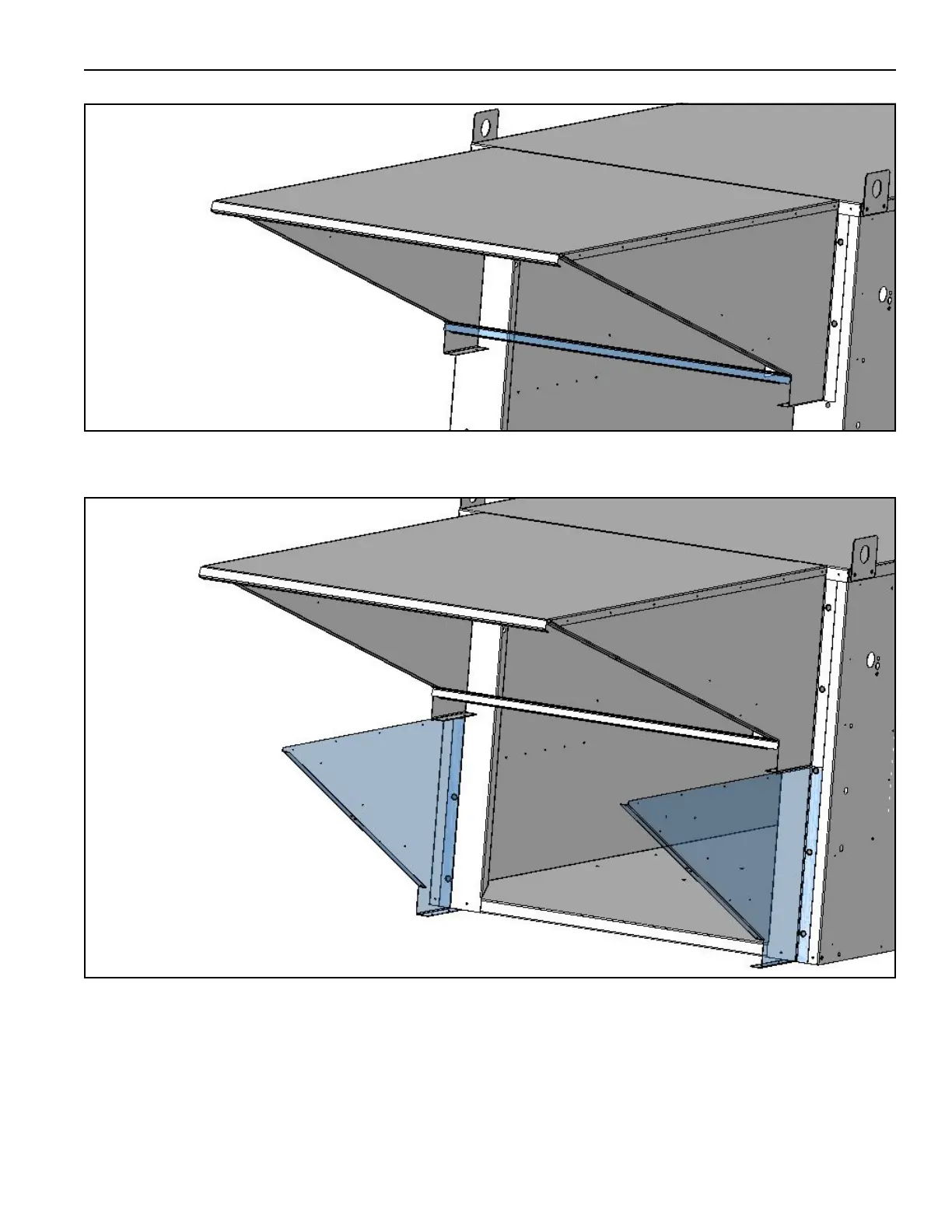

Step 11.2.4 Attach the bottom filter rail for the upper inlet hood to the hood using the provided rivets.
Step 11.2.5 Mount the lower inlet hood right and left side (flanges will be facing out), with the bolts and wash-
ers provided and the upper edge of these sides to the lower portion of the upper hood with the TEK screws
provided.
