Rapid Engineering 2000 Series - Page 34

SERIES 2000 INSTALLATION, OPERATION AND SERVICE MANUAL
28

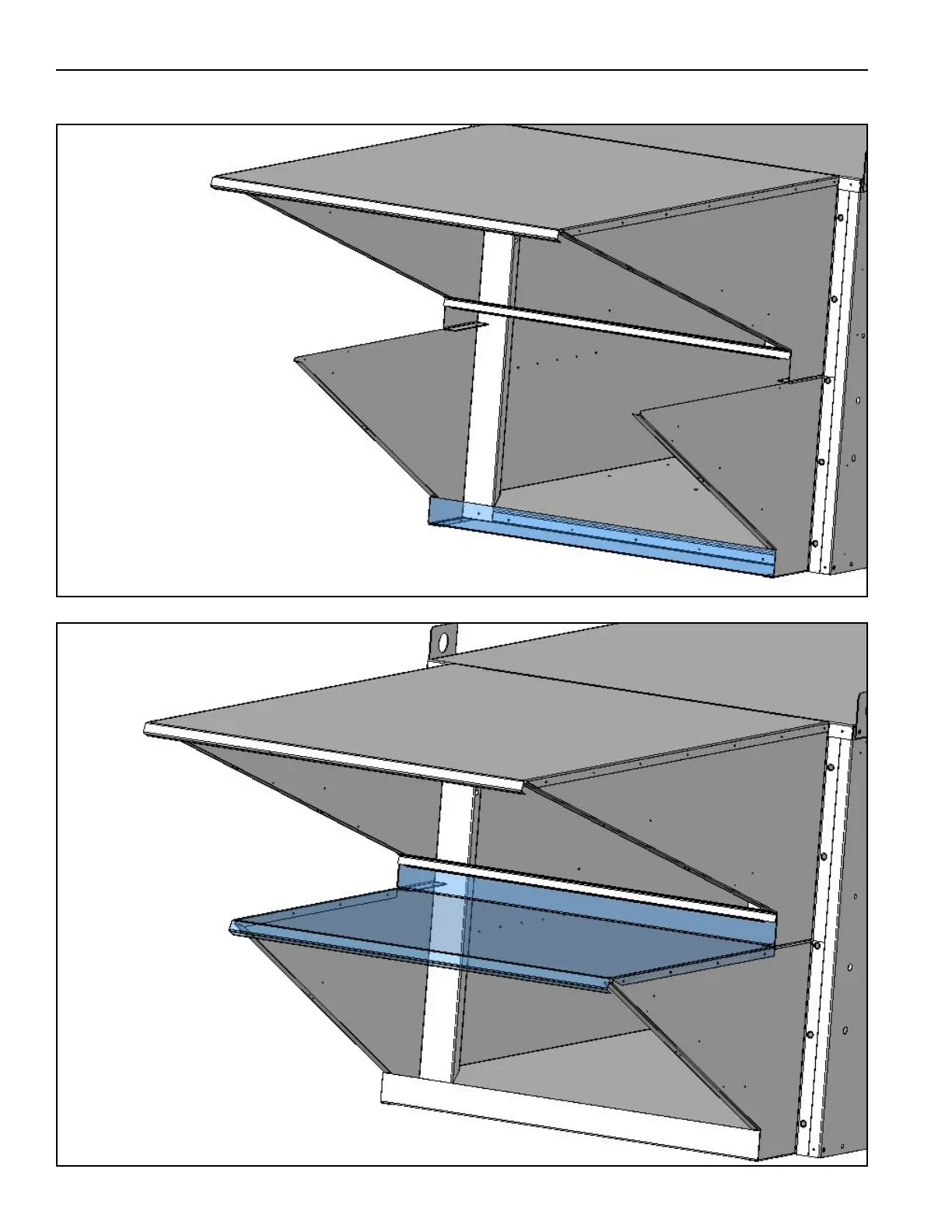

Step 11.2.6 Attach the bottom filter rail for the lower inlet hood and attach to the left and right side of the hood
and to the air handler using the provided TEK screws.
Step 11.2.7 Attach the lower hood roof with the provided TEK screws along the left and right side.
