SECTION 11: INLET HOOD
29

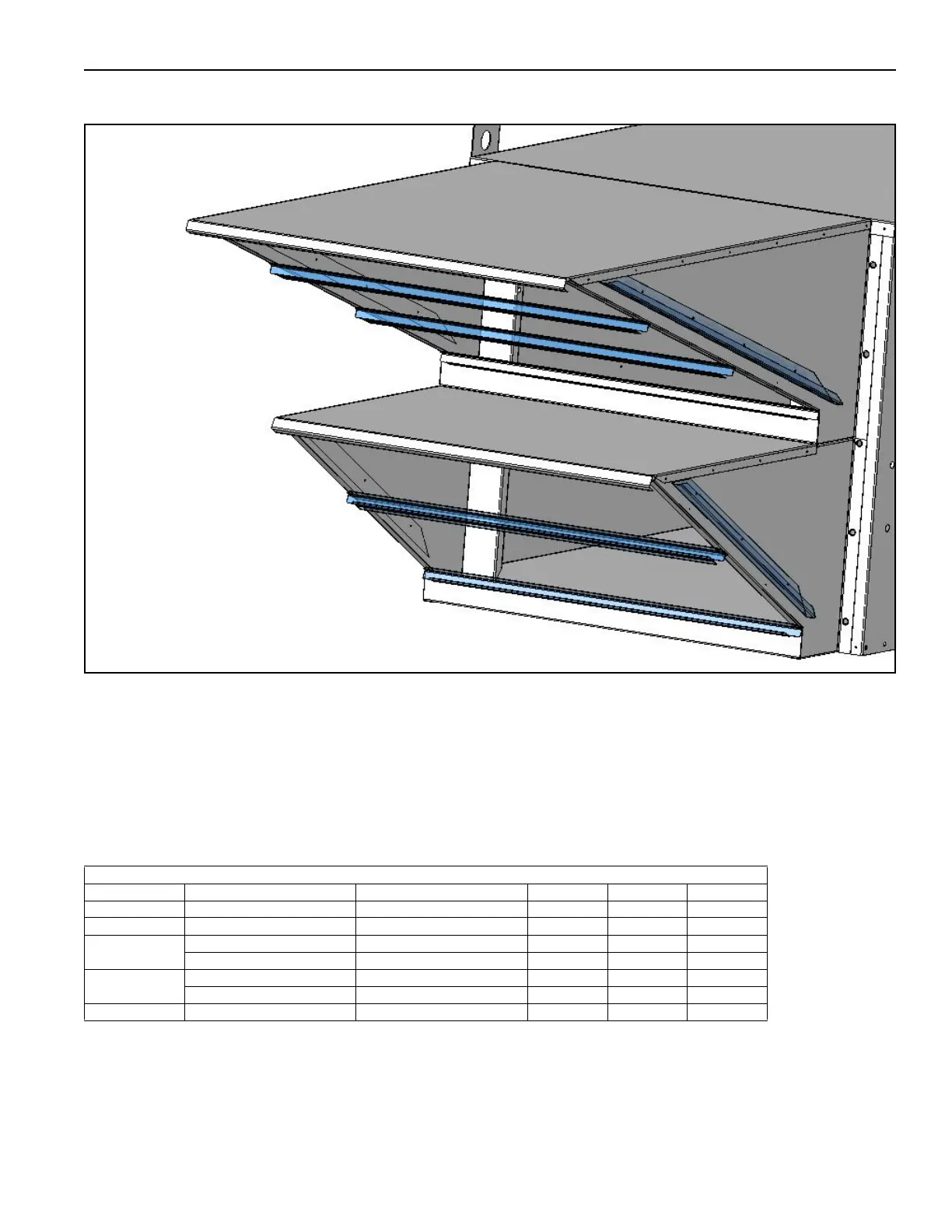

Step 11.2.8 Attach the remaining filter rails and the rain gutters to the upper and lower hood sides with the
provided rivets.
Step 11.2.9 Attach filter retaining latches with the provided rivets.
Step 11.2.10 Caulk seam between air handler and inlet hood.
Step 11.2.11 Load filters into the inlet hood, checking to see that each filter is in the proper orientation by ver-
ifying that the arrow on the side of the filter points in the direction of air flow. All of the arrows should be point-
ing towards the air handler when installed in the proper orientation. Once filters are installed, close filter clips
installed previously
Inlet Hood Mounted Poly Panel Filters
Model Filter Size Alum Mesh Actual Size Quantity Poly P/N Alum P/N
2005 25x25 25x25 1 P-000750 P-001218
2010 24x20 24x19.5 6 02243 66502
2010B
24x20 24x19.5 5 02243 66502
20x20 19.6x19.6 5 P-000707 20730
2020
25x25 25x25 12 N/A P-001218
50x25 N/A 6 P-000960 N/A
2030 25x25 25x25 18 P-000344 P-001218
