SECTION 13: DISCHARGE HEADS AND SPLASH PLATES
37

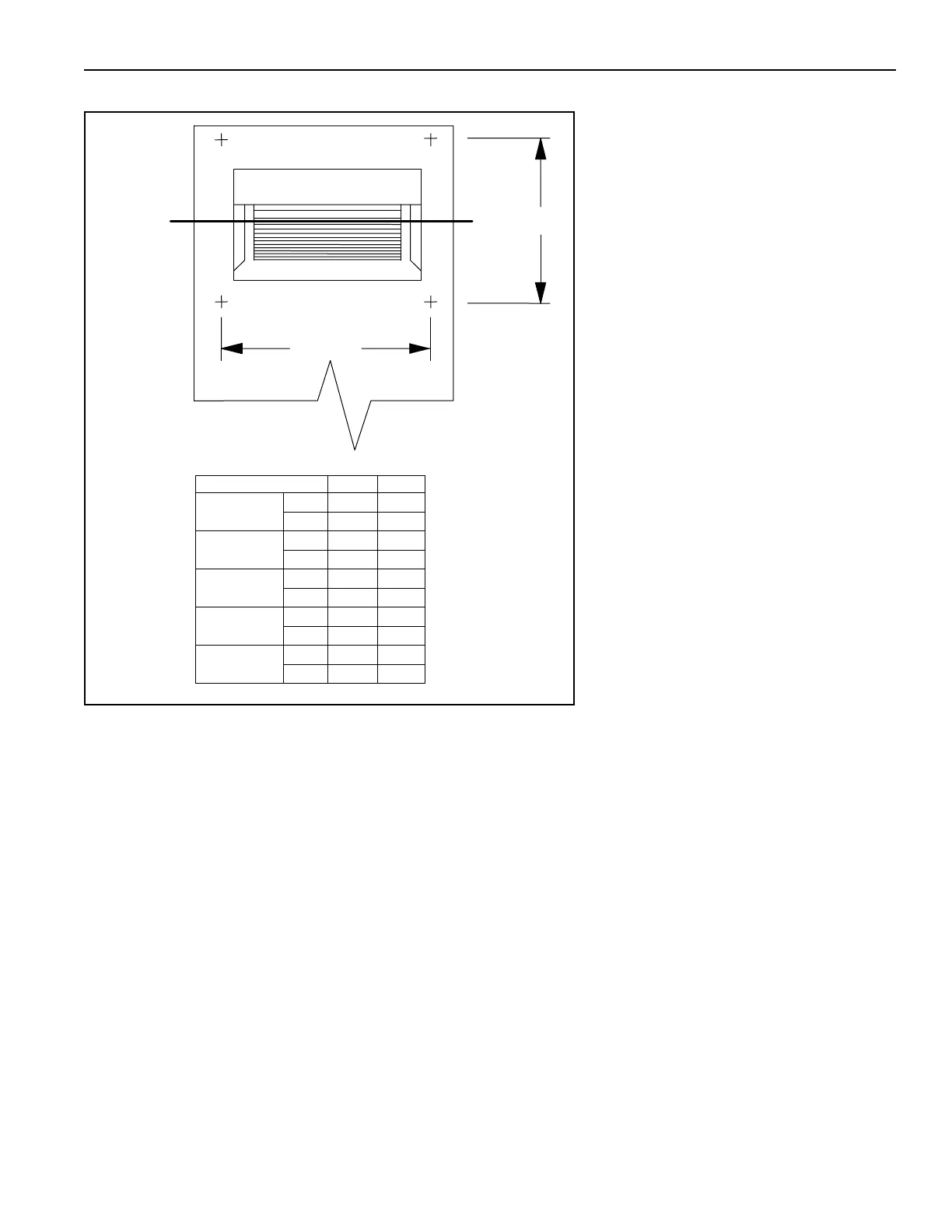

FIGURE 18: Mounting Hole Locations
A
B
Blower
Discharge
Centerline
Model A B
2005
(in)
24.6 22.5
(cm)
62.5 57.1
2010
(in)
32.1 34.0
(cm)
81.5 86.4
2010B
(in)
36.6 36.8
(cm)
93.0 93.4
2020
(in)
40.6 40.3
(cm)
103.1 102.3
2030
(in)
45.7 45.7
(cm)
116.0 116.0
