Raritan PMC-1000 Quick Setup Guide

Power Meter Quick Setup Guid
e
12
QSG
-PMM-1A-v3.3.10-E  255-64-0004-00

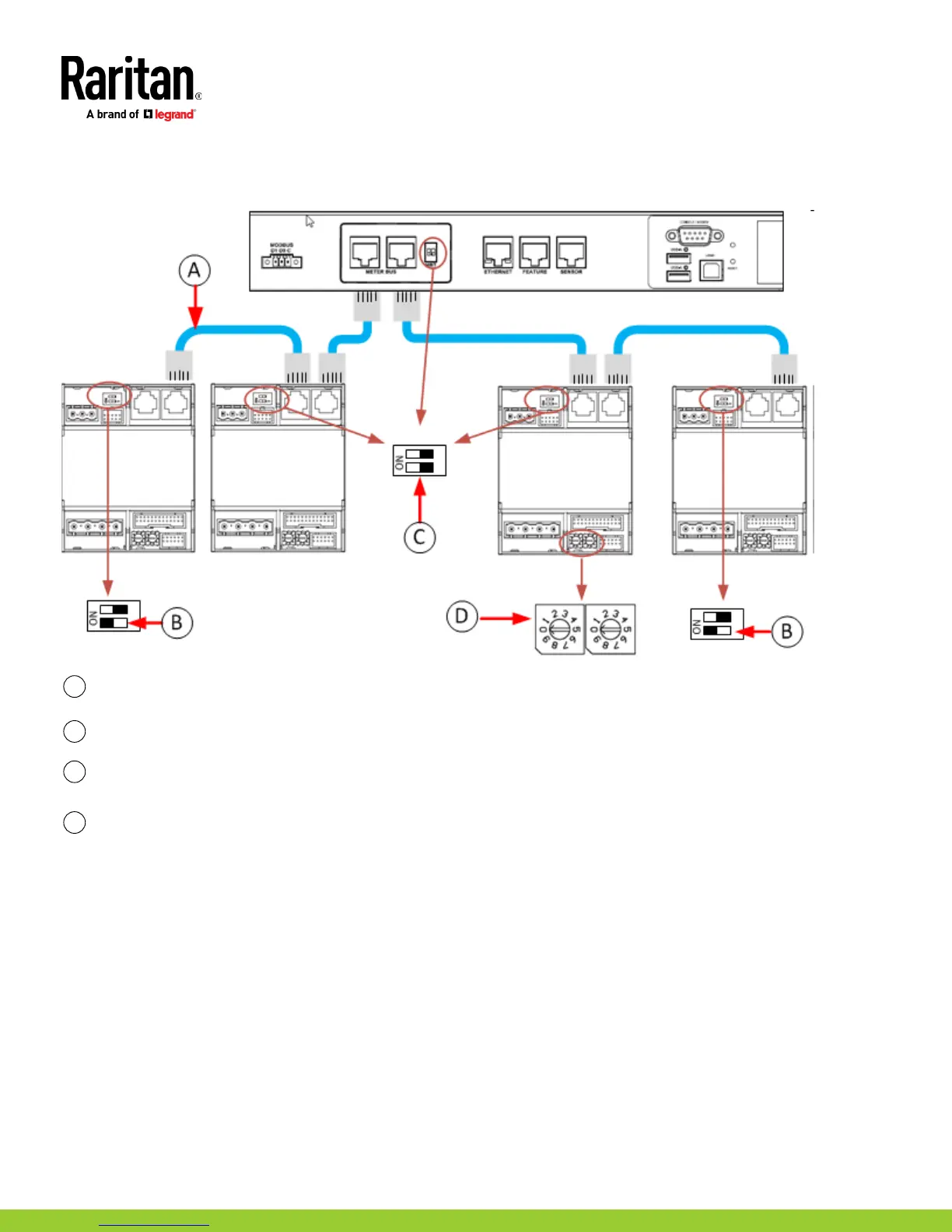

Controller Wiring to Meters
Up to seventy 3-phase power meters (PMM) and eight branch circuit meters (PMM+PMB) are daisy-chain wired to a single controller
(PMC) using shielded cat 5 Ethernet cable. The wiring order of the modules and controller is not important.
A
All cables shielded Cat-5, each cable:100m max.
length.
B
Switch MBT (terminator) ON for devices at ends of
daisy chain.
C
Switch MBT OFF for devices in middle of daisy chain.
D
Assign each meter unique ID:
01-70: PMM without PMB
01-08: PMM with PMB
