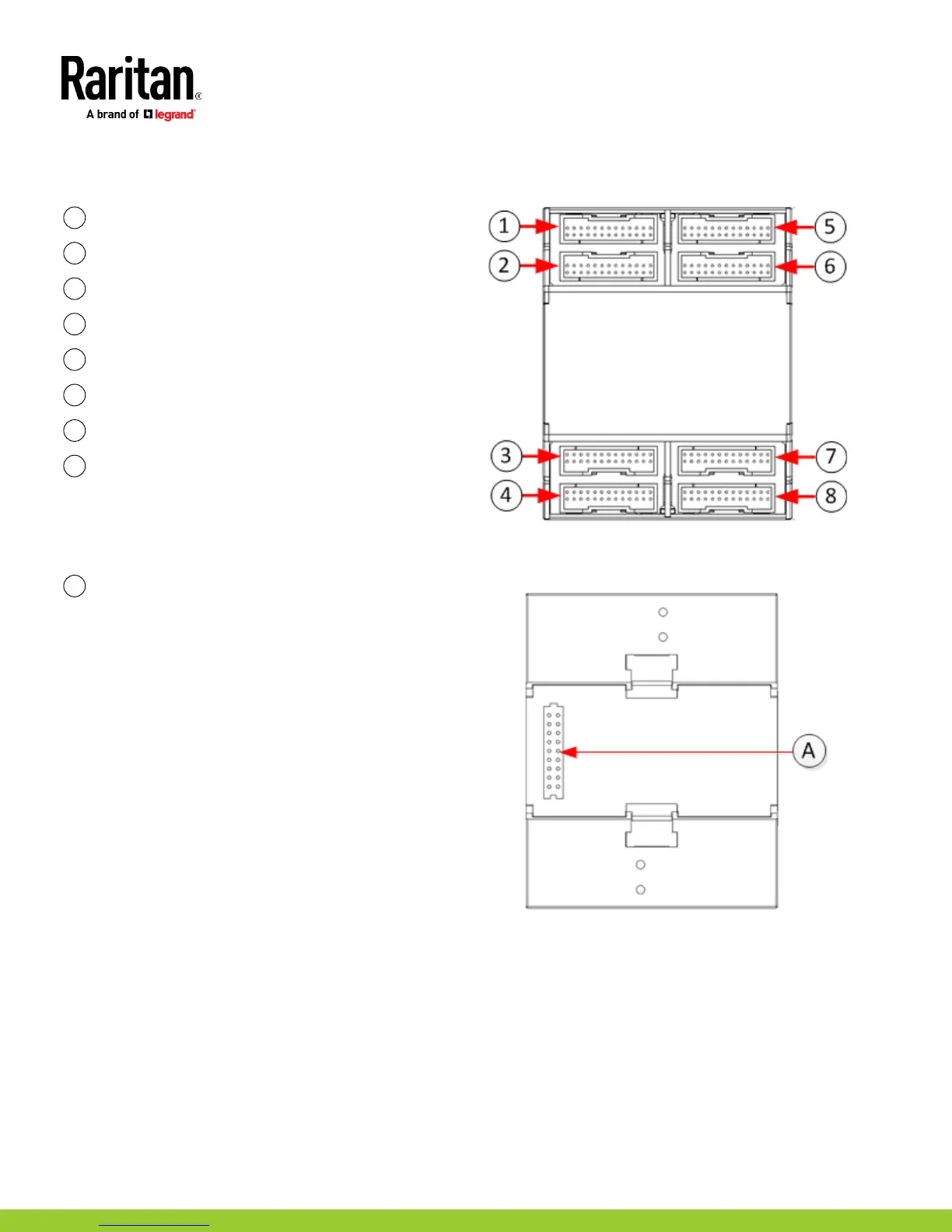

Power Meter Branch Monitor (PMB) Connectors
TOP
1
Multi-conductor cable CT 1 connector.
2
Multi-conductor cable CT 2 connector.
3
Multi-conductor cable CT 3 connector.
4
Multi-conductor cable CT 4 connector.
5
Multi-conductor cable CT 5 connector.
6
Multi-conductor cable CT 6 connector.
7
Multi-conductor cable CT 7 connector.
8
Multi-conductor cable CT 8 connector.
BOTTOM
A
Expansion port. Connects PMB to PMM.
