Product Overview - PM Series Power Meters
Raritan PM series power meters is a modular power metering solution comprising three components.

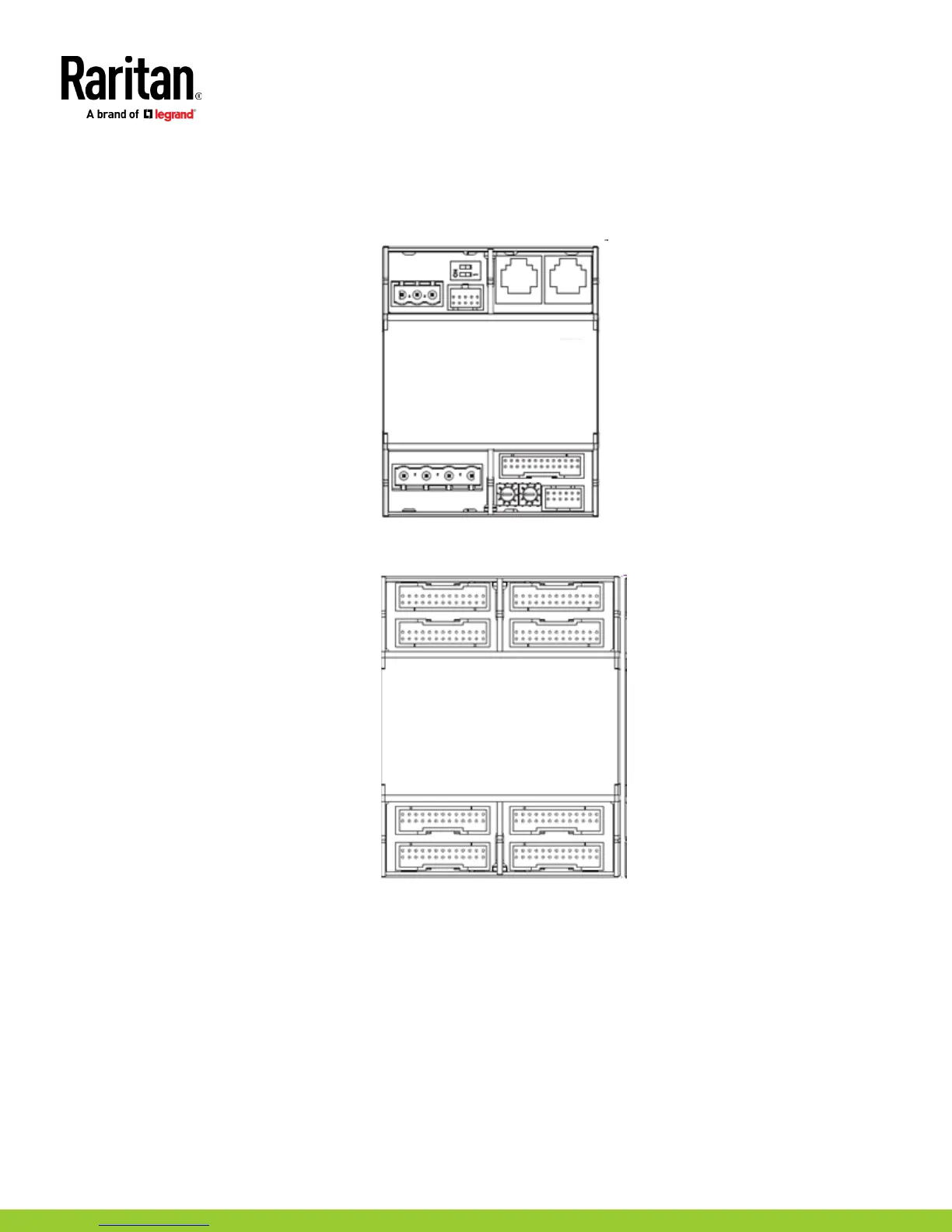

PMM: a 3-phase power meter with neutral and
earth current monitoring.
PMB: a 96 channel branch circuit monitor that
plugs into PMM. A PMM+PMB monitors a panel
board mains and branch circuit.
PMC: power meter controller. One PMC controls
up to 70 PMM or 8 PMM+PMB. Interconnection
uses standard shielded CAT-5 cable. All modules
receive redundant power and continue to function
as long as one or more PMM remain powered.
Raritan PM series power meters are designed for
ease of use:
CTs are available in various ratings and contain
built-in burden resistors so they can be snapped
onto live wires without damage.
CT orientation is not critical because meter
auto-corrects polarity for any CT installed
backwards.
CT connections are made close to branch circuits
using multi-conductor wiring harnesses with
individual CT wire-pairs labeled and terminated
with a keyed connector.
