Power Meter Quick Setup Guid
e
5
QSG
-PMM-1A-v3.3.10-E ļ‚Ÿ 255-64-0004-00

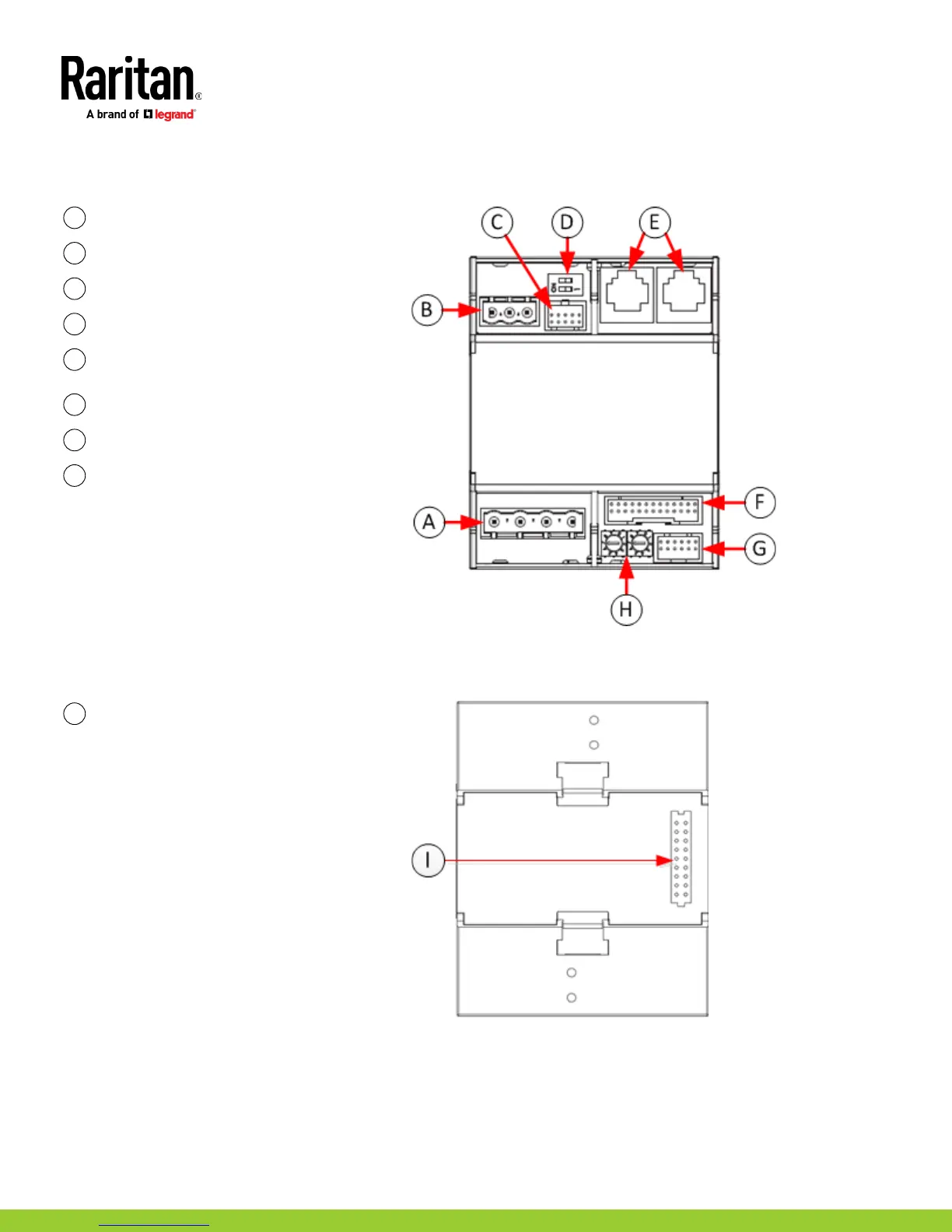

Power Meter (PMM) Connectors and Controls
TOP
A
Voltage measurement.
B
Power
C
Factory use (do not connect)
D
Meter Bus Terminator Switch.
E
Meter Bus Connectors. Connects PMM to
controller.
F
Factory use (do not connect)
G
Multi-conductor cable CT ABCNE connector.
H
Meter ID configuration switch.
BOTTOM
I
Expansion port. Connects PMM to PMB
