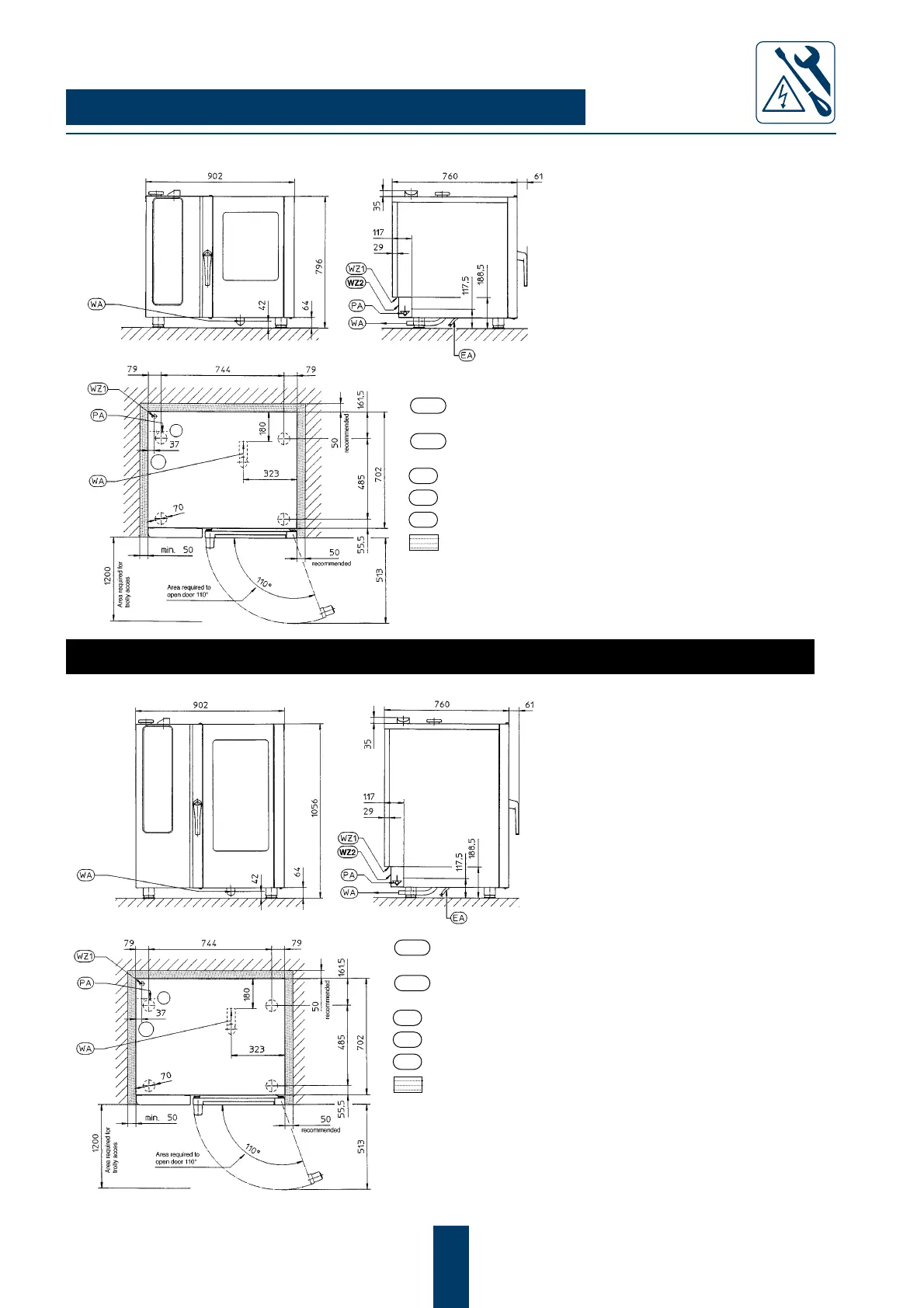

Installation diagram 6 x 1/1 GN
Installation diagram 10 x 1/1 GN
WZ 1 Water supply for standard unit
(using normal line water)
WZ 2 Water supply for optional
treated water connection
WA Drain
EA Electrical connection
PA Earth bonding system
Minimum space
Subject to change without prior notice.
WZ 1 Water supply for standard unit
(using normal line water)
WZ 2 Water supply for optional
treated water connection
WA Drain
EA Electrical connection
PA Earth bonding system
Minimum space
Subject to change without prior notice.
