Service work is to be carried
out by electricians:
Caution! Disconnect the combi-steamer at the
mains before opening the service door and working
on live parts.
1. Changing the interior lighting
When the interior lighting fails to work change the
halogen bulb.
First, switch off the unit.
Cover the outlet inside the unit with a cloth and re-
move the lamp glass by loosening the 4 nuts with an
8 mm spanner.
Remove the frame, the glass and gasket.
Replace the bulb with a 12 volt, 10 W, 300 °C heat
resistant one (Spare part-Nr. 3024.0201).
Do not come into contact with the hot bulb.
Replace the gasket and glass, secure into place.
2. Replacing the door gasket
The door gasket consists of a vulkanized frame which
slots into a guide on the door and is not glued.
In case the door gasket must be changed, pull the old
gasket out of the guide. Clean the guide rails with
soapy water.
Bear in mind when replacing the new gasket that the
lips lie correctly in the guide.
It is recommended that the lips are dampened with
soapy water during assembly.
Door gasket CCD 61 Spare Parts No.
5105.1001
Door gasket CCD 101 Spare Parts No.
5105.1004
Door gasket CCD 102 Spare Parts No.
5110.1074
Door gasket CCD 201 Spare Parts No.
5105.1007
Door gasket CCD 202 Spare Parts No.
5105.1008

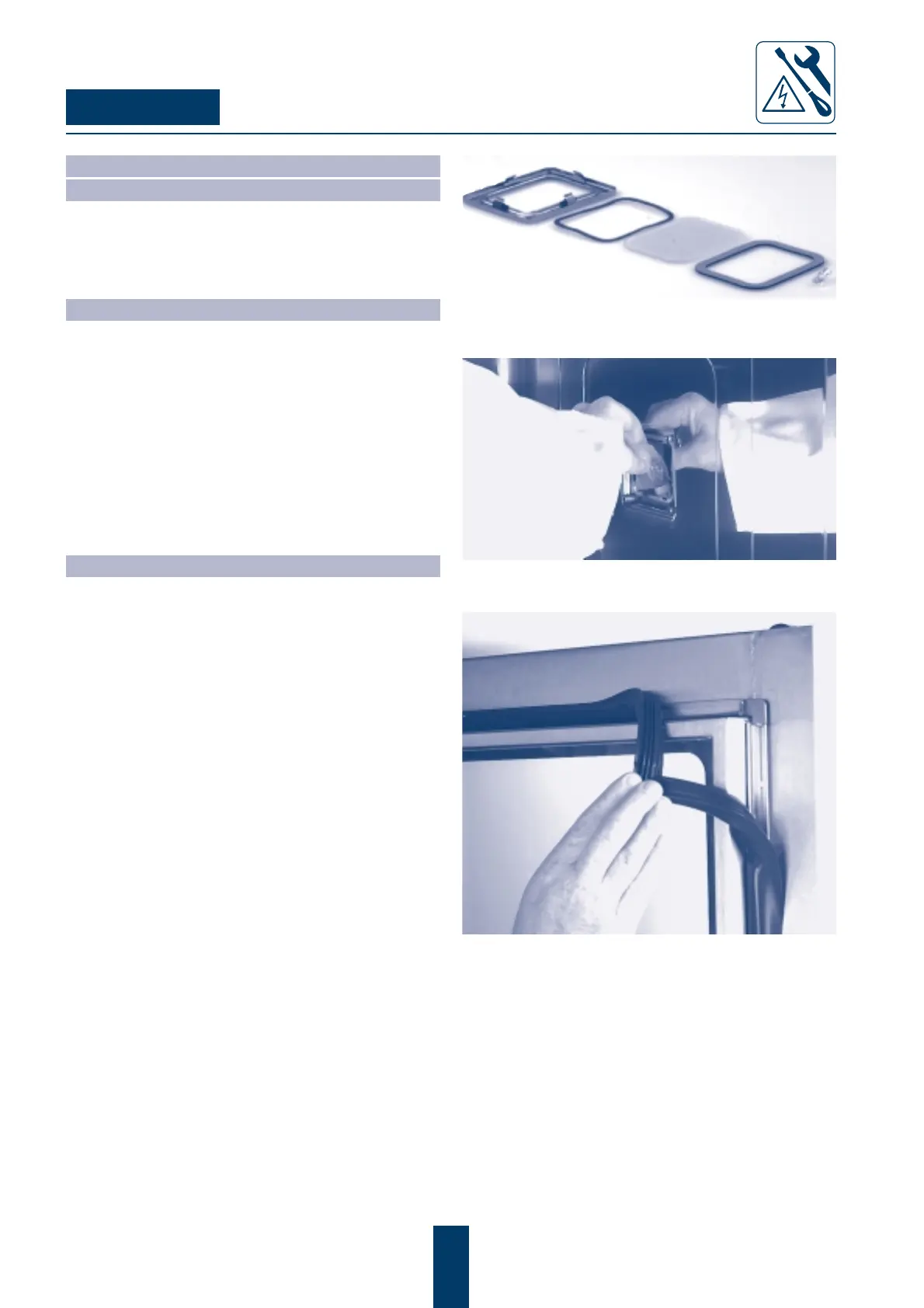

Maintenance
Interior lighting compl./screws, frame, glass gasket, gasket, reflec-
tor bulb).
Insert the halogen bulb.
Door gasket guide.
