55

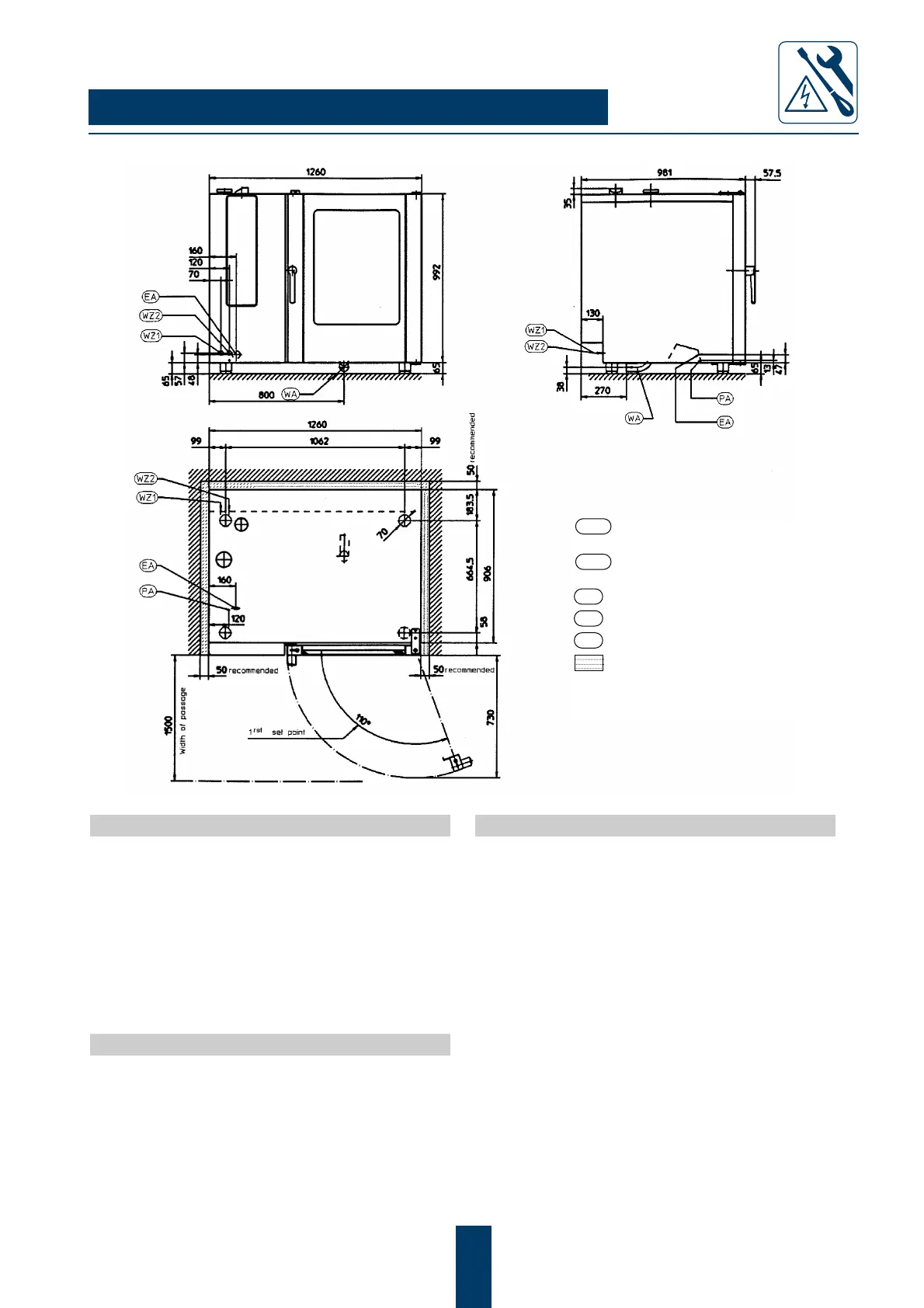

Installation diagram 10 x 2/1 GN
Safety instructions
• The temperature increase of the door glass panes
may exceed 60 degrees kelvin ( 60°C above am-
bient).
• During long interruptions in operation,
the customer-fitted water faucet should be closed.
• Do not clean with high pressure cleaner.
• If the ambient temperature of the Combi-Steamer
is below 0 °C (e.g. transport), please empty water
drain reservoir.
Valid Standards
• Electrical: DIN VDE 0700
EN 60335-1
EN 60335-2-42
• Water drain: DIN 1986, Part 1
• Water feed: DIN 1988, Part 4
Customer Fittings
To be provided on site:
• Shut-off valve for water connection.
• All pole electrical isolator.
• Drainpipe with water trap and constant slope.
WZ 1 Water supply for standard unit
(using normal line water)
WZ 2 Water supply for optional
treated water connection
WA Drain
EA Electrical connection
PA Earth bonding system
Minimum space
Subject to change without prior notice.
