STEERING SYSTEM INSTALLATION | CRX + SC1 | RAVEN EUROPE GENERIC
PAGE 27/36 | Installation manual | 016-8000-014EN | Rev. A1
Hint!:
It is often useful to drill bigger holes (slots) in
the wheel angle sensor strip for the sensor disc.
Allow the nuts to be loose-fit when mounting
the strip. The disc then centers itself
automatically. Do not forget to tighten the nuts
again.
Caution!:
Make sure the magnet of the wheel angle sensor
is completely clean (no iron fillings) before
mounting it. Cleaning the wheel angle sensor
magnet with compressed air can prevent
problems.

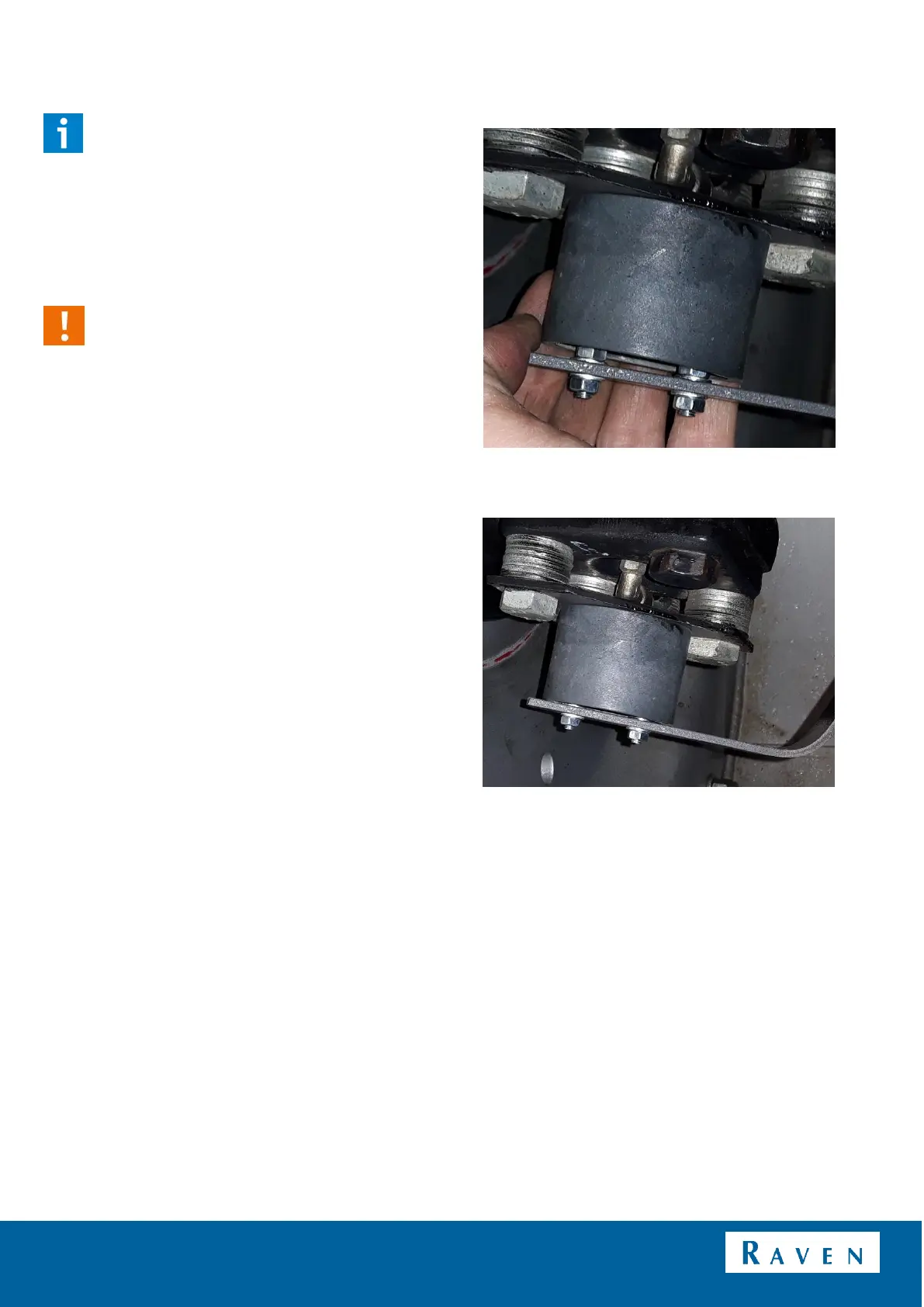

FIGURE 29 CENTRE AND FRICTION CHECK OF
WHEEL ANGLE SENSOR.
FIGURE 30 CORRECT MOUNTED WHEEL ANGLE
SENSOR
