PAGE 34/36 | Installation manual | 016-8000-014EN | Rev. A1
CRX INSTALLATION | CRX + SC1 | RAVEN EUROPE GENERIC
3 CRX INSTALLATION
MOUNTING THE CR7
The following guidelines have been established for
mounting the terminal (Figure 44):
Always contact the customer about the
terminal position in the cabin.
Always use a RAM-C ball attachment. (Figure
46 & Figure 46)
Mount the terminal free of vibrations with a
solid bracket. A variety of mounting brackets
are available for this purpose.
Secure all cables in the cabin.
Mount in such a way that the display is
directed straight towards the driver.
Mount in such a way that driver has a clear
view all around.
Hint!:
Mount the terminal in such a way that it
does not obstruct the view of the driver over
the top of the right-hand fender, but also so
that the inside of the front wheel on the
ground is still clearly visible.

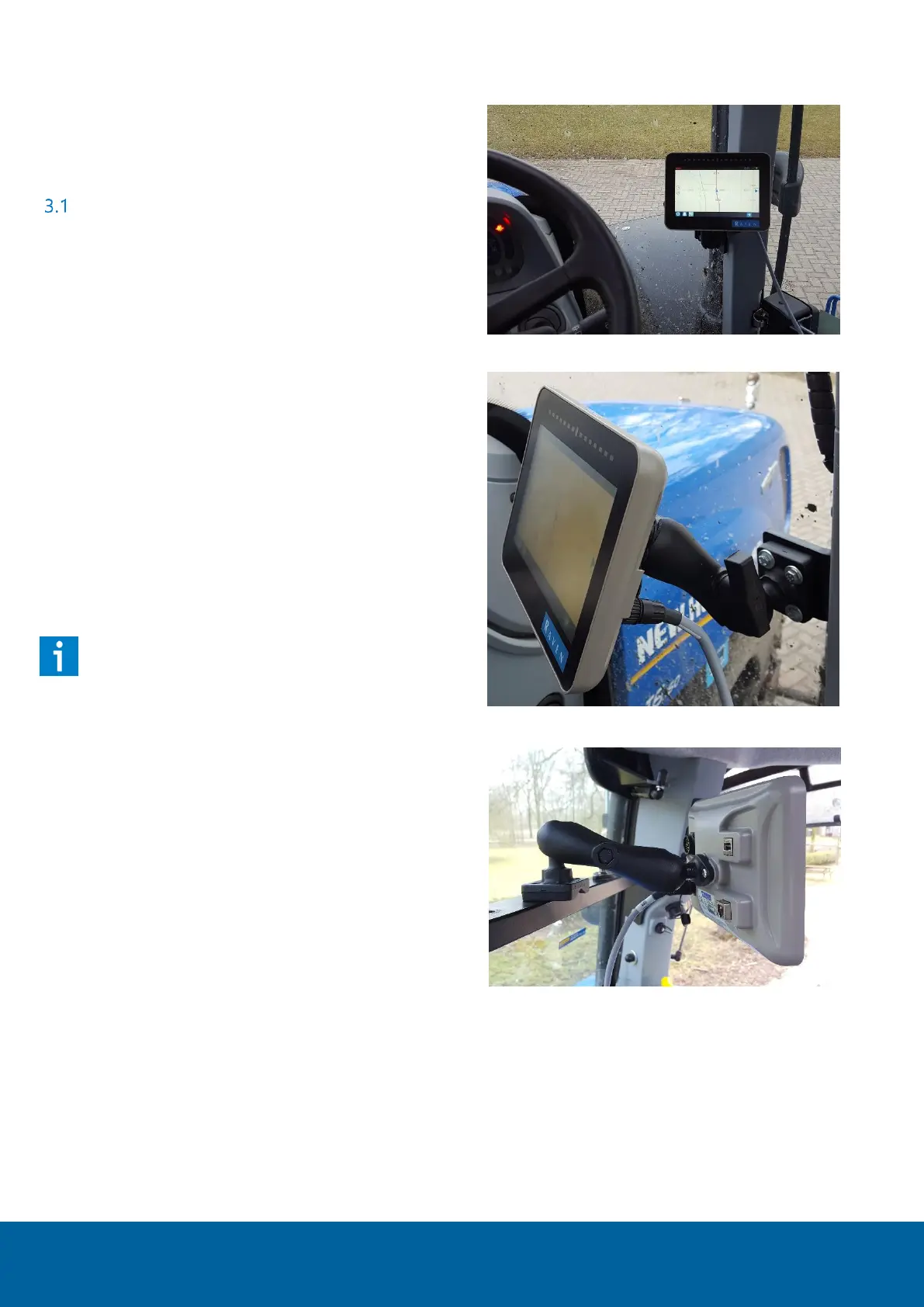

FIGURE 44 CR7 ON A-PILLAR
FIGURE 45 RAM-C BALL ATTACHEMENT
