Install SC1™/TC1™ with DirecSteer

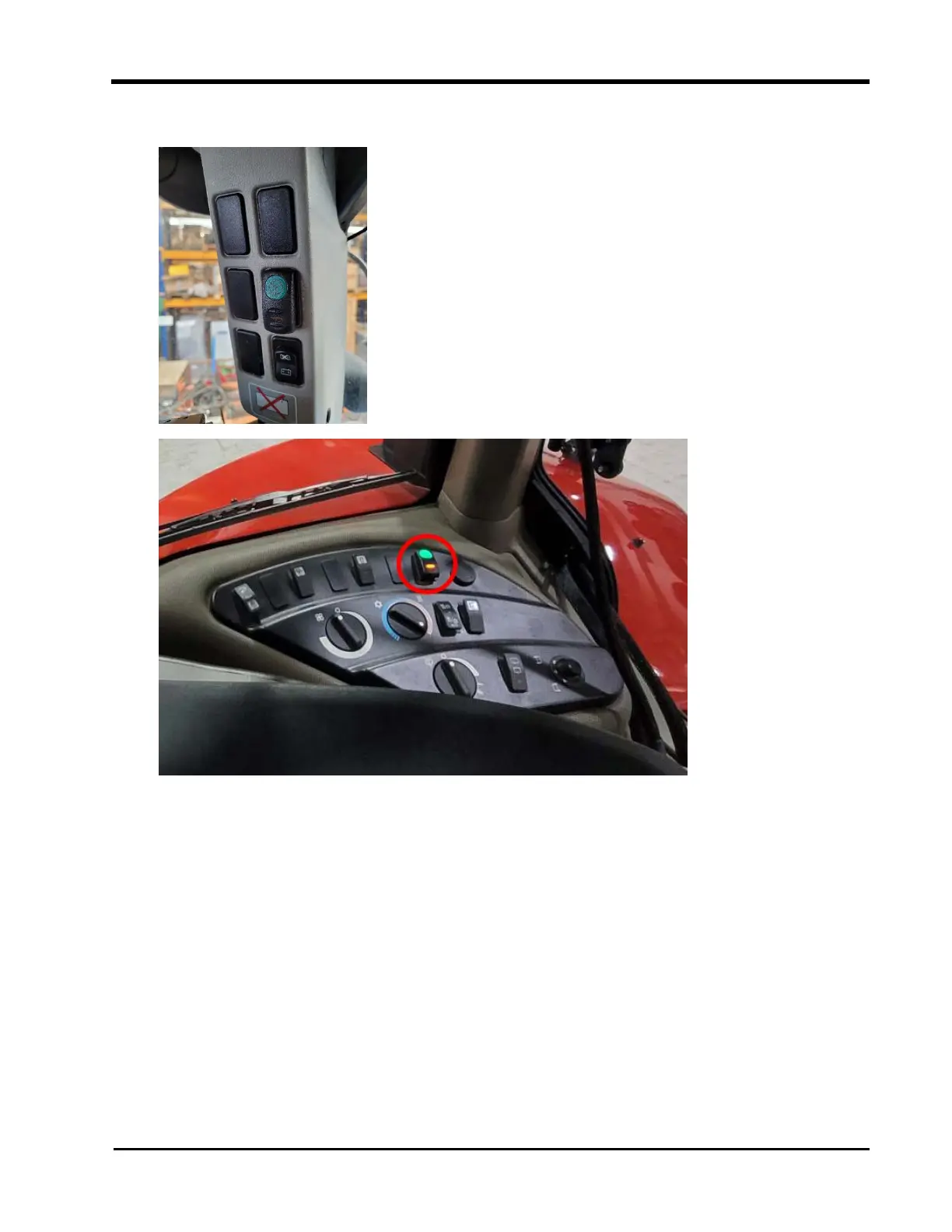

9. Press the switch assembly into the cavity to seat the switch.
Note: If needed, use the supplied switch adapter (P/N 412-8000-037) when installing
in a larger sized cavity.
65
