P/N 016-5032-114 Rev. A 17
HYDRAULIC SYSTEM INSTALLATION
INSTALL THE PRESSURE AND TANK HOSES

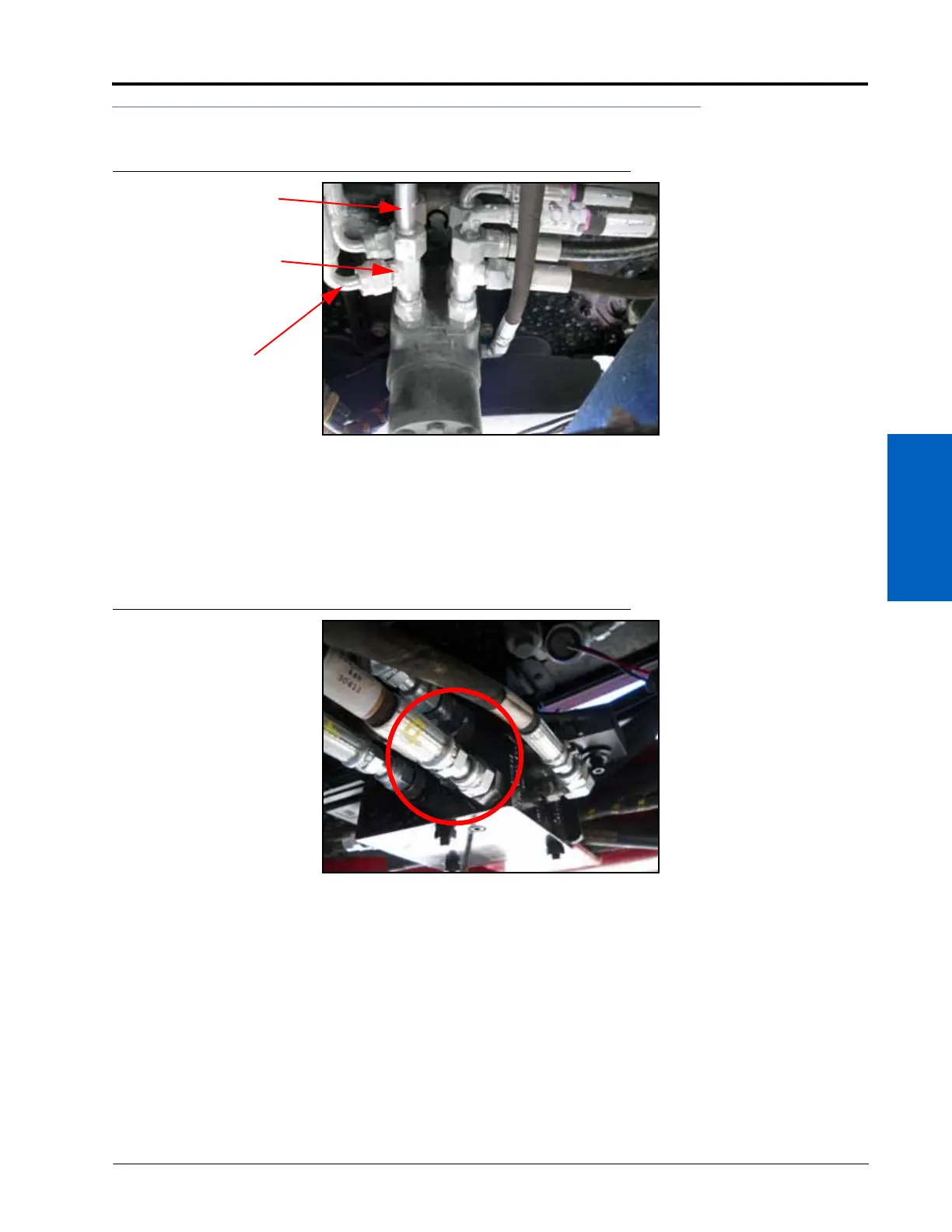

FIGURE 6. Pressure Hose Installed on Steering Orbital
1. Disconnect the machine’s pressure hose from the steering orbital.
2. Install a -8 ORFS M/M/F swivel run tee adapter fitting (P/N 333-0012-028) in the open port of the steering
orbital.
3. Connect the machine’s pressure hose to the opposite end of the installed tee fitting.
4. Install the 90° end of the supplied hydraulic hose (P/N 214-1000-948) on the 90° end of the installed tee fitting.
FIGURE 7. Pressure Hose Installed on Steering Valve
5. Connect the straight end of the installed hydraulic hose to the fitting installed in Port P of the steering valve
(P/N 334-0003-094).
-8 ORFS M/M/F Swivel
Run Tee Fitting
(P/N 333-0012-028)
Machine’s Pressure
Hose
Installed Hydraulic
Hose
(P/N 214-1000-948)
To Next Page
