P/N 016-5032-114 Rev. A 29
CAB COMPONENT INSTALLATION

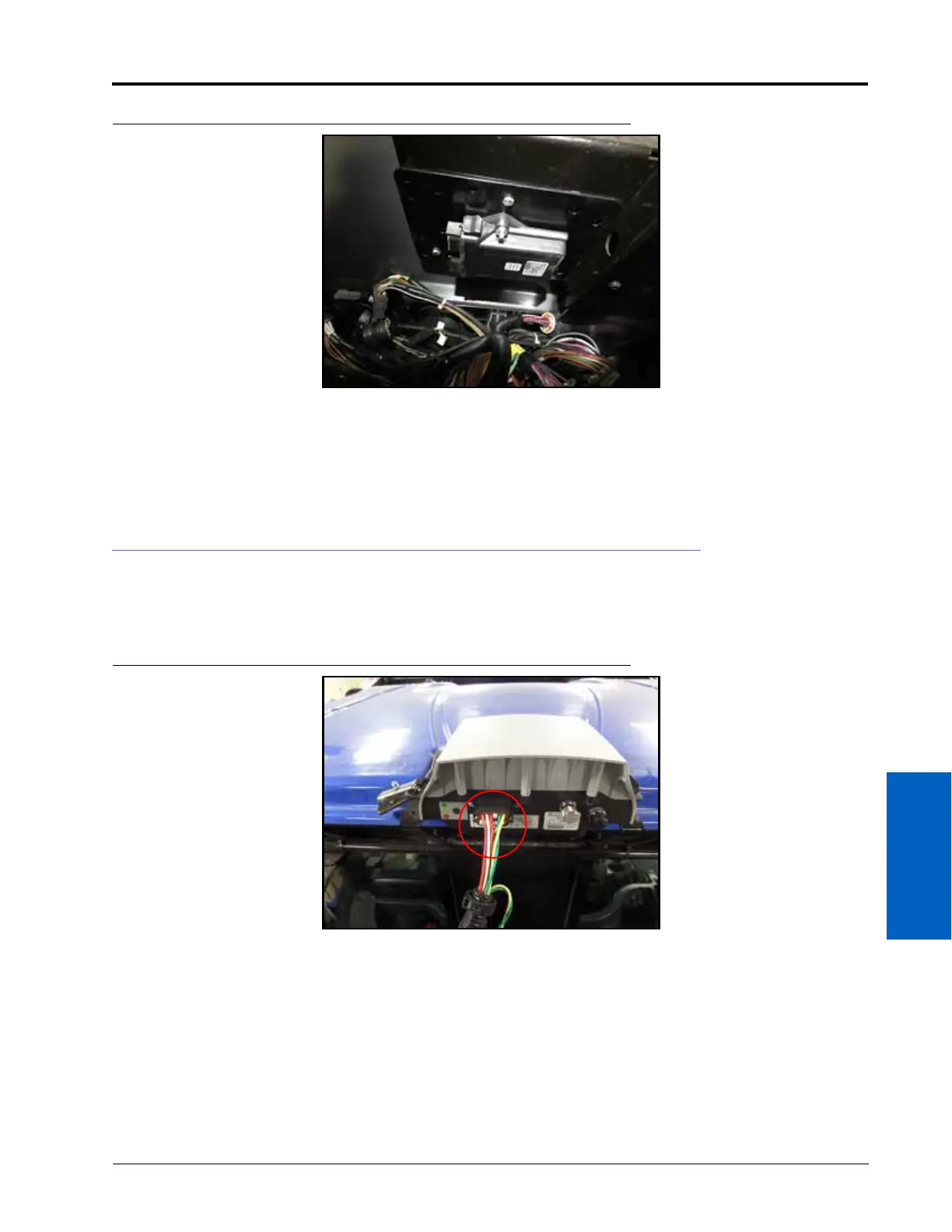

FIGURE 5. HDU Installed
3. Install the HDU mounting bracket (P/N 107-0172-543) on the machine’s existing plate using three M6 1.0 x 20
mm class 5.8-8.8 flanged bolts (P/N 311-0070-051).
4. Install the HDU (P/N 063-0173-887) on the HDU mounting bracket using two 1/4”-20 lock nuts (P/N 312-1001-
168).
INSTALL THE RS1 CABLES
INSTALL THE RS1 HARNESS
FIGURE 6. RS1 Harness Installed on RS1 Unit
1. Connect the black 12-pin connector of the RS1 harness cable (P/N 115-4010-064) to the back of the RS1 unit.
