WHEEL ANGLE SENSOR (WAS) INSTALLATION

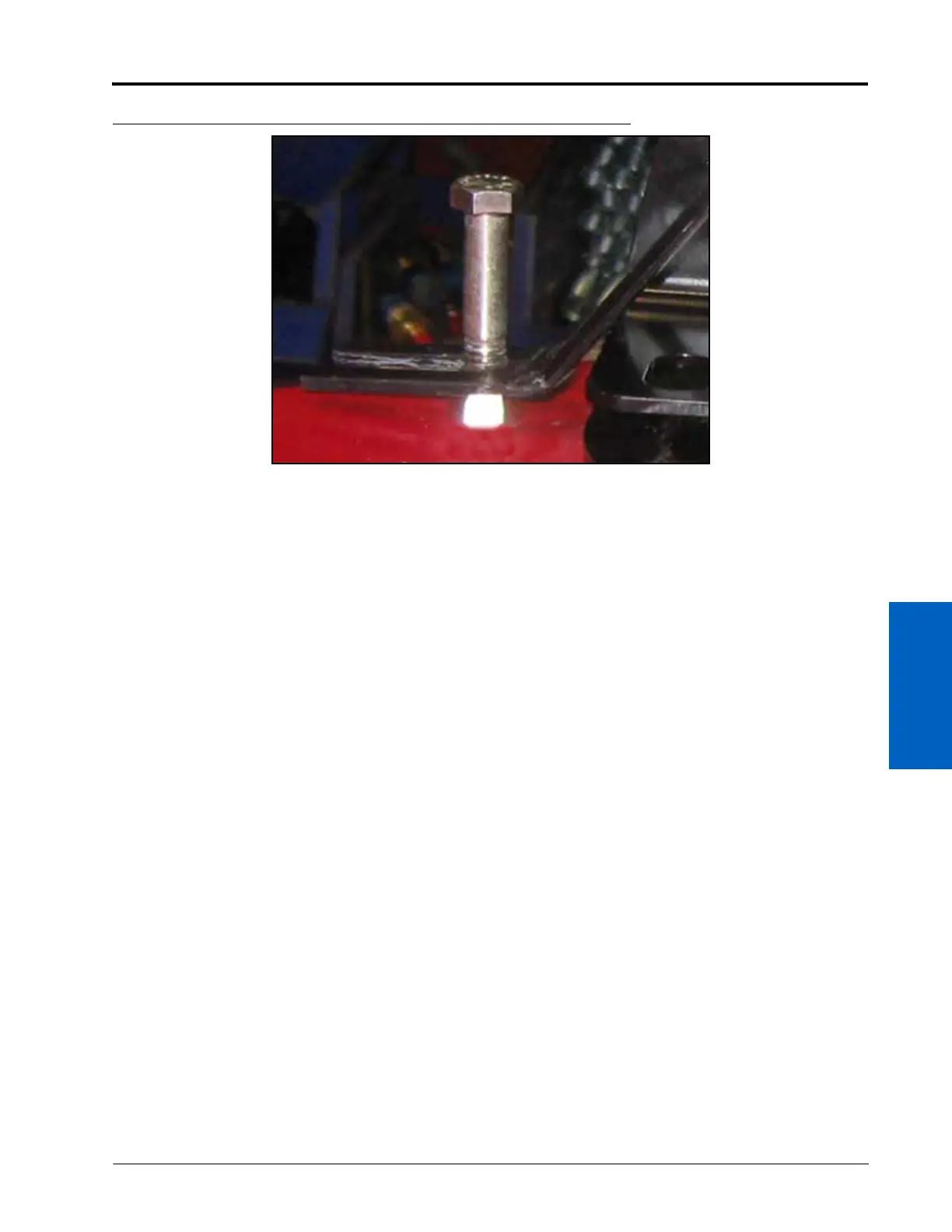

FIGURE 5. Arm Bracket Secured
9. Thread the 3/8”-16 zinc flanged lock nut onto the end of the 3/8”-16 hex bolt.
• 2 wheel steer machines - Use the 3/8”-16 x 3” hex bolt (P/N 311-0054-113).
• 4 wheel steer machines - Use the 3/8”-16 x 2” hex bolt (P/N 311-0054-109).
10. Insert the bolt into the slot on the WAS arm bracket so that the prongs of the bracket are positioned between
the bolt’s head and the nut.
11. Screw the bolt into the hole in the steering leg.
12. Tighten the nut on the end of the bolt until it is snug against the steering leg.
