CAB COMPONENT INSTALLATION

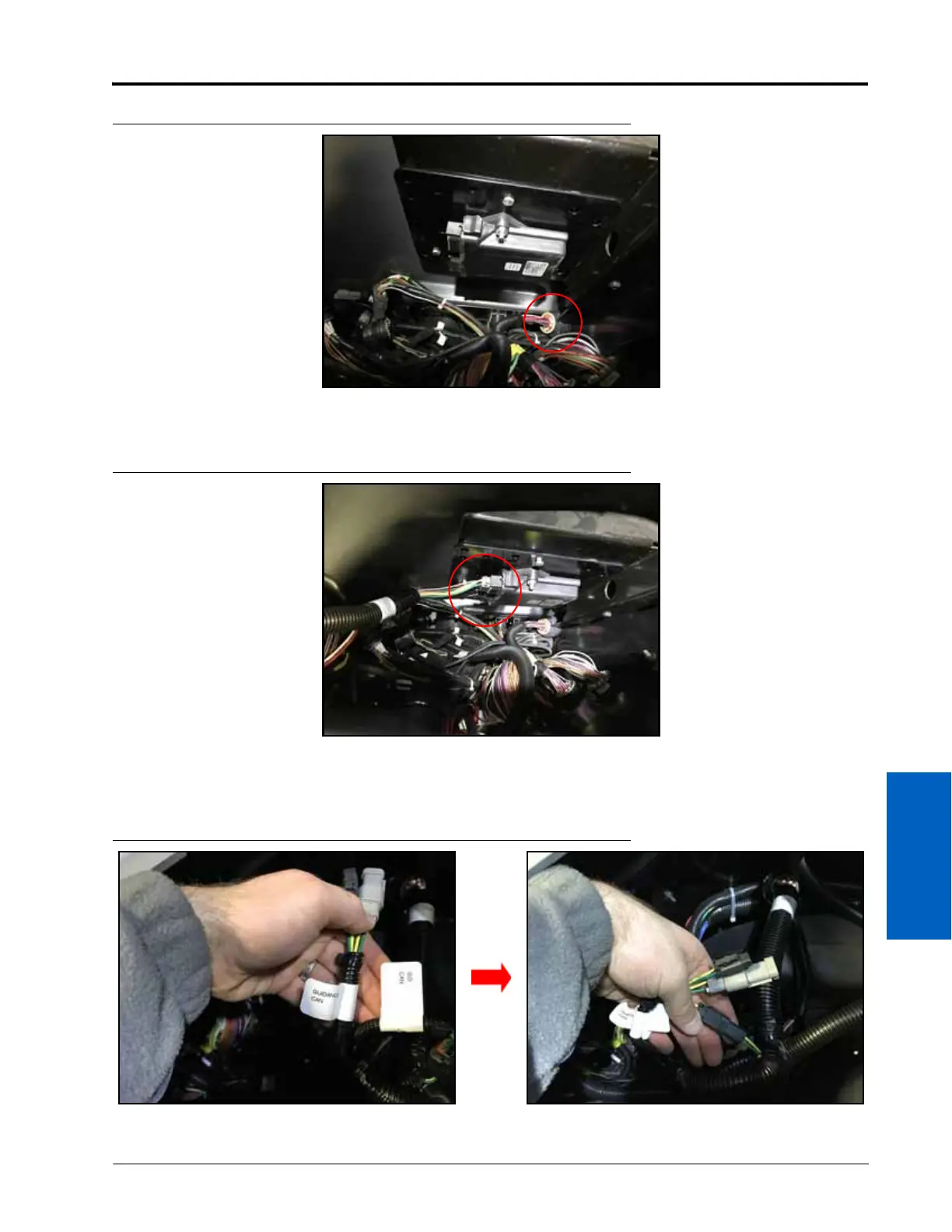

FIGURE 9. HDU Harness Bulkhead Connector Connected to Machine’s Bulkhead
3. Connect the CAN/PWR connector of the HDU harness to the machine’s bulkhead connector labeled AR064.
FIGURE 10. HDU Harness Connectors Connected to HDU
4. Install the two rectangular connectors of the HDU harness into the mating ports of the HDU (P/N 063-0173-
887).
FIGURE 11. CAN Connection
