CHAPTER 5
34 Miller Nitro 5000 Series & New Holland Guardian F Series RS1™ HDU Guidance and Steering Installation Manual

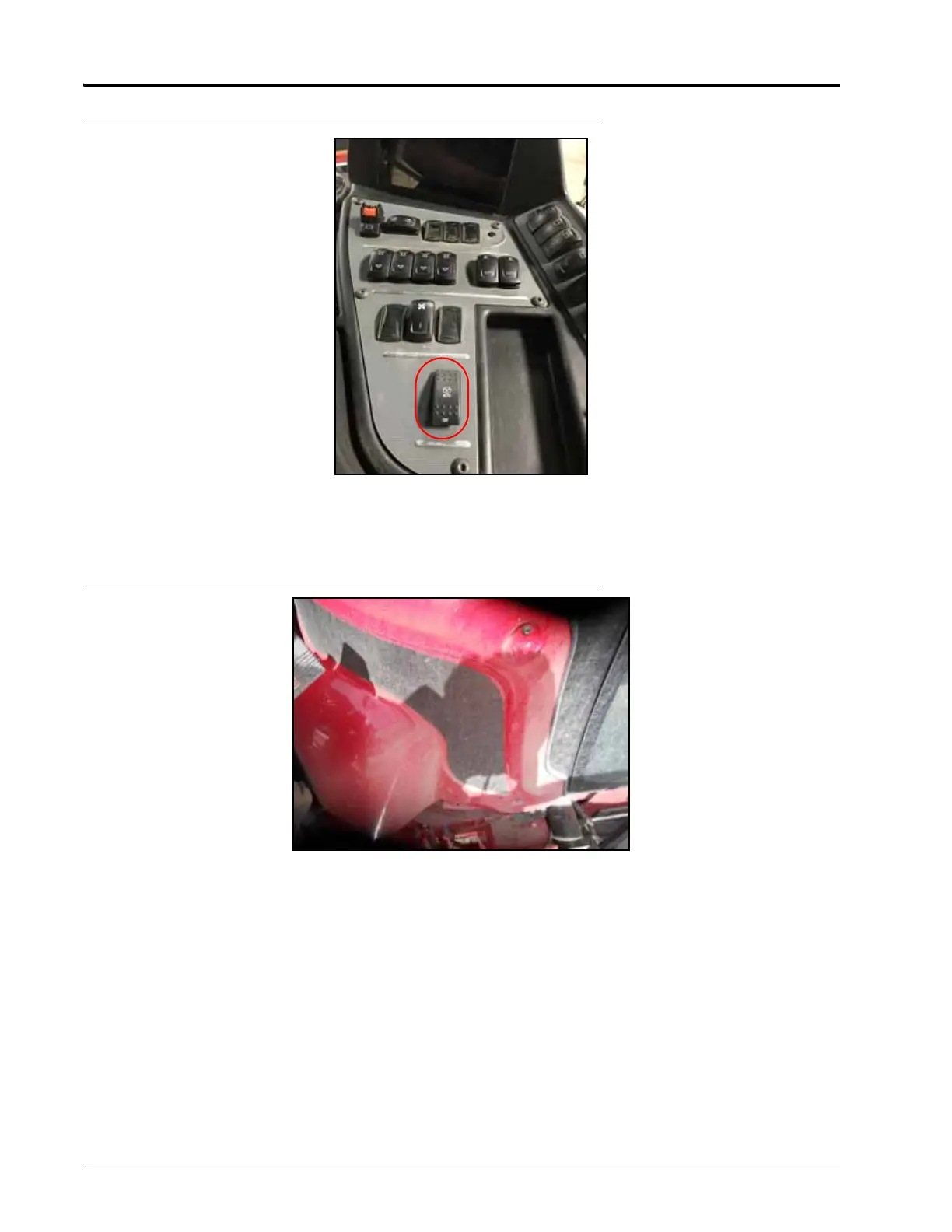

FIGURE 16. Steering Lockout Switch Installed
11. Replace the side console cover.
12. Press on the switch casing to ensure the switch is securely installed.
FIGURE 17. Shroud to be Removed
13. Remove the plastic shroud located on the outside of the machine, in the right-rear corner of the cab.
