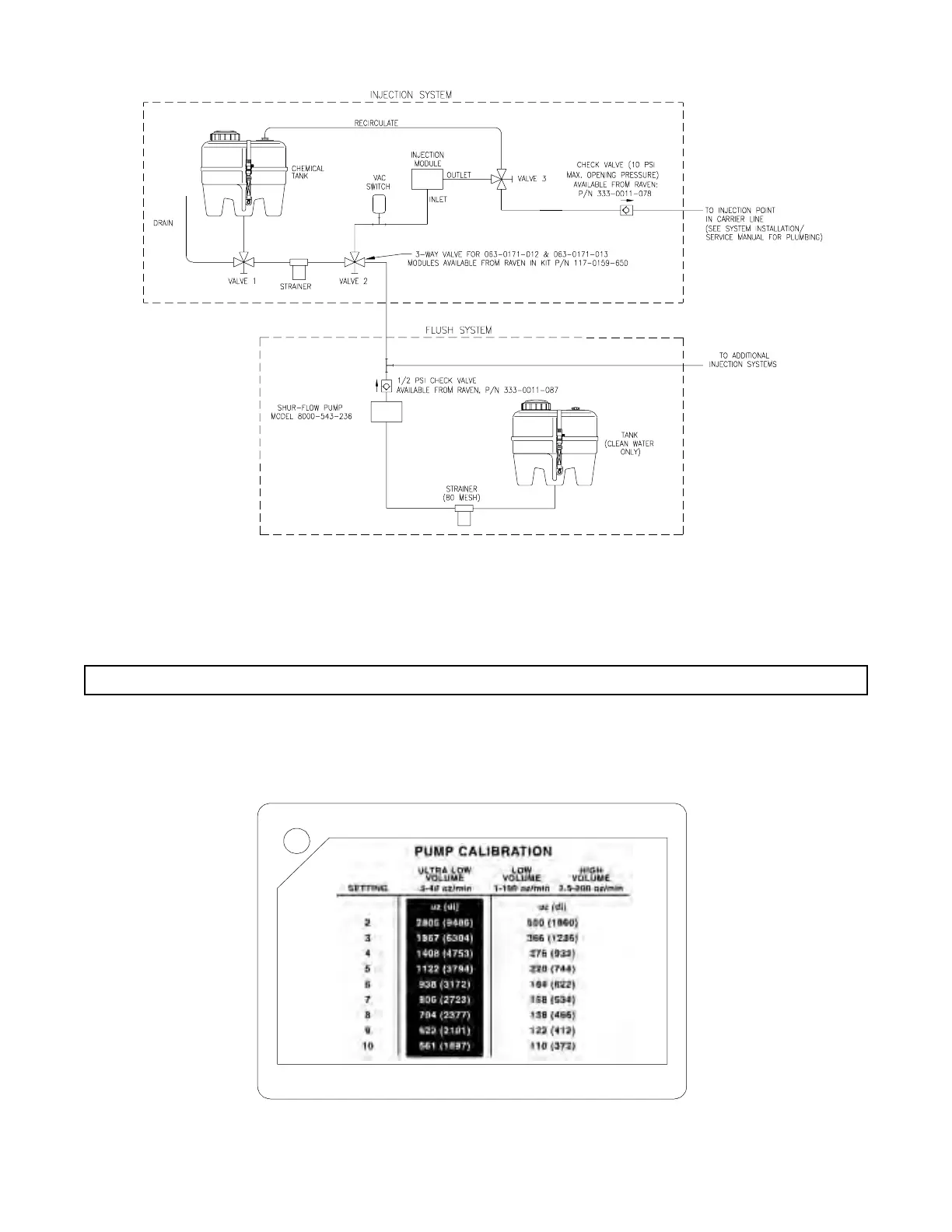

FIGURE 10
3.
DETERMINING INJECTION MODULE "METER CAL"
1)
Use the calibration tag attached to the Injection Pump (reproduced below) to determine the
METER CAL for each product used.
NOTE:
Product METER CALS are oz (dl) per unit.
