15
1. REQUIRED CONSOLE PROGRAMMING
When power is first applied to the console, after all installation procedures have been completed,
the Console will flash "CAL" in the PROD 1 and PROD 2 displays. This means it must be "calibrated"
or programmed before it can be operated. This is a one-time operation which does not have to be
repeated. Turning OFF the POWER ON/OFF Switch does not affect the Console memory. All data
is retained.

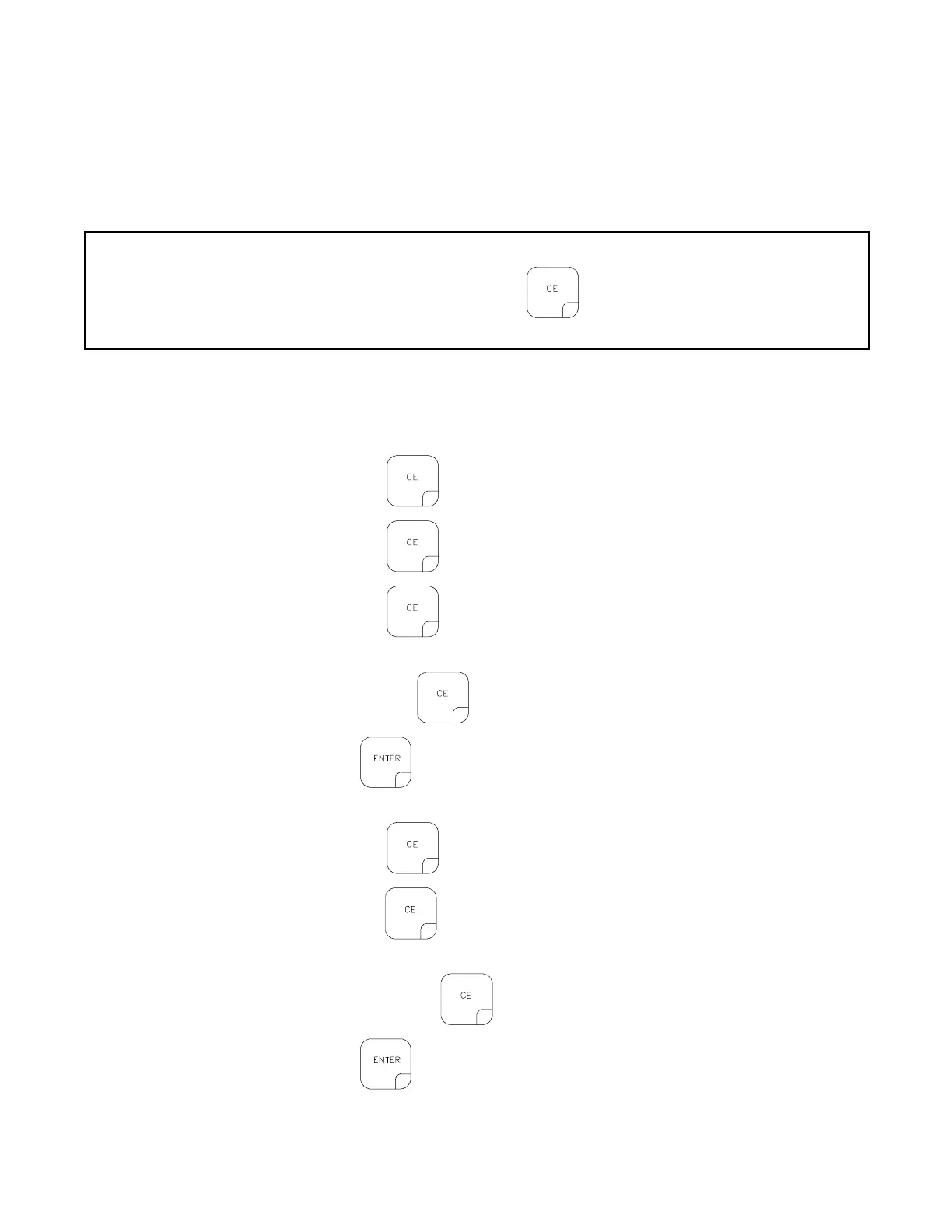

IMPORTANT:If an entry selection error is made during Steps 1-6, place the
POWER ON/OFF switch to OFF. Depress
and hold while placing the
POWER ON/OFF switch to ON. This will "reset" the Console.
The PROD 1 and PROD 2 display will show "CAL", the DATA display will show "US". The following
steps must be followed:
1) Displaying units of measure selections: US (acres), SI [hectares], or TU {1000 sq. ft.).
a) Depressing momentarily
steps the DATA display from US to SI.
b) Depressing momentarily
steps the DATA display from SI to TU.
c) Depressing momentarily
steps the DATA display from TU to US.
2) Selecting a unit of measure (US, SI, or TU).
a) To select US, SI, or TU, step
until the desired code is displayed in DATA display.
b) Momentarily depress
. The DATA display will now display SP1.
3) Displaying Speed Sensor selections: SP1 (wheel drives, etc.) or SP2 (radar sensor).
a) Depressing momentarily
steps the DATA display from SP1 to SP2.
b) Depressing momentarily
steps the DATA display from SP2 to SP1.
4) Selecting a Speed Sensor (SP1 or SP2).
a) To select SP1 or SP2, step with
until desired code is displayed in DATA display.
b) Momentarily depress
the DATA display will now display 1-Sd.
