CaseIH MxM Series Maxxum SmarTrax Supplement & Installation Manual
8

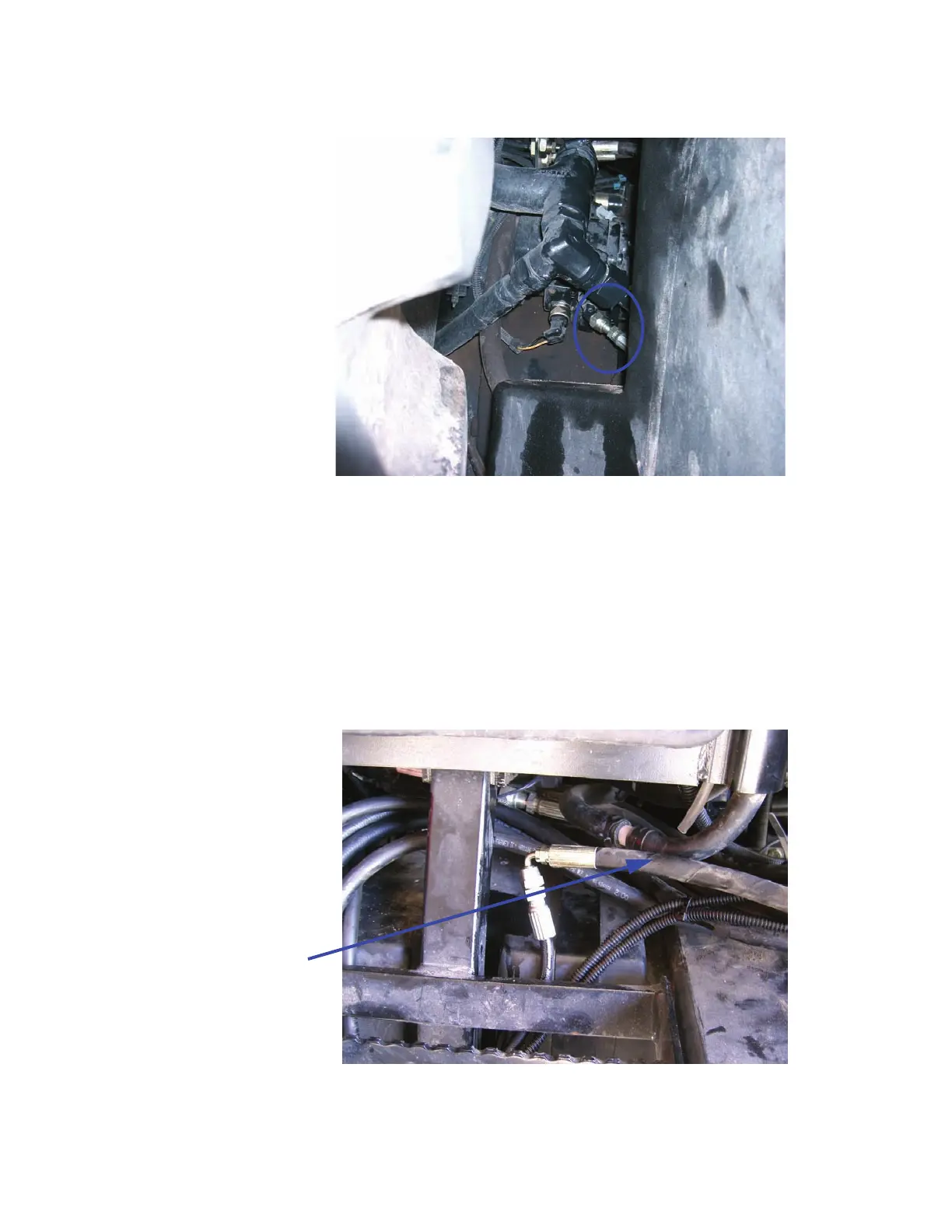

3. Attach the 90 degree end of the supplied hose (P/N 214-1000-443) to
the open Load Sense Port on the tractor pump.
4. Route the hose to the SmarTrax valve and connect it to the LS PV Port
using a 90 degree fitting.
5. Attach the 90 degree end of the supplied short adapter hose (P/N 214-
1000-447) to the LS Steer Port.
6. Route the original steering load sense line to the SmarTrax valve and
connect it to the adapter hose that is attached to the LS Steer Port.
Original LS
Line
