IMPORTANT: DURING BURNER REMOVAL CARE
MUST BE TAKEN NOT TO DAMAGE THE CERAMIC
FIBRE INSULATION.
SEE FIGS. 2, 3 & 4
COOKER BURNER - SEE FIG. 3
1. Unscrew jubilee clip and remove flexi air intake.
2. Using a 13mm spanner, unscrew top securing bolt and
remove burner by rotating clockwise and drawing it
away from the cooker.
BOILER BURNER - SEE FIG. 4
1. Place a sheet on the floor in the front of the cooker to
act as a working area.
2. Remove lower LH door and burner aperture cover and
store in a safe place.
3. Unscrew jubilee clip and remove flexi air intake pipe
from burner.
4. Using a 13mm spanner, remove top securing bolt and
remove burner by rotating it approximately 90°.
counterclockwise and drawing it away from the boiler.
6

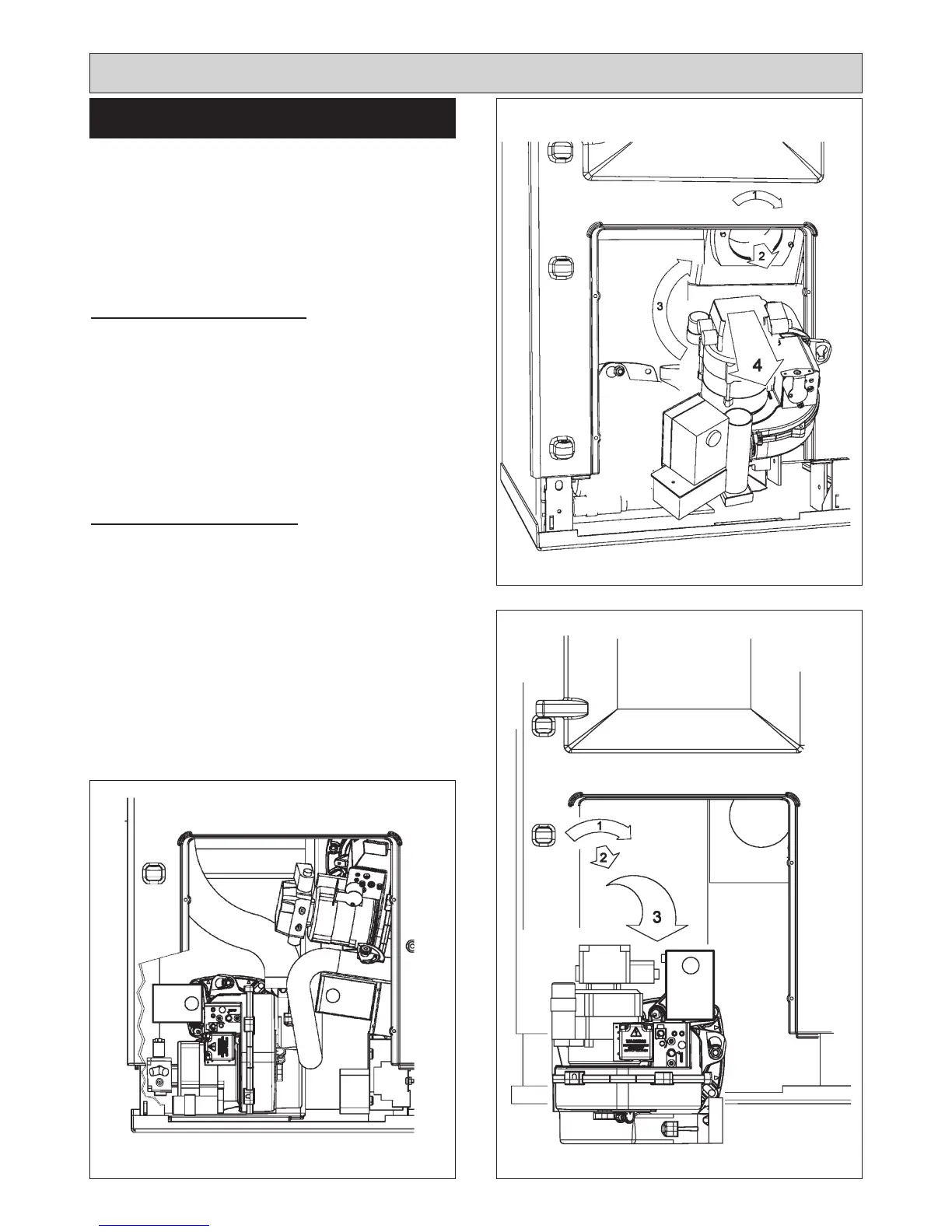

BURNER REMOVAL
Fig. 2
Fig. 3
Fig. 4DESN 515959 DESN 515960
DESN 515961
Burner Removal
