Rayburn 680KCD - Hotplate Removal

SEE FIG. 8
1. Remove top oven door and place in a safe position.
(Rayburn 680KCD only)
2. Remove rear and base access doors use hex. driver.
3. Thoroughly clean top, side and base flueways through
access apertures with brush.
4. Remove all debris with vacuum cleaner.
5. Replace rear and base access doors. Secure in
position using hex. driver.
6. Brush and clean in between hotplate ribs on
underside.
7. Examine soft rope seal located around hotplate
aperture in top plate and rope seal on hotspot.
Replace if frayed or damaged.
8. Replace hotplate.
SEE FIG. 9
1. Lift up two insulating lids on the top of the cooker.
2. Using a 7mm allen key, unscrew 2 countersunk
retaining bolts.
3. Insert M12 eye hooks into hotplate (See Fig. 8).
4. Using lifting hooks, lift hotplate vertically and withdraw.
5. Re-assemble in reverse order, noting that it is
recommended to coat the countersunk bolts with anti-
seize compound prior to fitting.

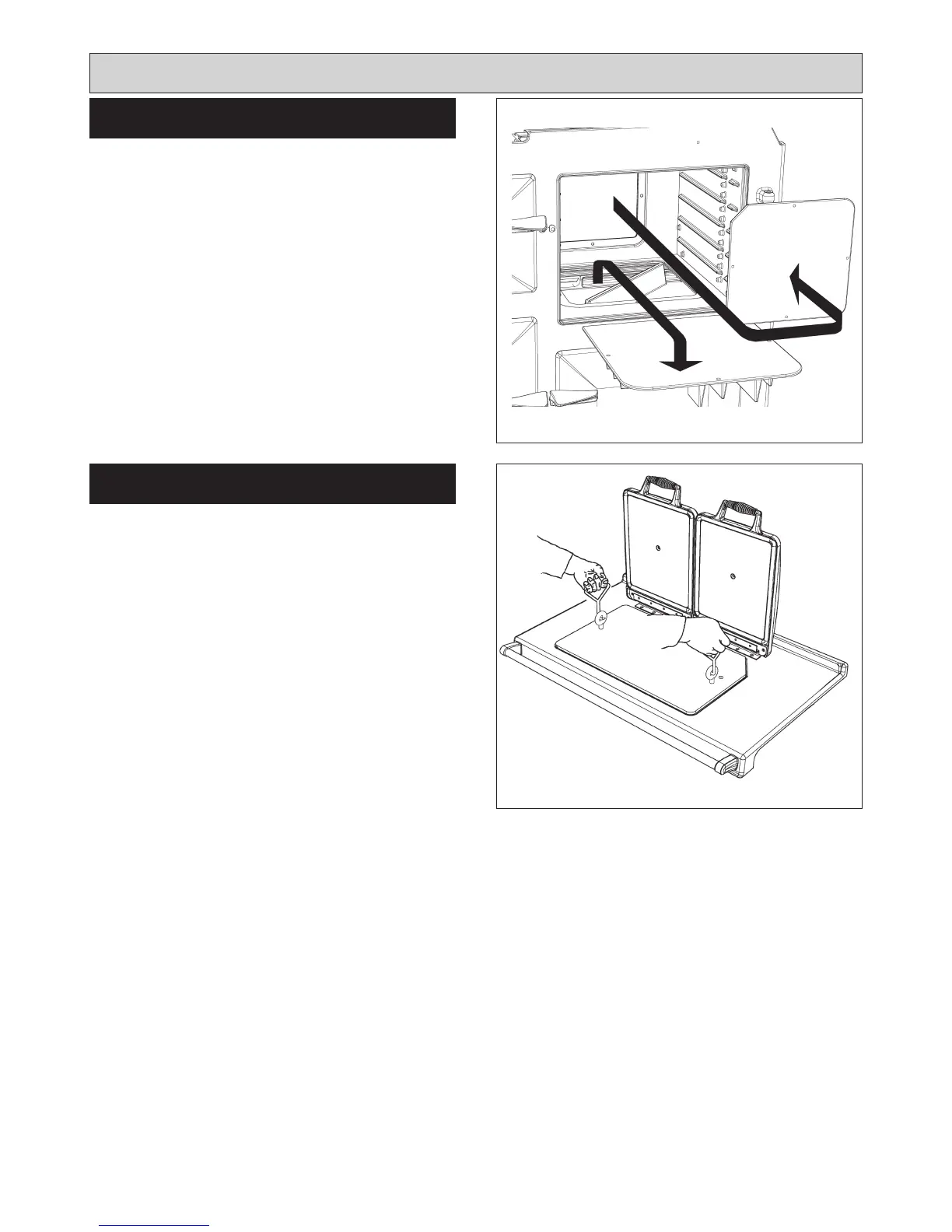

Fig. 8 DESN 515764
Fig. 9 DESN 515910
Cleaning
OVEN & HOTPLATE FLUEWAY
CLEANING
9
HOTPLATE REMOVAL
