Raycus RFL-C2000 User Manual

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide of RFL-C100~RFL-C2000S
13
3 Installation
3.1 Dimensions
The dimensions of Raycus CW fiber laser is divided into three types according to the laser
model, among which RFL-C100 ~ RFL-C750 laser dimension is the first type, RFL-1000 laser
dimension is the second type, RFL-C1500S and RFL-C200S laser dimension is the third type.
3.1.1 Dimension of RFL-C100~RFL-C750
Figure 3 shows dimensions of RFL-C100 ~ RFL-C750 (take RFL-C750 for example, other
models in the series have the same dimensions).

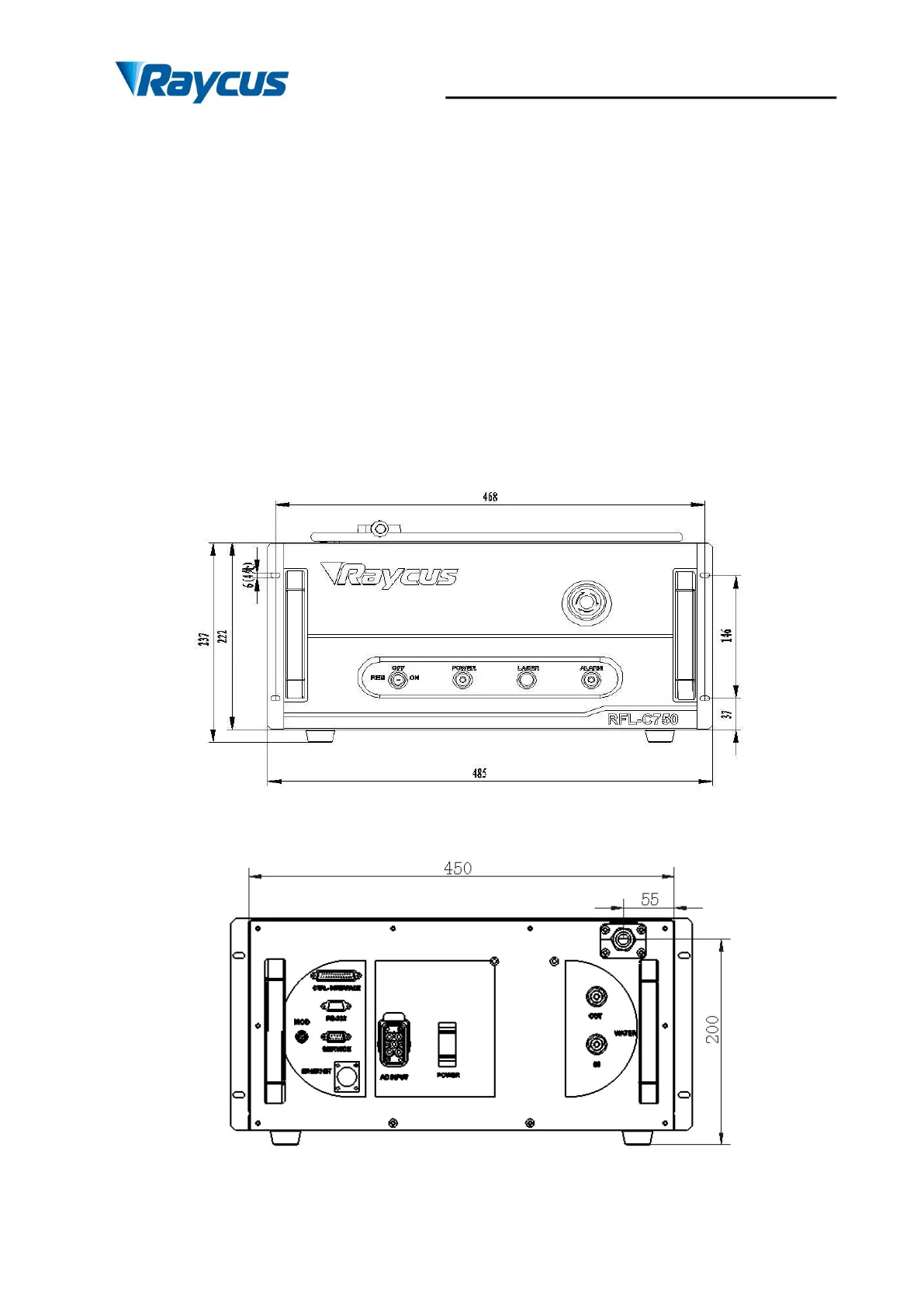

Figure 3 (a) Front panel view of RFL-C100 ~ RFL-C750 (unit: mm)
Figure 3 (b) Rear panel view of RFL-C100 ~ RFL-C750 (unit: mm)
